Product Details
- For 3/8" (10 mm) Thick Glass
- Deep Pocket Does Excellent Job of Securing Fixed Panels of Glass
- Use Monolithic Tempered Glass
- May Be Used Alone or with Regular Depth U-Channel
- Choice of Deep or Regular Styles
- Wet Glazed with Clear Silicone to Secure Glass
- All Available in Popular 95" (2.41 m) Lengths, Some Available in Economical 144" (3.66 m) Stock Lengths
- End Caps Offered to Conceal Ends of Channel
- Available in Up to Seventeen Finishes

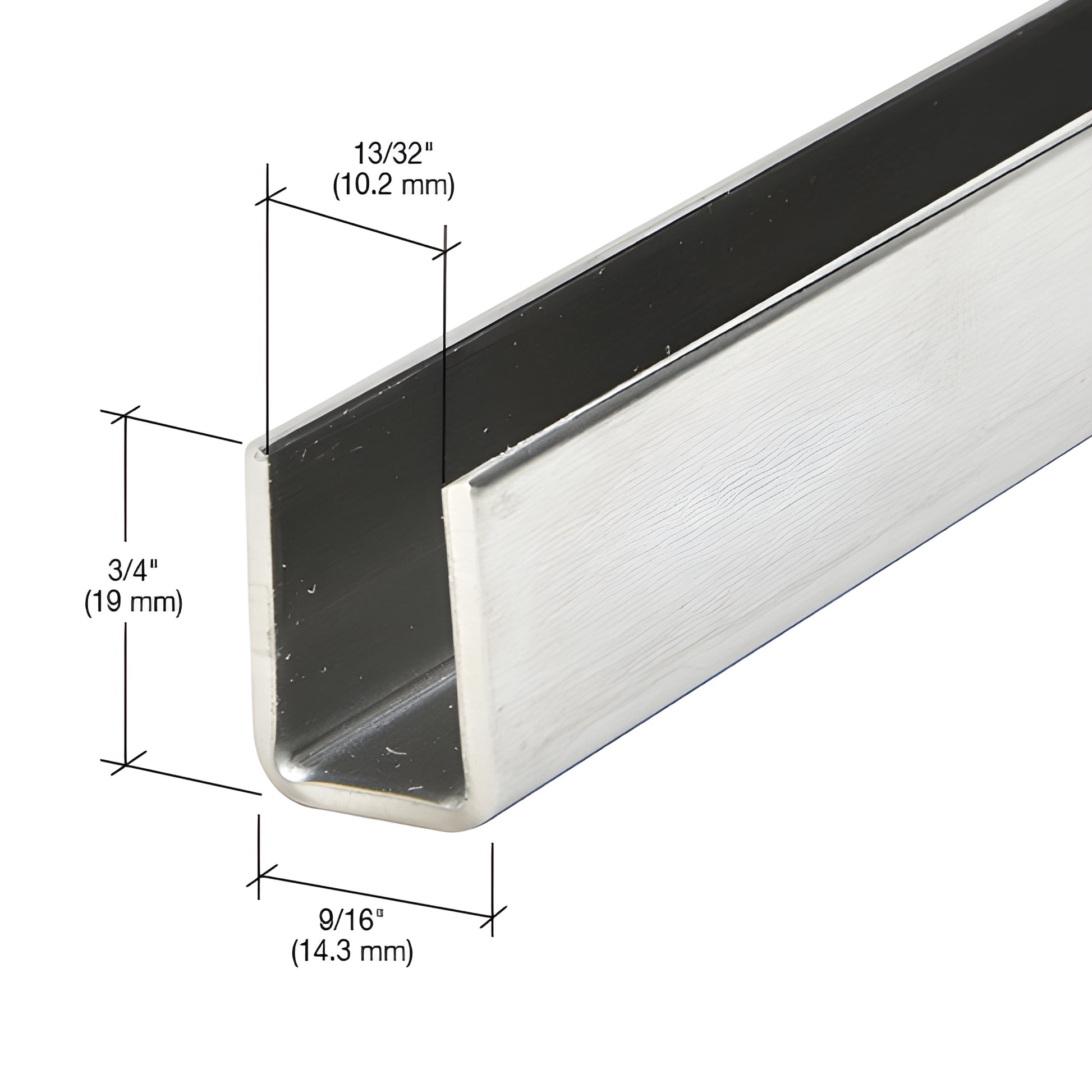

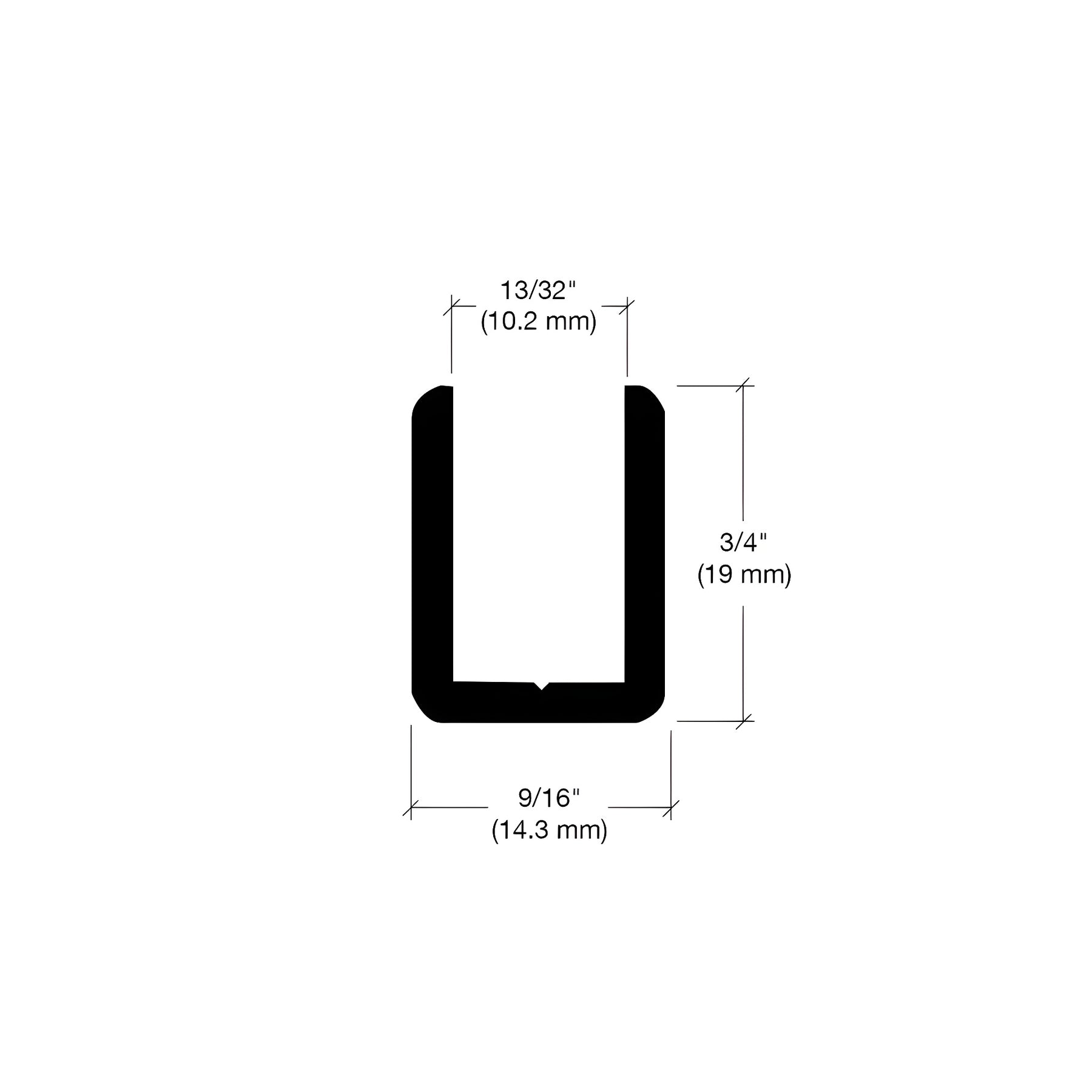

Deep U-Channel is for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" (10 mm) thick glass are available, and are individually wrapped to protect the finish. This 3/4" (19 mm) high profile Deep U-Channel can be used as the top channel in installations where the glass must be inserted into the top, then lowered into the 3/8" (10 mm) tall Regular U-Channel used at the bottom of the enclosure.
We offer two profiles of Aluminum U-Channels for shower door installations. Fixed Panel Regular and Deep U-Channels are for securing fixed panels of glass to the wall, ceiling or floor. Widths suitable for 3/8" or 1/2" (10 or 12 mm) glass are available in each style, and are individually wrapped to protect the finish.
SPECIFICATIONS:
Typical Uses: Most commonly used in frameless shower installations for securing fixed panels of glass to the wall, ceiling or floor.
Construction : Made of 316 Stainless Steel
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
