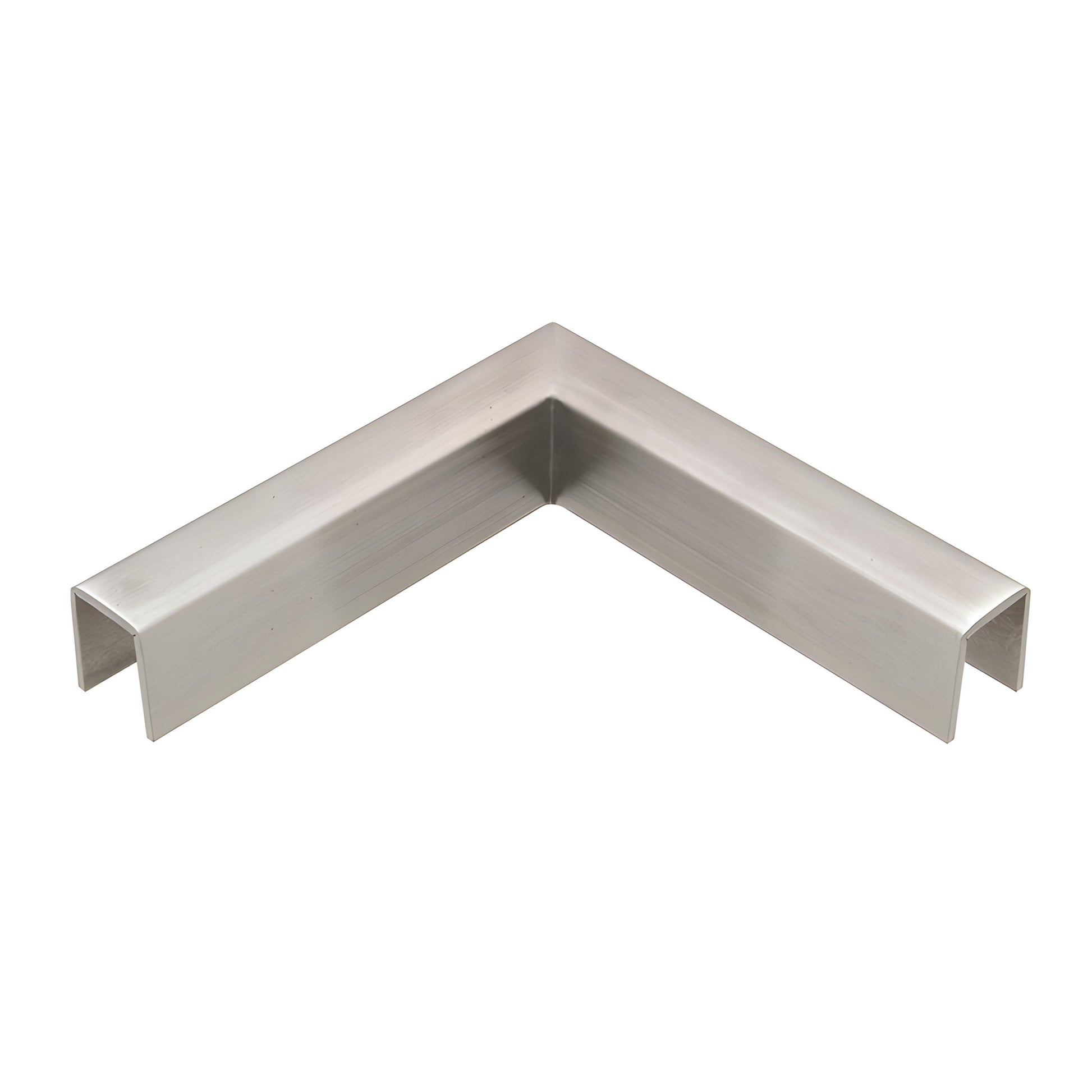

CRL 316 Brushed Stainless 90° Cap Rail Corner for 11-Gauge
CRL 316 Brushed Stainless 90° Cap Rail Corner for 11-Gauge
Regular price
$378.62 CAD
Regular price
Sale price
$378.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRLC10HBS6
Shipping Weight: 1.355 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.355 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Angle
90
Finish/Color
Brushed Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Material
Stainless Steel
Overview
- Two profiles for 1/2" (12 mm) or 5/8" (16 mm) glass
- Two finishes available
- Welded and finished
- Ready-to-install
CRL Slip-Fit 90 Degree Horizontal Corners provide hairline joint assemblies for straight lengths of CRL 11 Gauge Cap Railing, compatible with 1/2" (12 mm) or 5/8" (16 mm) thick glass. These slip-fit corners are designed for glass railing systems and other architectural glass applications where a clean, minimal joint is required. Use Cat. No. 32629 Metal Contact Cement to achieve a secure, permanent bond. Two connector sleeves are required with each corner. Standard stainless alloy is 304; 316 stainless is available by special order.
NOTE: When used with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl and 95CBL Silicone to secure the glass. For 5/8" (16 mm) glass, use 95CBL Silicone and shims only.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: GRLC10HBS6
Order the CRL Slip-Fit 90 Degree Horizontal Corners for clean, durable glass railing corners—contact us or add to cart to get started.
