CRL 316 Brushed Stainless Steel Handrail Adapter – Adjustable Top
CRL 316 Brushed Stainless Steel Handrail Adapter – Adjustable Top
Regular price
$83.06 CAD
Regular price
Sale price
$83.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CR15TAABS
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Degree
90
Diameter
1.66 in., 2 in., 2-1/2 in., 3 in., 3-1/2 in., 4 in. (42 mm, 51 mm, 64 mm, 76 mm, 89 mm, 102 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Overview
- Adjustable angle for use on any stair or ramp — fits sloped top rail applications
- Provides secure attachment of cap rails to vertical posts
- Available in Brushed or Polished 316 Stainless Steel finishes
- Made from Alloy 316 stainless steel for corrosion resistance
- Ready-to-install top rail adapter
- U.S. Patent 8,944,414 B2

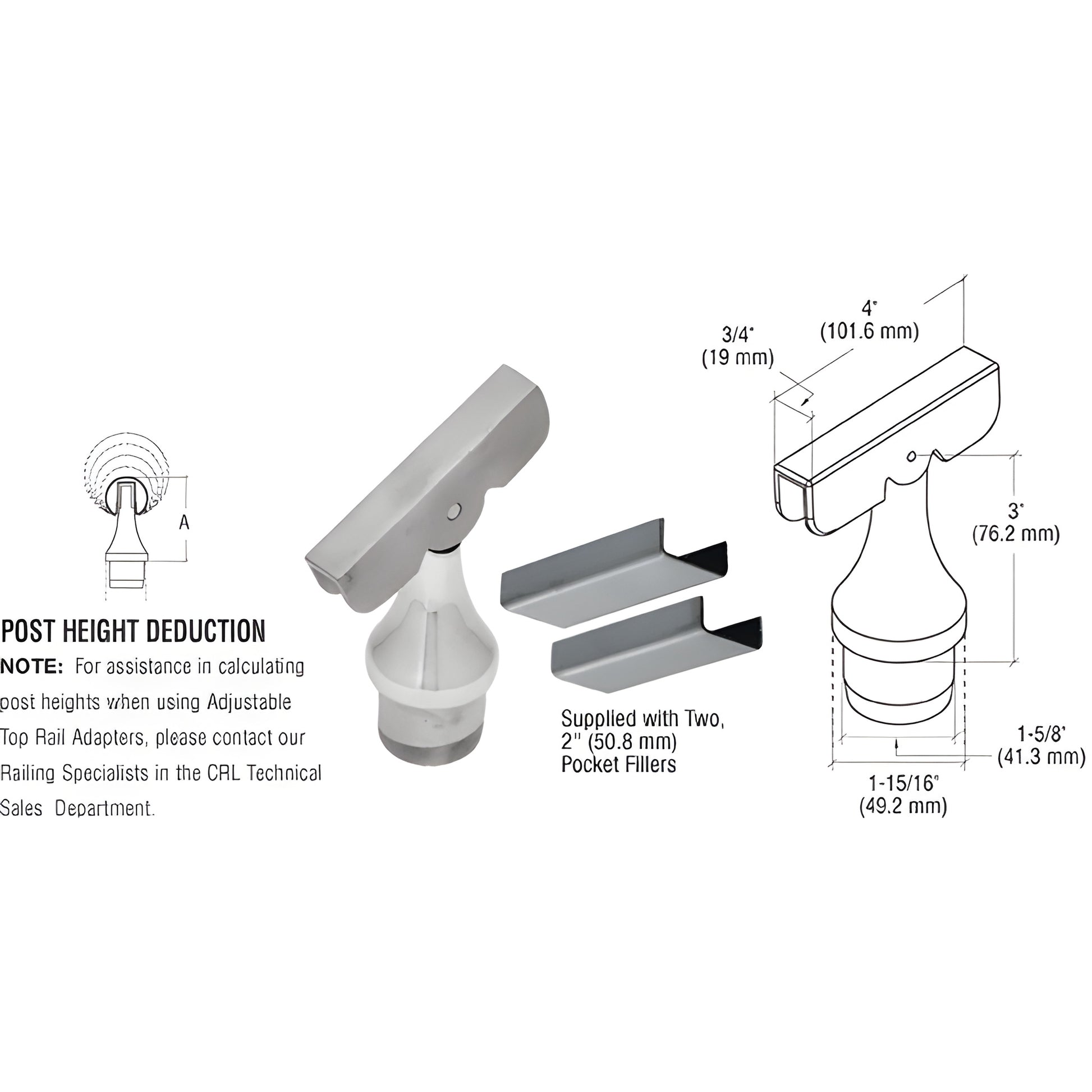

CRS Top Rail Adapters slip into 1-1/2" (38 mm) Schedule 40 stainless steel posts to attach 2" to 4" (51 to 102 mm) diameter cap railing. The adapter adjusts to match stair or ramp slope for a precise fit — ideal for adjustable top rail adapters for stainless steel posts in commercial and residential stair railing projects. For a secure, permanent bond use Cat. No. 32629 Metal Contact Cement.
NOTE: Supplied with two 2" (51 mm) pocket fillers.
SKU: CR15TAABS
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.
Ordering: Choose Brushed or Polished finish and add to cart to get the adjustable top rail adapter for stairs and ramps — ready to install.
Specifications
CAD Drawings - dwg
