CRL P1 Series 316 Brushed Stainless Steel 90° Corner Post Railing Kit
CRL P1 Series 316 Brushed Stainless Steel 90° Corner Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136LBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
90
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
36 in. (914 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder coat finishes available

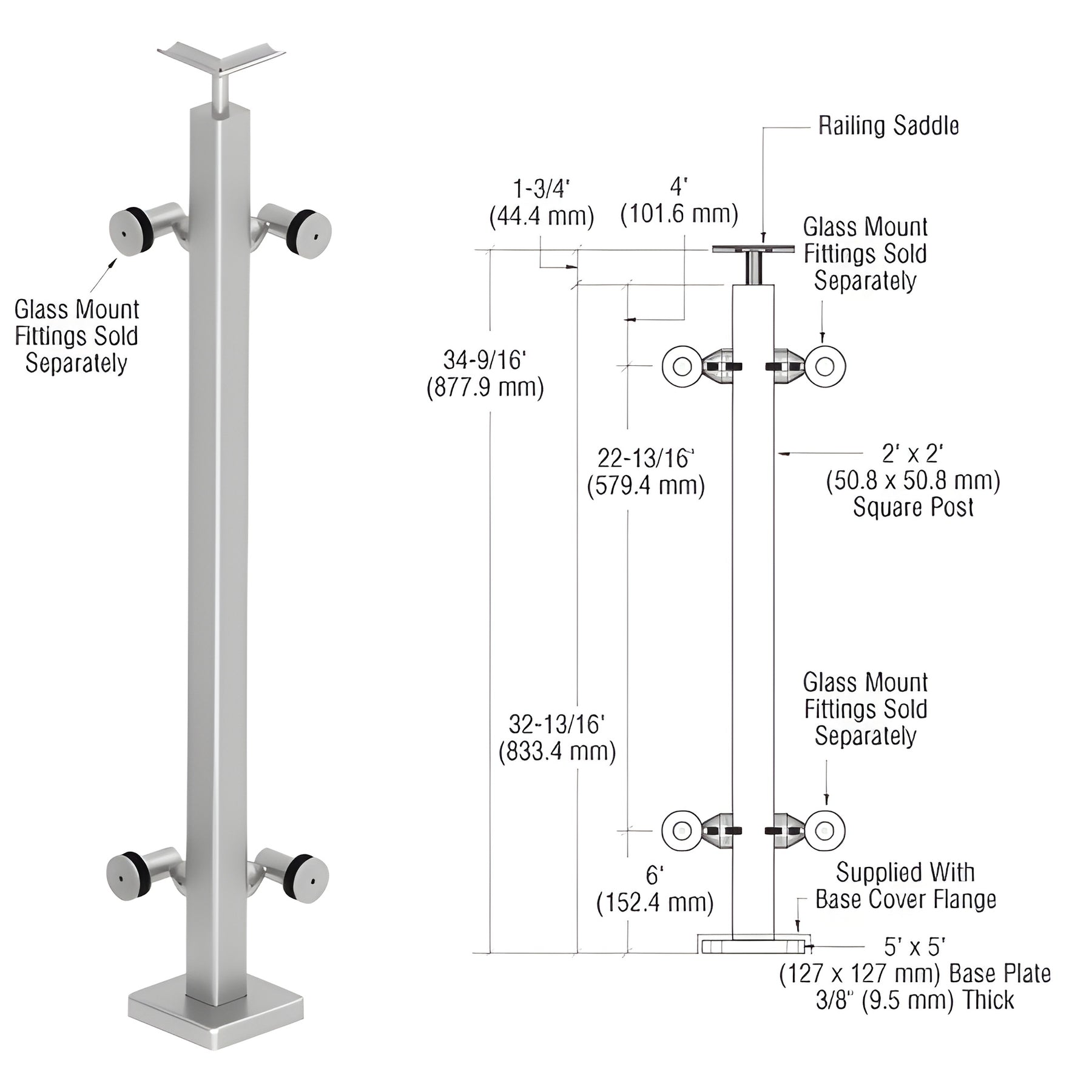

CRL P1 Post Railing Kits (SKU: P136LBSC) are engineered for commercial and residential guard and hand rail applications requiring a surface-mounted stainless steel railing post. These P1 Surface Mounted Post Railing Kits are fabricated from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for enhanced durability and corrosion resistance in architectural glass railing systems. Kits include a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle. For top rail attachment screws, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Designed for architectural glass railing applications, this P1 surface-mounted 316 stainless post offers code-compliant strength and customizable finishes—ideal for commercial and residential glass balustrades. Contact CRL to configure custom heights or finishes and to order compatible glass attachment fittings.
