CRL Laguna 316 Brushed Stainless Double Roller Sliding Glass Door Kit

• Intended for glass mounting in all-glass single-slider openings
• New anti-lift double roller design for secure top-mounted sliding doors
• Alloy 316 stainless steel construction for corrosion resistance
• Includes all hardware for installation with 3/8" or 1/2" (10 or 12 mm) tempered glass
• Spanner wrench for installation sold separately

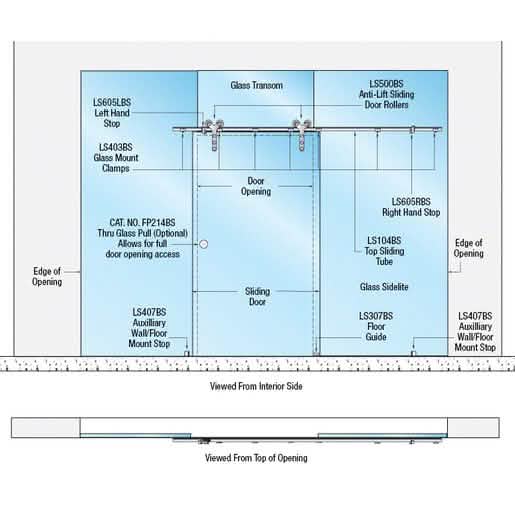

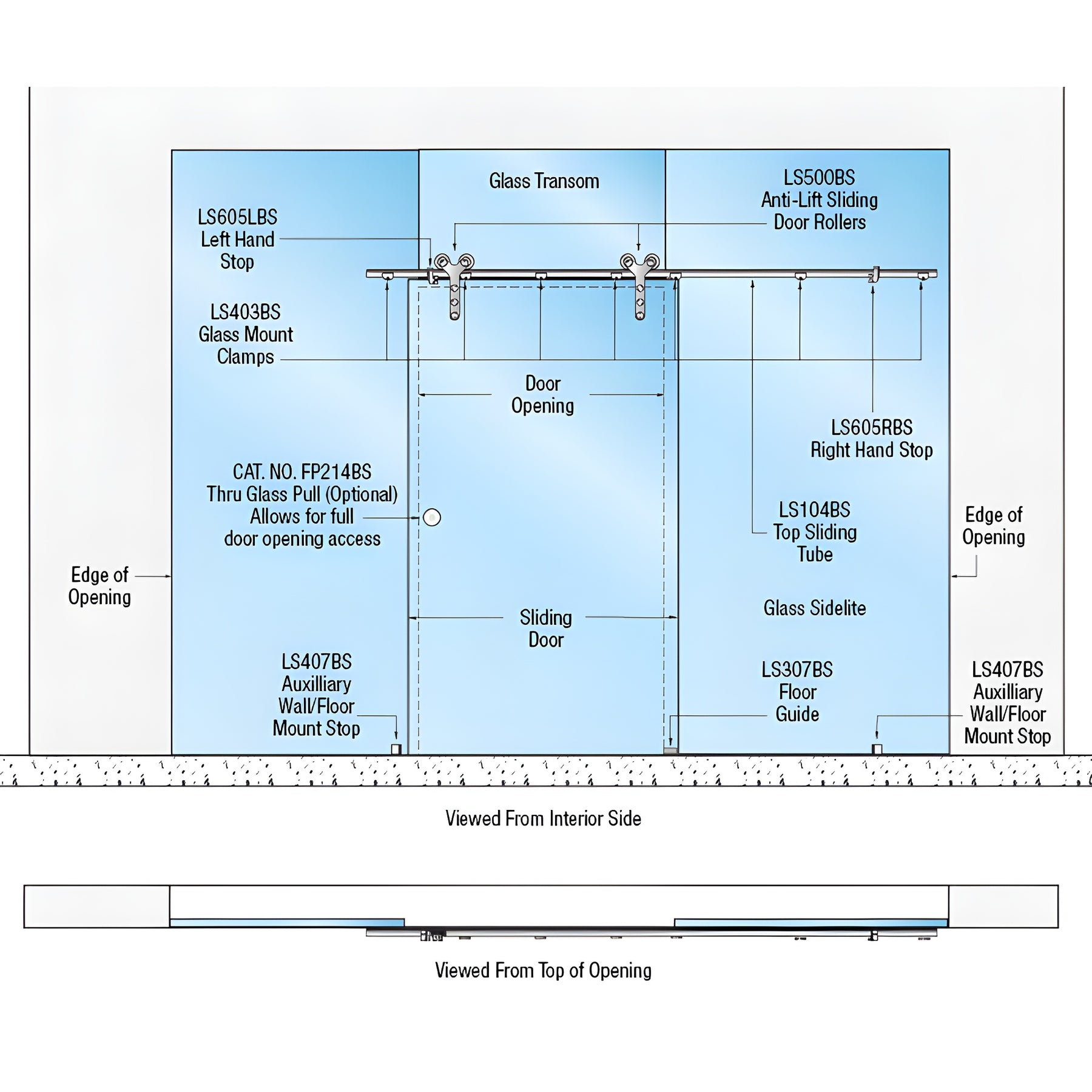

CRL Double Roller Laguna Series Glass Mount Single Slider Kit (SKU: LSGM26BS) contains the components needed (except tempered glass) to install a single sliding door in an all-glass opening with a wall at one end, a glass transom above, and a fixed glass panel at the opposite side.

The anti-lift sliding door top rollers attach to glass using either surface mount or flush mount fittings (both supplied). Rollers provide 1/8" (3.2 mm) vertical adjustment for fine door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass. Laminated glass is not permitted.

Complete glass fabrication details and drawings are available from our Technical Sales Department.

DOOR SYSTEM LIMITATIONS:

• Maximum Door Weight: 220 lbs (100 kg)
• Minimum Door Width: 37-13/16" (960 mm)
• Maximum Door Width: 53-9/16" (1.36 m)
• Maximum Door Height: 98-7/16" (2.50 m)
• Maximum Track Length: 104" (2.64 m)

NOTE: Bi-parting double doors are not possible for this application.

EACH KIT CONTAINS:

• Two CRL Laguna Series anti-lift top rollers with glass fittings
• One CRL Laguna Series top sliding tube with end caps — 104" (2.64 m) length
• One top sliding tube wall mount end cap (fastener to wall not included)
• Six top sliding tube glass mount clamps
• Two door stops (one left-hand and one right-hand)
• One bottom floor guide

Product Warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to verify suitability for intended use and site conditions. Installers must be qualified and ensure compliance with local, state, and federal regulations, safety factors, and proper selection of fixing materials and procedures.
