CRL Laguna 316 Stainless Double Roller Bi-Parting Sliding Door Kit
CRL Laguna 316 Stainless Double Roller Bi-Parting Sliding Door Kit
Regular price
$3,285.34 CAD
Regular price
Sale price
$3,285.34 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LSWM26BS
Shipping Weight: 28.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 28.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Anti-Lift
Yes
Door Attachment
Surface
Door Configuration
Double Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Glazing Type
Tempered Monolithic
Material
316 Stainless Steel
Maximum Door Height
98-7/16 in. (2500 mm)
Maximum Panel Weight
220 lbs. (100 kg)
Minimum Door Width
37-13/16 in. (960 mm)
Mounting Application
Wall
Self-Closing
No
Track Diameter
1-1/4 in. (32 mm)
Track Length
104 in. (2642 mm)
Overview
- Intended for wall mounting — bi-parting sliding door kit (SKU: LSWM26BS)
- Improved anti-lift double roller design for smooth, secure operation
- Alloy 316 stainless steel construction for enhanced corrosion resistance
- Includes surface and flush mount fittings, adjustable rollers, and hardware for 3/8" or 1/2" (10 or 12 mm) tempered glass
- Spanner wrench for installation sold separately

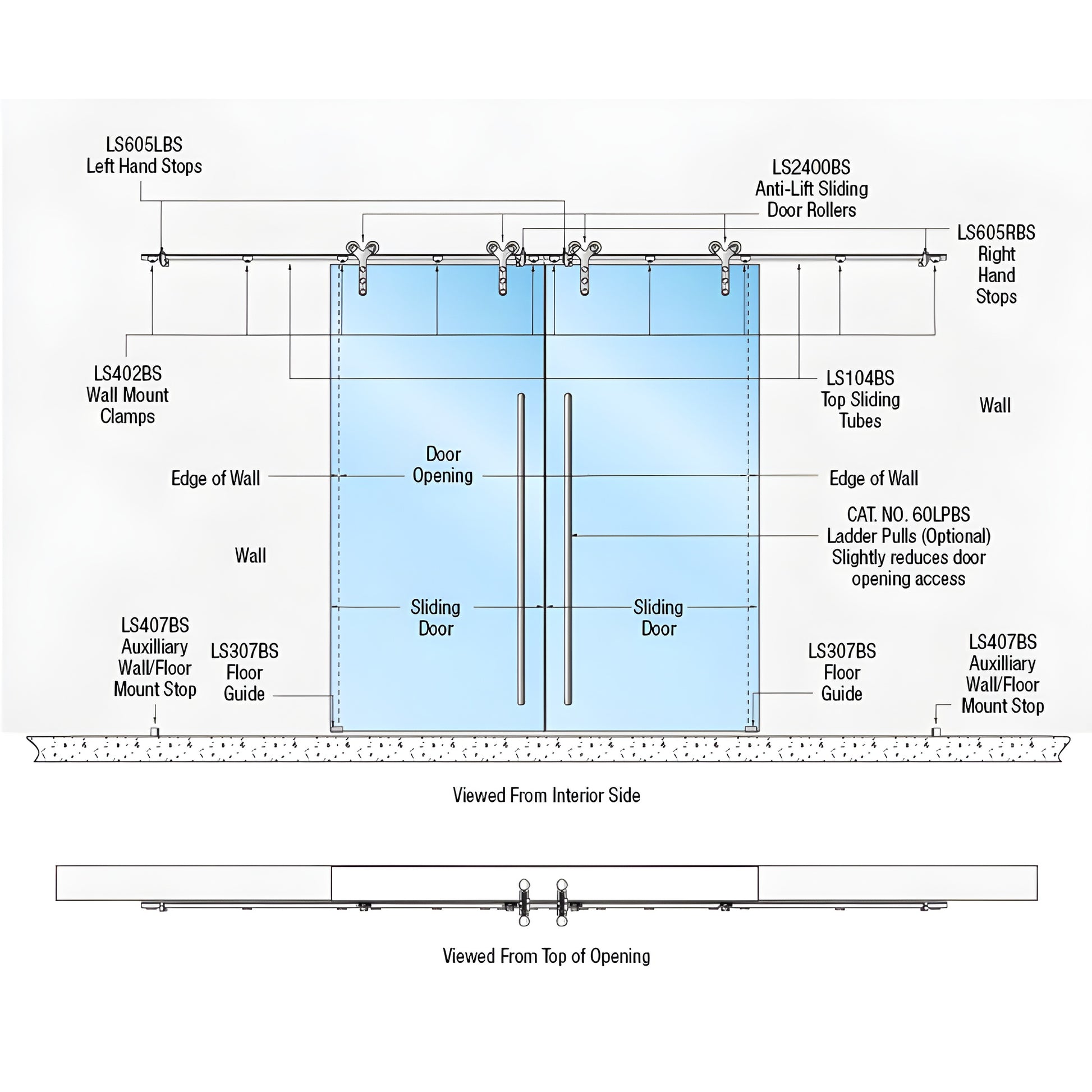

The CRL Double Roller Laguna Series Wall Mount Bi-Parting Slider Kit contains all required components (except tempered glass) for mounting two bi-parting sliding doors to the inside face of a reinforced wall. Ideal for commercial and residential interior applications requiring a corrosion-resistant, high-quality wall mount sliding door system.
The anti-lift top rollers attach to glass with either surface mount or flush mount fittings (both supplied). Rollers provide 1/8" (3 mm) vertical adjustment to aid door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass; laminated glass is not compatible.
DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 Lbs. (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)
Product Warning:
STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm suitability for site conditions. Installers must be qualified and comply with local regulations, safety factors, and proper fixing materials and procedures.
Stainless Steel Advisory:
Alloy 316 stainless steel is corrosion-resistant but not impervious to staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Durable 316 stainless construction + anti-lift double rollers make this wall mount bi-parting slider kit (LSWM26BS) a premium choice for long-lasting, secure sliding glass door installations. Order now or contact CRL for technical assistance.
