CRL 316 Brushed SS Dual-Pivot Glass Shower Wall/Floor Swivel Fitting
Item# SGF61BGW
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.8 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
1-1/4 in. (31.8 mm)
Material
316 Stainless Steel
Width
2-9/16 in. (65.1 mm)
- Available in six configurations for surface-mount or flush-mount glass attachments (attachments sold separately)
- Alloy 316 brushed stainless steel finish
- Fits 3/8" to 1/2" (10 to 12 mm) glass panels
CRL Dual Pivot Glass-to-Wall/Floor Swivel Fitting (SKU: SGF61BGW) is a compact, easy-install solution for connecting glass panels at variable angles. The Column Series single pivot design accepts either a Surface Mount Glass Attachment Cap or a Flush Mount Glass Attachment Cap, providing flexibility for frameless glass partitions, shower enclosures, and architectural glass applications. Accommodates 3/8" to 1/2" (10–12 mm) glass; an optional 3-15/16" (100 mm) link is available for special layouts. Brushed Alloy 316 stainless steel construction offers enhanced corrosion resistance for interior and exterior installations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to completing your order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Order the CRL Dual Pivot Swivel Fitting SGF61BGW today to streamline frameless glass installations.

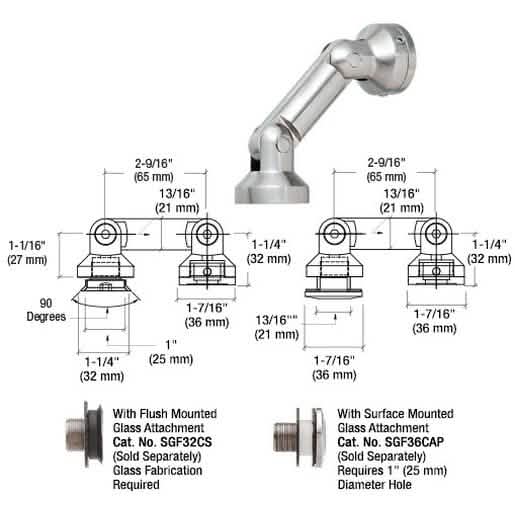

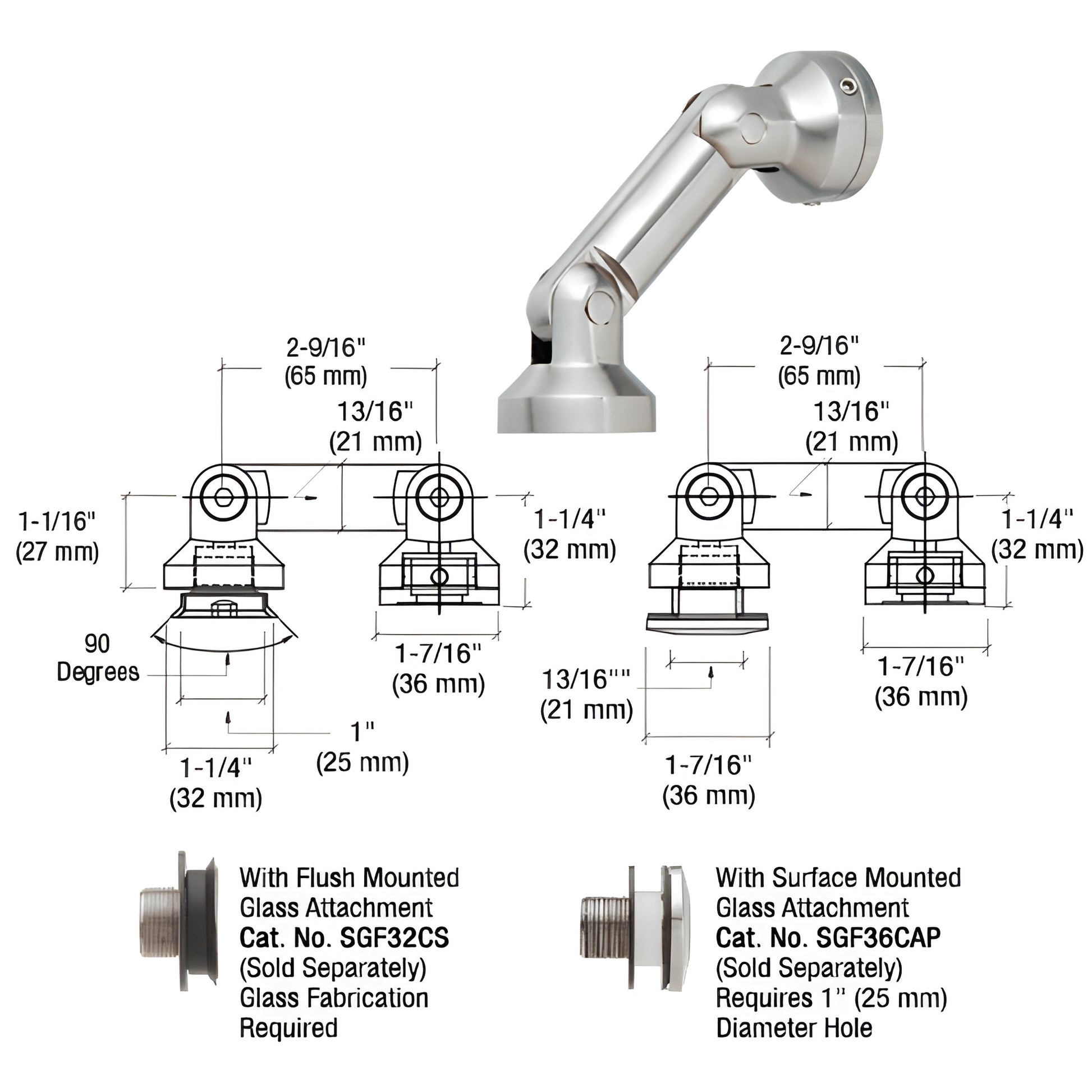

CAD Drawings - dwg
