- Complete hardware system for 9/16" (14 mm) tempered laminated glass awnings (SKU: GAS190BS)
- Provides weather protection without obstructing views
- Adjustable slope for most weather conditions
- All high-grade 316 alloy stainless steel components for panels up to 48" (1.22 m) wide and 72" (1.83 m) long
- Easy installation for an economical, elegant solution in commercial and residential applications
- Warning: Glass panels and connecting rods not included.
The
CRL Glass Awning Support System (GAS190BS) delivers a clean, graceful canopy solution for entrances, using 9/16" tempered laminated glass to offer color, texture, and special-effect options not possible with monolithic glass. Ideal as a glass awning support system for both commercial and residential projects, it enhances building design while maintaining clear sightlines.

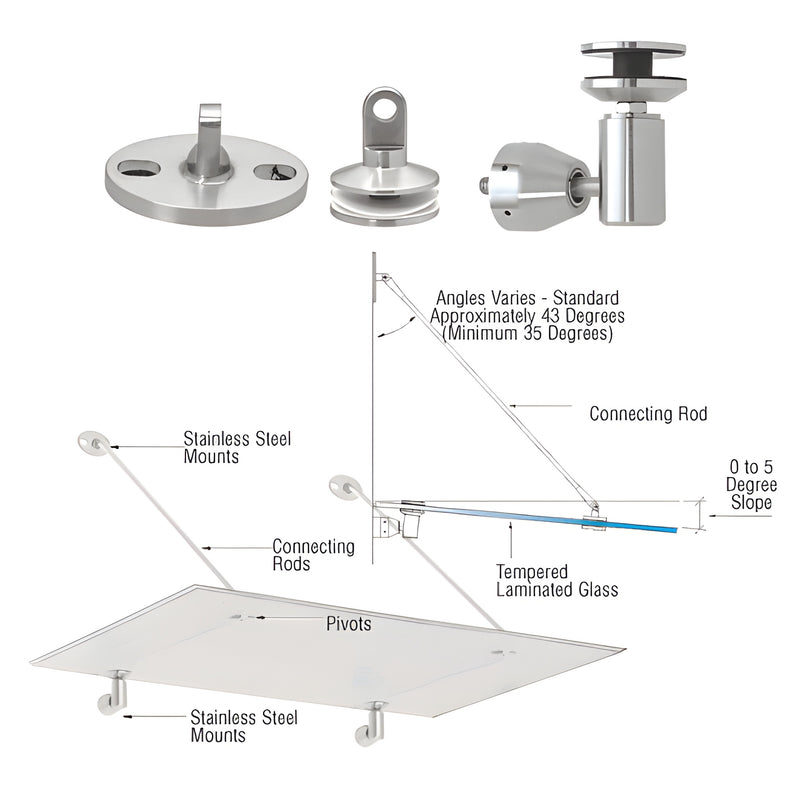

Eye-and-fork connections and adjustable connecting rods speed installation and allow field adjustments for varying site conditions. All fittings are precision 316 alloy stainless steel for long-lasting corrosion resistance in harsh environments—making this a reliable 316 stainless steel glass awning hardware choice.
For additional information, contact CRL Architectural and Ornamental Metals Technical Sales Department.
SPECIFICATIONS: Material: All 316 alloy stainless steel construction.
Typical Panel: 9/16" (14 mm) tempered laminated glass (1/4" (6 mm) tempered glass + .060" (1.5 mm) interlayer + 1/4" (6 mm) tempered glass).
Glass Fabrication Required: Two 5/8" (16 mm) and two 1-1/16" (27 mm) diameter holes per panel.

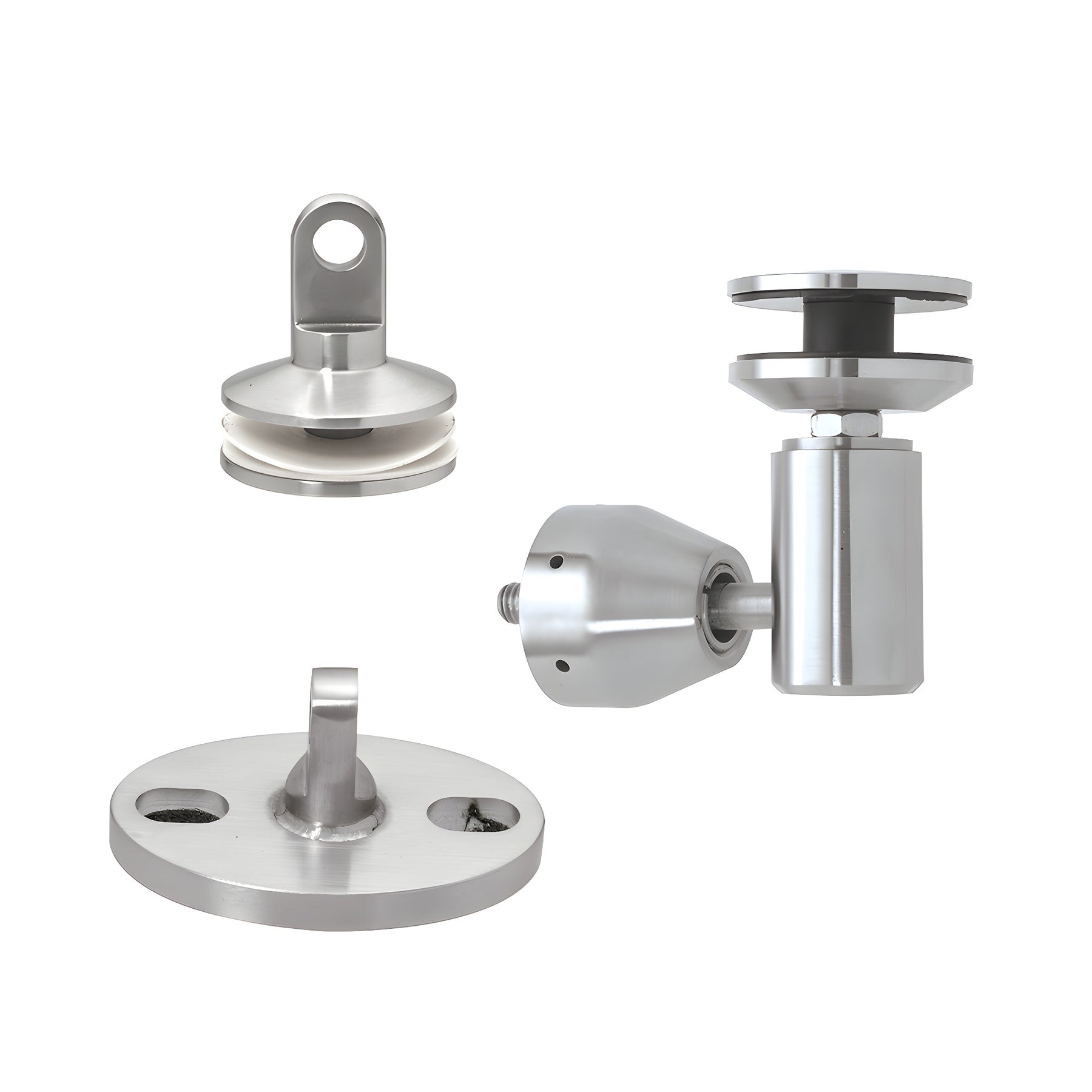

Ordering Tip: Sold individually; two connecting rods and two mounting kits are required per panel.
Product Warning:Glass panels are not included.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs before ordering, please request this from CRL Customer Service. Product images are of the actual product or a close representation; colors can vary by monitor and video card settings.
