CRL 316 Stainless Steel Brushed Glass-to-Glass Swivel Fitting
Item# SGF67BGG
Shipping Weight: 1.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
1-1/4 in. (31.8 mm)
Material
316 Stainless Steel
Width
2-9/16 in. (65.1 mm)
- Available in several configurations for either surface or flush glass attachments (caps sold separately)
- Alloy 316 brushed stainless finish—marine-grade corrosion resistance
- Fits 3/8" to 1/2" (10 to 12 mm) glass
- SKU: SGF67BGG

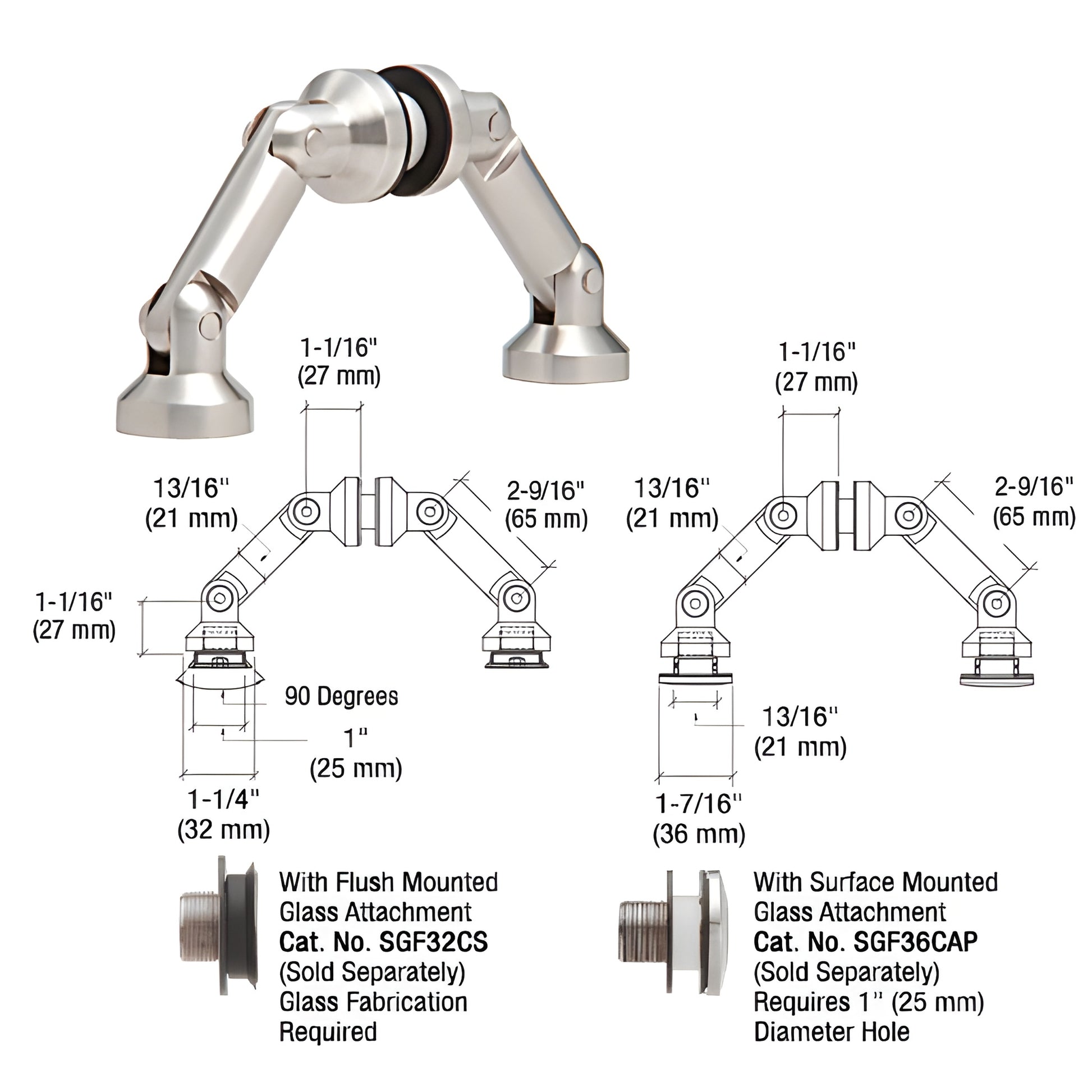

CRL Glass Fin-to-Glass Swivel Fitting are engineered to connect glass panels at varying angles with a compact swivel joint. The single Column Swivel Fitting accepts either a Surface Mount Glass Attachment Cap or a Flush Mount Glass Attachment Cap (sold separately). All Column Series Swivel Fittings accommodate 3/8" to 1/2" (10–12 mm) glass; an optional 3-15/16" (100 mm) link is available for specialized glass railing, balustrade, or partition applications. The simple, low-profile design enables quick, tool-friendly installation and reliable performance in interior and exterior glass installations.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For more information, view the Stainless Steel Disclaimer in the Technical References section below.
Order the SGF67BGG glass fin-to-glass swivel fitting today to streamline your glass railing or partition installation.
