CRL 316 Brushed Stainless Glass-to-Glass Single Pivot Swivel Hinge
CRL 316 Brushed Stainless Glass-to-Glass Single Pivot Swivel Hinge
Regular price
$41.45 CAD
Regular price
Sale price
$41.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGF42BGG
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
1-7/8 in. (47.6 mm)
Material
316 Stainless Steel
Width
1-7/8 in. (47.6 mm)
Overview
- Alloy 316 brushed stainless finish
- For 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
- Use either surface or flush glass attachment caps (sold separately)
- Designed for glass-to-glass pivot connections

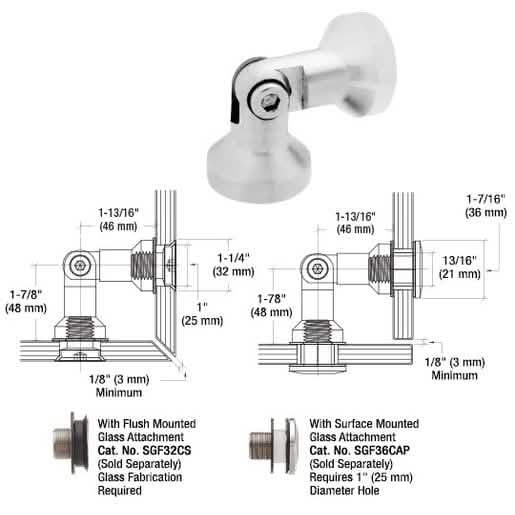

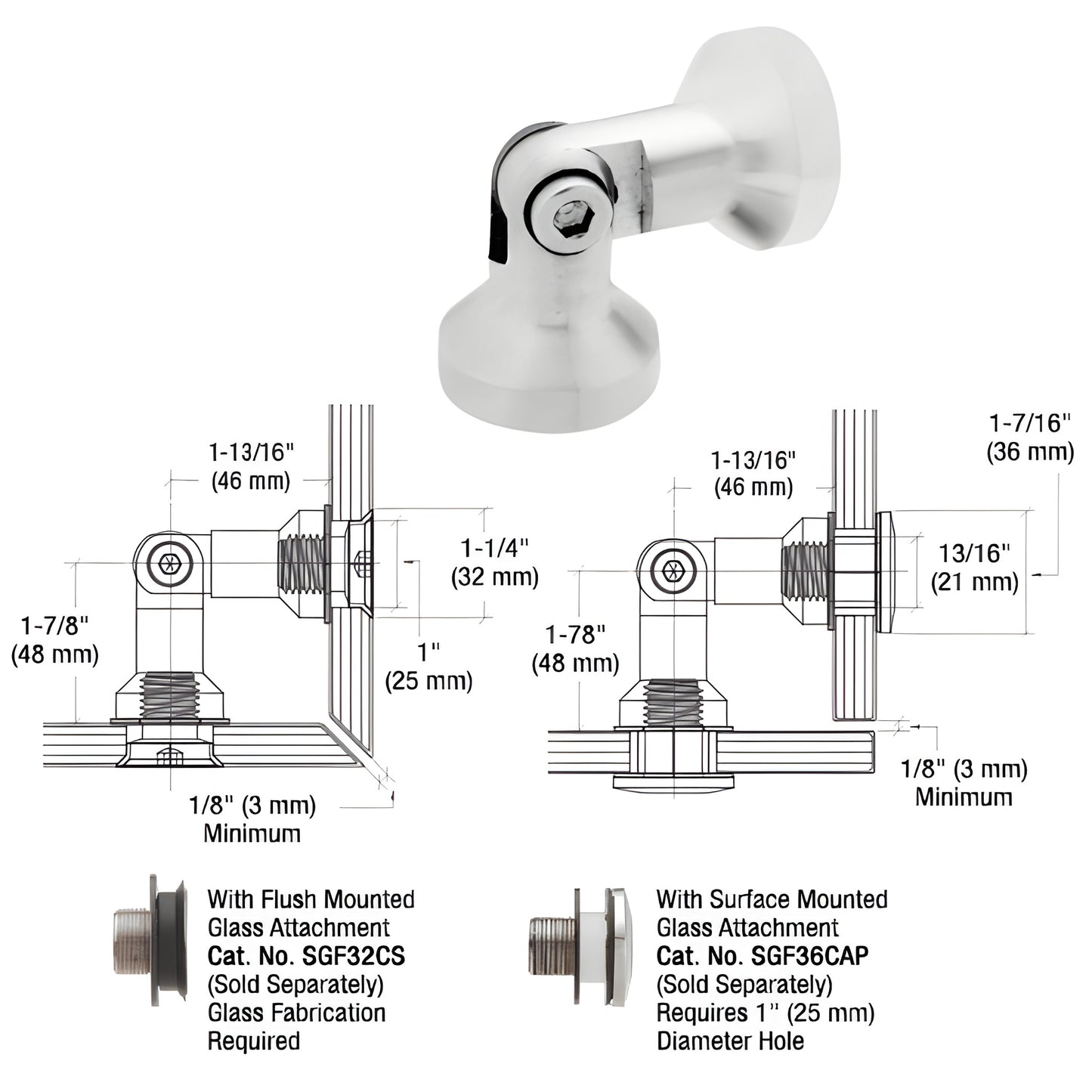

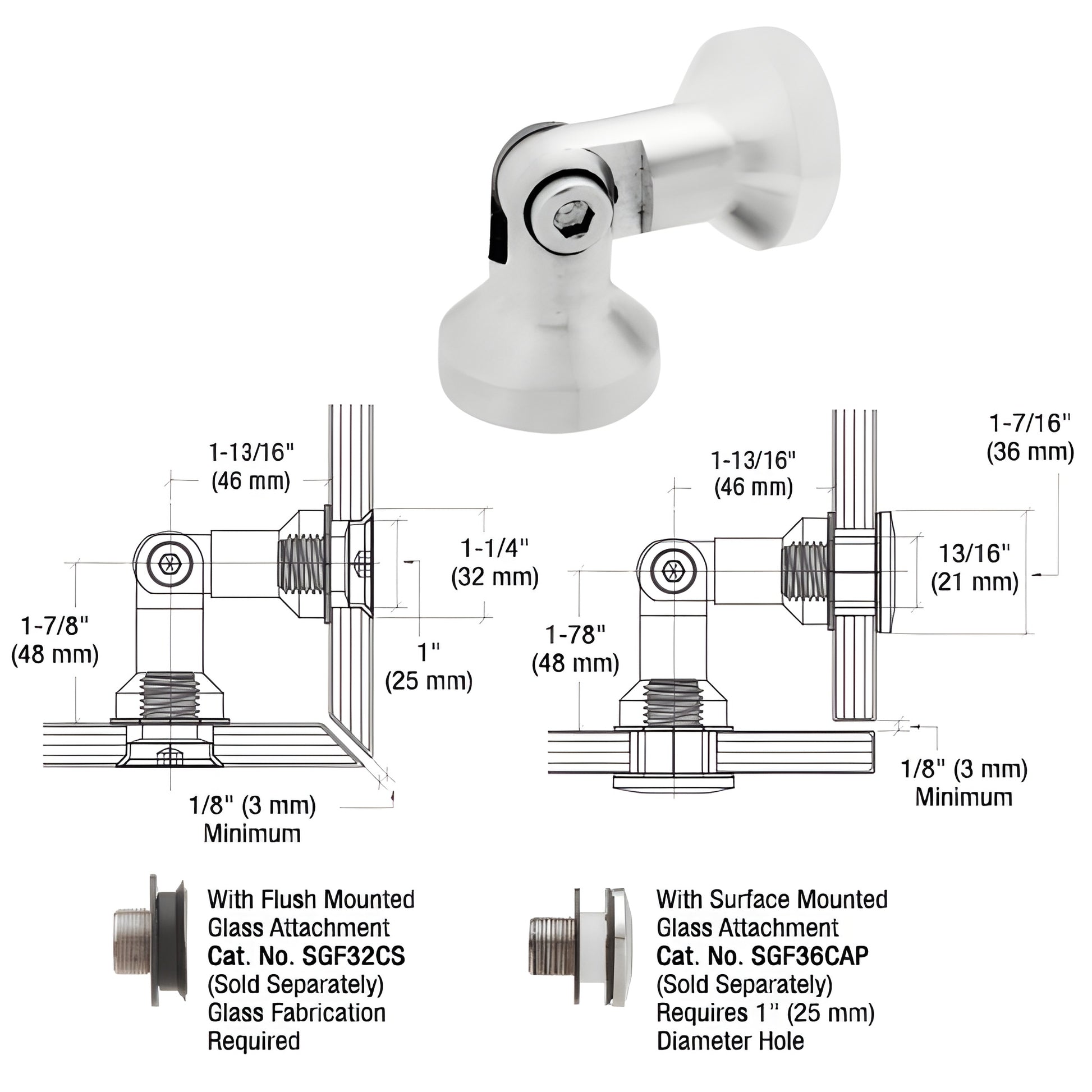

CRL Single Pivot Glass-to-Glass Swivel Fitting (SKU: SGF42BGG) provides a durable, corrosion-resistant solution for connecting frameless glass panels at variable angles. Made from marine-grade Alloy 316 with a brushed stainless finish, this single-column swivel fitting accepts either surface-mount or flush-mount glass attachment caps (caps sold separately) and fits monolithic tempered glass 3/8"–1/2" (10–12 mm). Its simple column design enables quick, straightforward installation—ideal for frameless shower doors, glass partitions, and other architectural glass hardware applications.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to rust or staining. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for care recommendations.
Shop now to add a high-quality 316 stainless pivot glass-to-glass swivel fitting to your frameless glass hardware project.
