Product Details
- Welded and Finished
- Ready-to-Install
- 316 Stainless Alloy

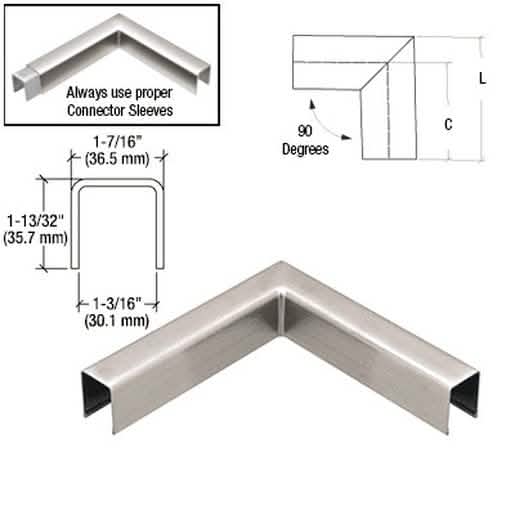

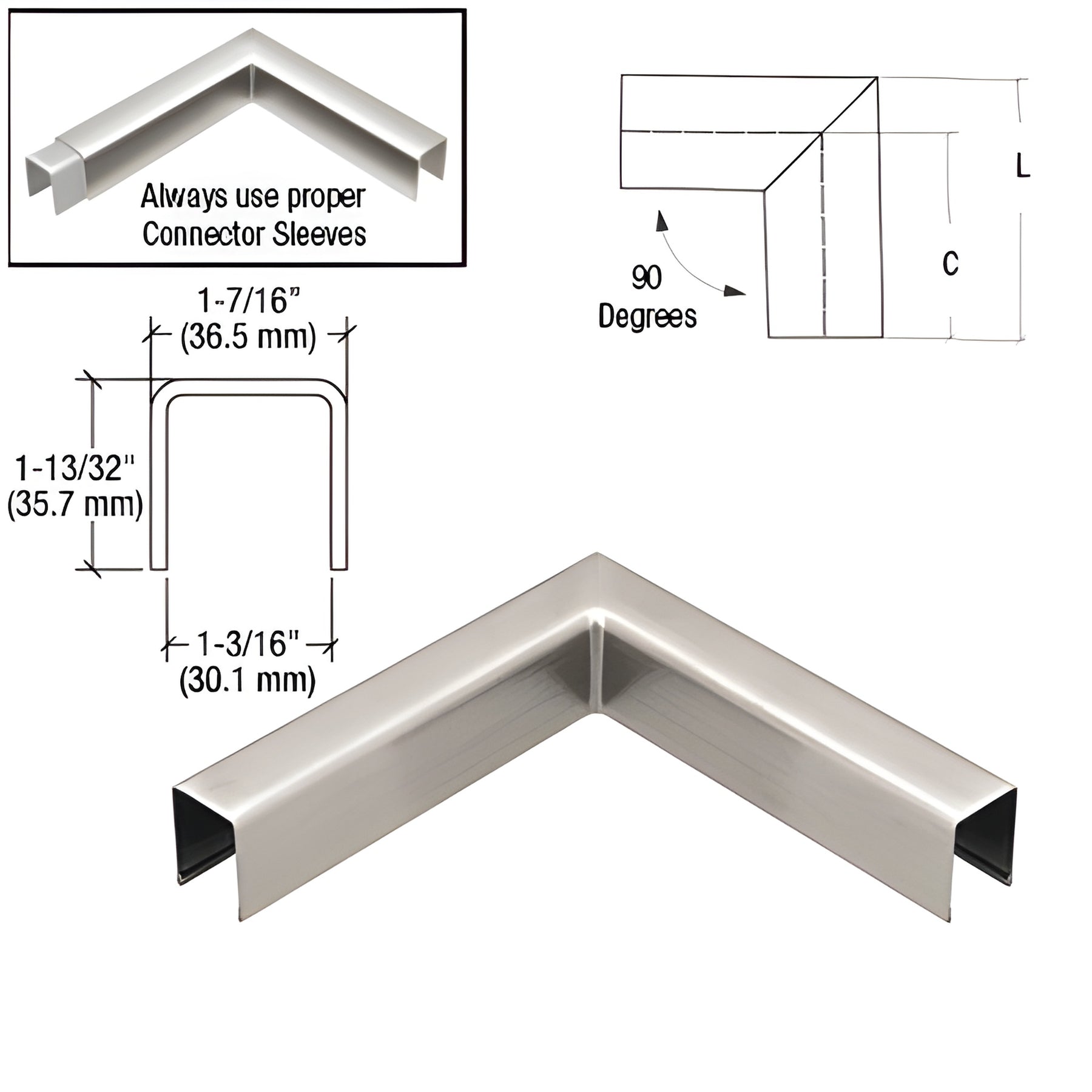

This CRL 90 Degree Horizontal Corner for 27/32" (21.52 mm) thick laminated glass allows for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to achieve a secure and permanent bond.
CRL's prefabricated 90 degree and 135 degree Horizontal Laminated U-Channel Cap Railing Corners eliminate time consuming field miter cutting and welding. Each Horizontal Corner is fabricated, finished, and individually packaged. Alloy 316 stainless steel is offered in two architectural finishes.
NOTE: When used with 27/32" (21.52 mm) glass, our LR21PV Cap Railing Rubber Insert and 95CBL Silicone should be used to secure the glass.
For more information contact CRL Railing Products Technical Sales Department.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
