CRL Laguna 316 Brushed Stainless Single Glass Sliding Shower Door Kit

• Improved anti-lift design for secure single sliding glass doors
• Assembly includes all necessary hardware for 3/8" or 1/2" (10 or 12 mm) tempered glass
• Alloy 316 stainless steel construction for corrosion resistance
• Spanner wrench for installation sold separately

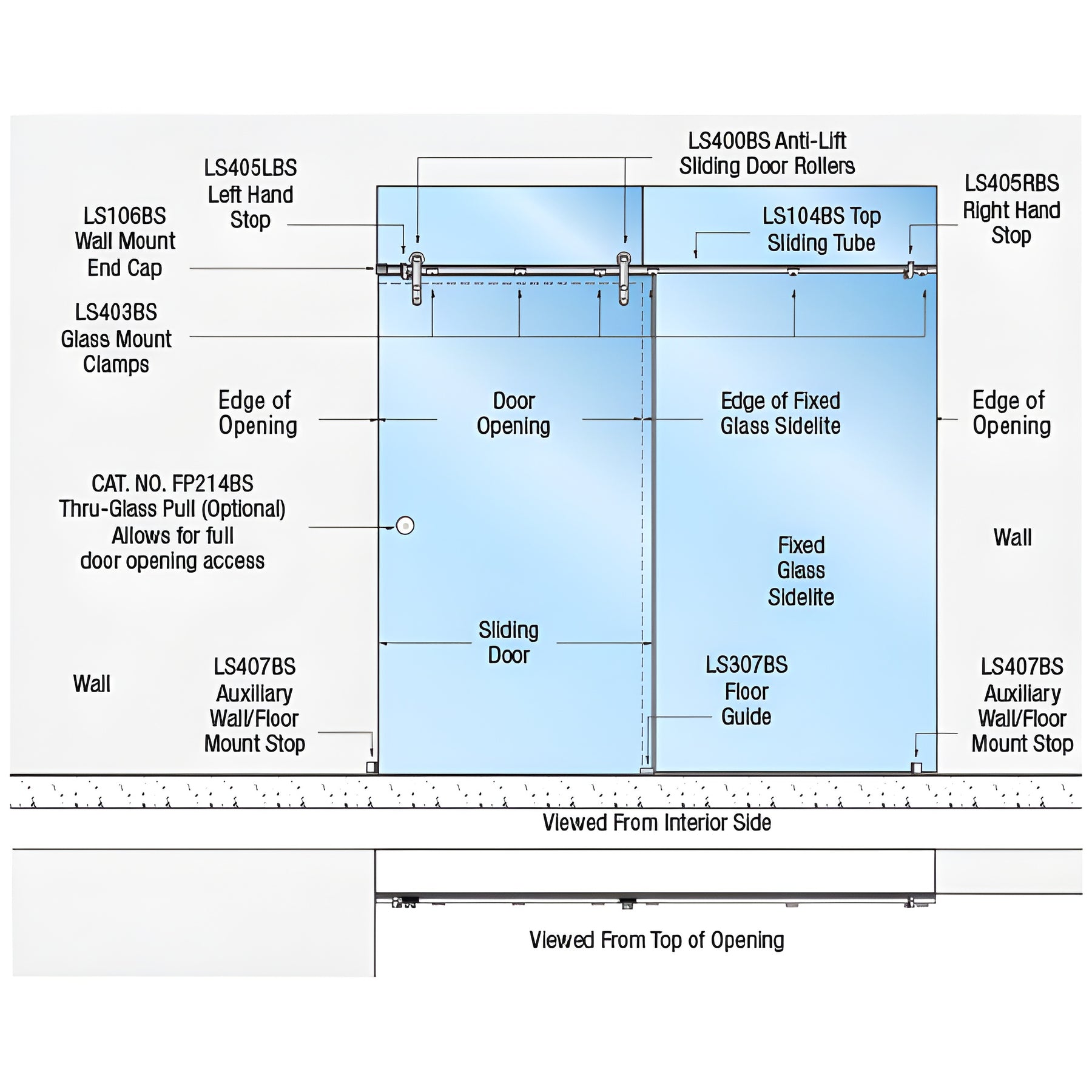

The CRL Laguna Series Glass Mount Single Slider Kit (SKU: LSGM5BS) provides the components needed—except the tempered glass—for an all-glass single sliding door opening. Ideal for installations with a wall at one end, a glass transom above, and a fixed glass panel on the opposite side. Bi-parting double doors are not supported.


NOTE: Bi-parting double doors are not possible for this application.

The anti-lift sliding door top rollers attach to glass using either surface mount or flush mount fittings (both included). Rollers offer 1/8" (3 mm) vertical adjustment for precise door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass—laminated glass is not permitted.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 lbs (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)


Product Warning:

STRUCTURAL DISCLAIMER – Customers must consult a structural engineer to confirm suitability for site conditions. Installers must be qualified and follow local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.

Stainless Steel Advisory:
