CRL 316 Brushed Stainless Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit

CRL 316 Brushed Stainless Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit

$3,217.10 CAD
$3,217.10 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# LSWM8BS
Shipping Weight: 41.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
View full details

Product Information

Description

Anti-Lift YesAttachment Flush, Surface
DoorConfiguration Double Door
Finish/ColorBrushed Stainless Steel
Glazing Thickness3/8 in. or 1/2 in. (10 mm or 12 mm)
GlazingType Tempered Monolithic
Material316 Stainless Steel
Maximum Door Height 98-7/16 in.(2500 mm)
Maximum Panel Weight 220 lbs.(100 kg)
Minimum Door Width 37-13/16 in.(960 mm)
MountingApplication Wall
Track Diameter 1-1/4 in.(32 mm)
Track Length 104 in.(2642 mm)

Overview

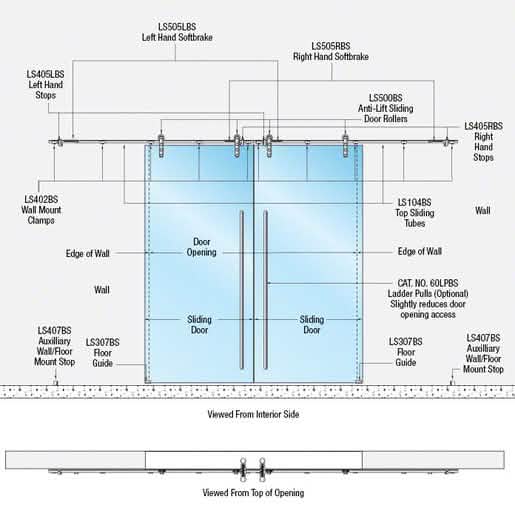

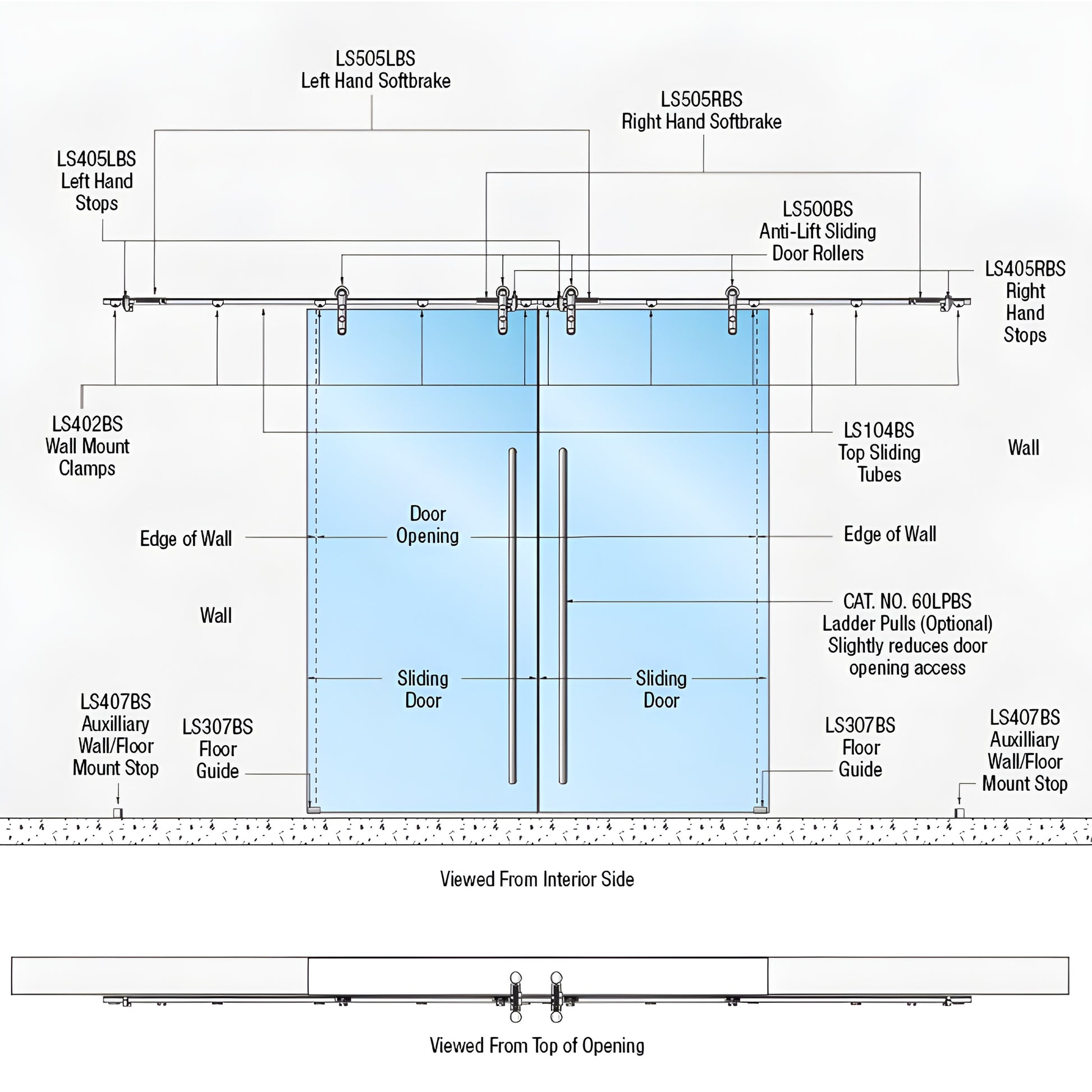

The CRL Laguna Series Wall Mount Bi-Parting Slider with Softbrake Kit is a comprehensive solution for installing bi-parting sliding doors, excluding tempered glass.
This system features a Softbrake braking mechanism for controlled door movement and an improved anti-lift design.
Constructed from durable Alloy 316 stainless steel, it includes all necessary hardware for installation with 3/8" or 1/2" tempered glass.
Note that the spanner wrench for installation is sold separately.
Ideal for reinforced walls, the system's top rollers offer adjustable mounting options and are designed exclusively for tempered, not laminated, glass.
Ensure compliance with structural guidelines by consulting a structural engineer before installation.
For further information, refer to the Stainless Steel Disclaimer in the Technical References section.
