CRL 316 Brushed Stainless Short-Arm Glass-Mounted Handrail Bracket
CRL 316 Brushed Stainless Short-Arm Glass-Mounted Handrail Bracket
Regular price
$68.19 CAD
Regular price
Sale price
$68.19 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HR3EGBS
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.96 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Centerline Width Projection
2-1/4 in. (57 mm)
Finish/Color
Brushed Stainless Steel
Material
316 Stainless Steel
Overview
- Two sizes available: Long Arm and Short Arm
- Fits 1-1/2" to 2" (38 to 51 mm) diameter handrail tubing
- For 1/2" to 1-1/16" (12 to 25.52 mm) glass
- 316 grade stainless steel — marine-grade corrosion resistance

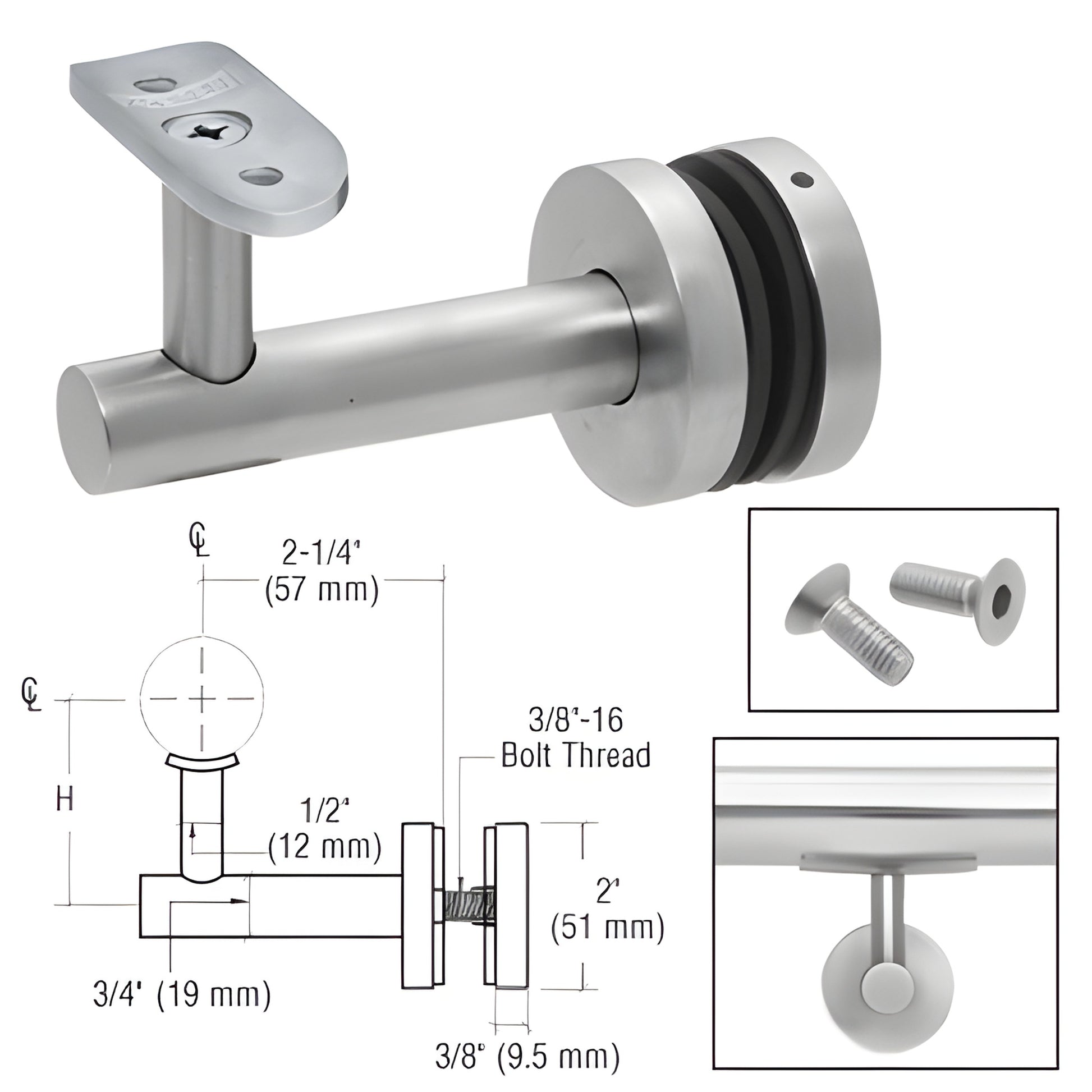

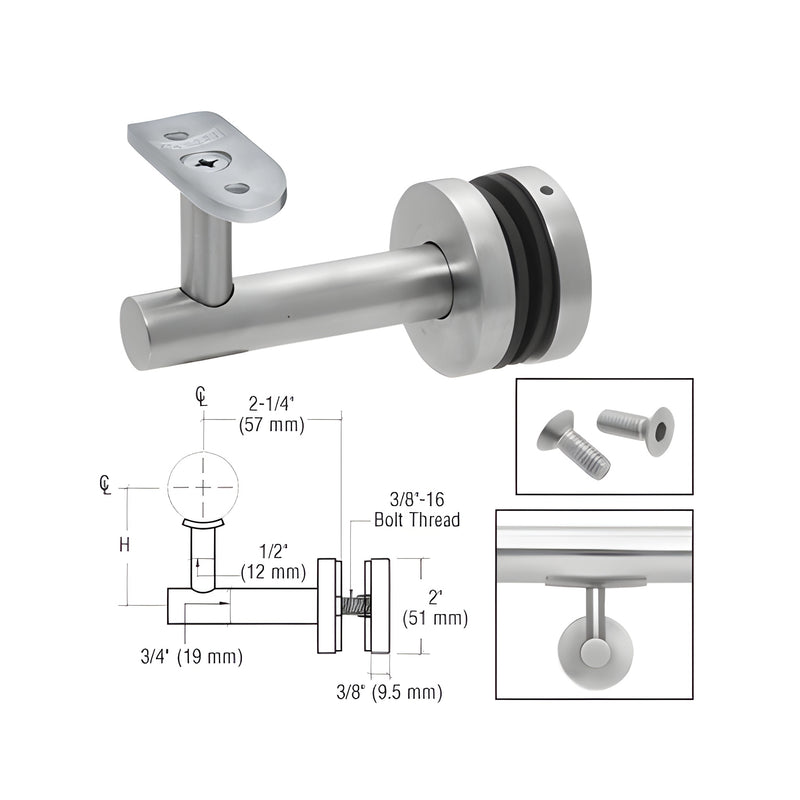

This CRL Malibu Series Glass Mounted Hand Rail Bracket (SKU: HR3EGBS) is engineered for 1-1/2" to 2" (38 to 50.8 mm) diameter handrail tubing and glass balustrade applications. Ideal as a glass mounted handrail bracket or balcony glass railing bracket where a sleek, secure connection between glass panels and round handrails is required.
Product Warning:
Requires 3/4" (19 mm) hole in glass.
Stainless Steel Advisory:
Although stainless steel is highly corrosion-resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Choose the HR3EGBS glass mounted handrail bracket for durable 316 stainless performance and precise fit—order now or contact CRL for help selecting the correct long-arm or short-arm bracket.
Specifications
CAD Drawings - pdf
