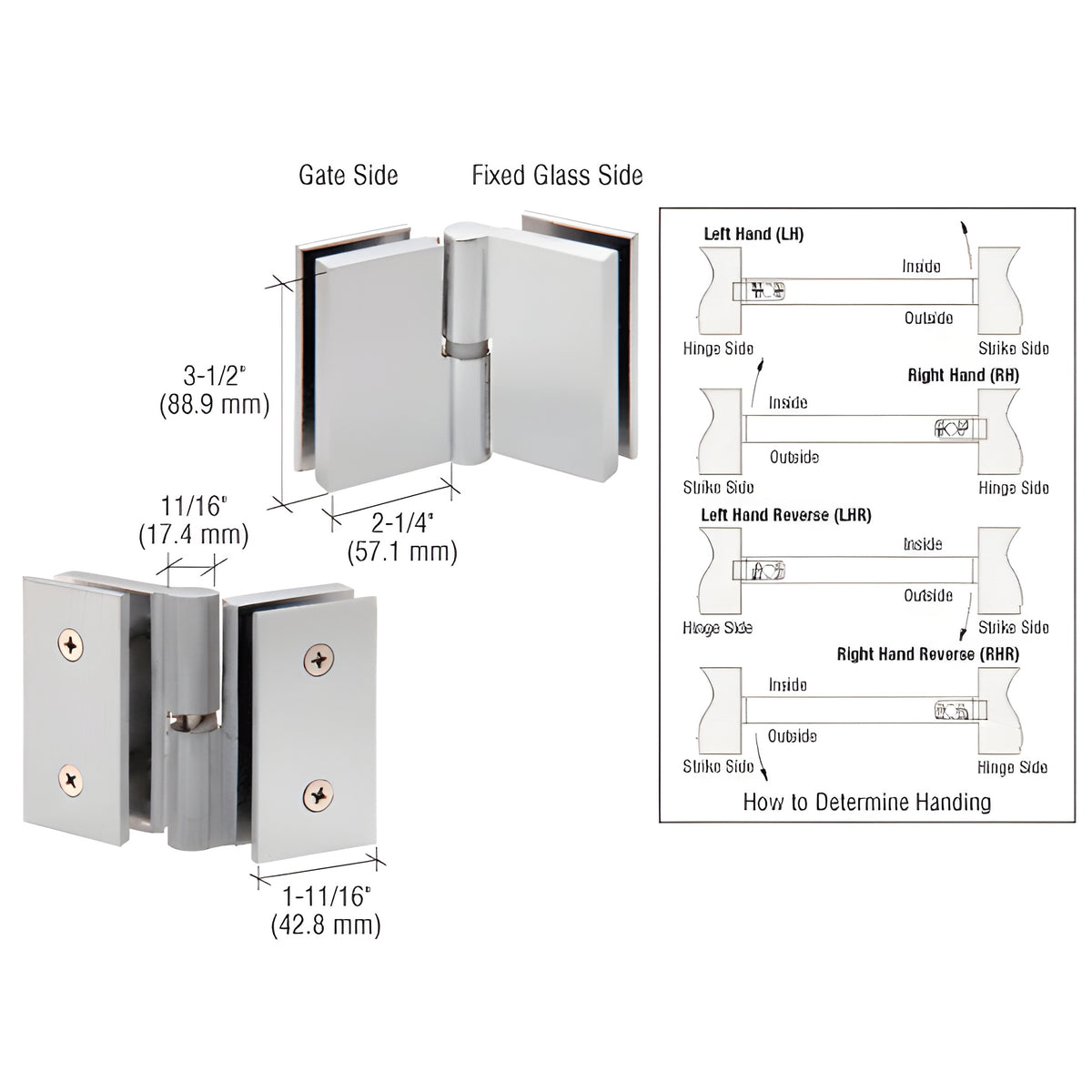

CRL 316 Brushed Stainless Single-Acting RH Glass Gate Pivot Hinge

• Handed self-closing hinge for 3/8" or 1/2" (10 or 12 mm) tempered glass
• All 316 alloy brushed or polished stainless steel

CRL single-acting glass-to-glass gate hinges (SKU: GH180RBS) are handed, self-closing hinges designed for tempered glass gate applications. Each hinge requires two 3/4" (19 mm) holes on the fixed panel and two on the gate. Hinge supports doors up to 42" (1.07 m) wide and a maximum weight of 65 lbs. (29.5 kg). Instructions and a cut-out template are included in each box.


NOTE: Not for use on pool gates.

Product Warning:

These self-centering hinges rely on downward gravity to center and swing both ways. They are not designed to meet swimming pool regulations or codes that require a force-closing hinge with at least five pounds of closing force.

Stainless Steel Advisory:

Durable 316 stainless construction and tempered-glass compatibility make the GH180RBS a reliable glass gate hinge choice—order yours today.
