CRL 316 Brushed Stainless Single-Pivot Glass-to-Glass Shower Hinge
CRL 316 Brushed Stainless Single-Pivot Glass-to-Glass Shower Hinge
Regular price
$53.89 CAD
Regular price
Sale price
$53.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGF64BGG
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
3-15/16 in. (100 mm)
Material
316 Stainless Steel
Width
2-3/8 in. (60.3 mm)
Overview
- Available in several configurations for surface or flush glass attachments (caps sold separately)
- Alloy 316 brushed stainless finish for corrosion resistance
- Fits 3/8" to 1/2" (10 to 12 mm) glass

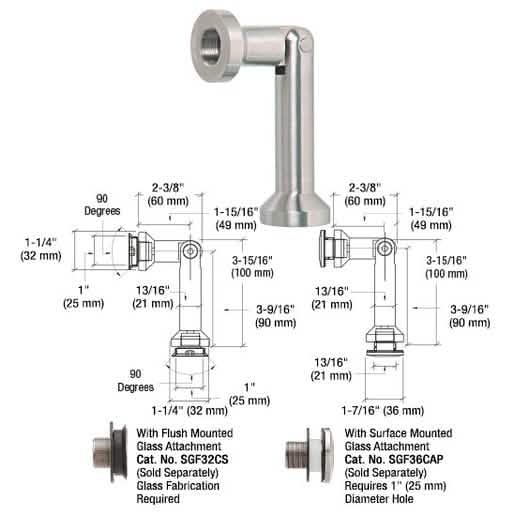

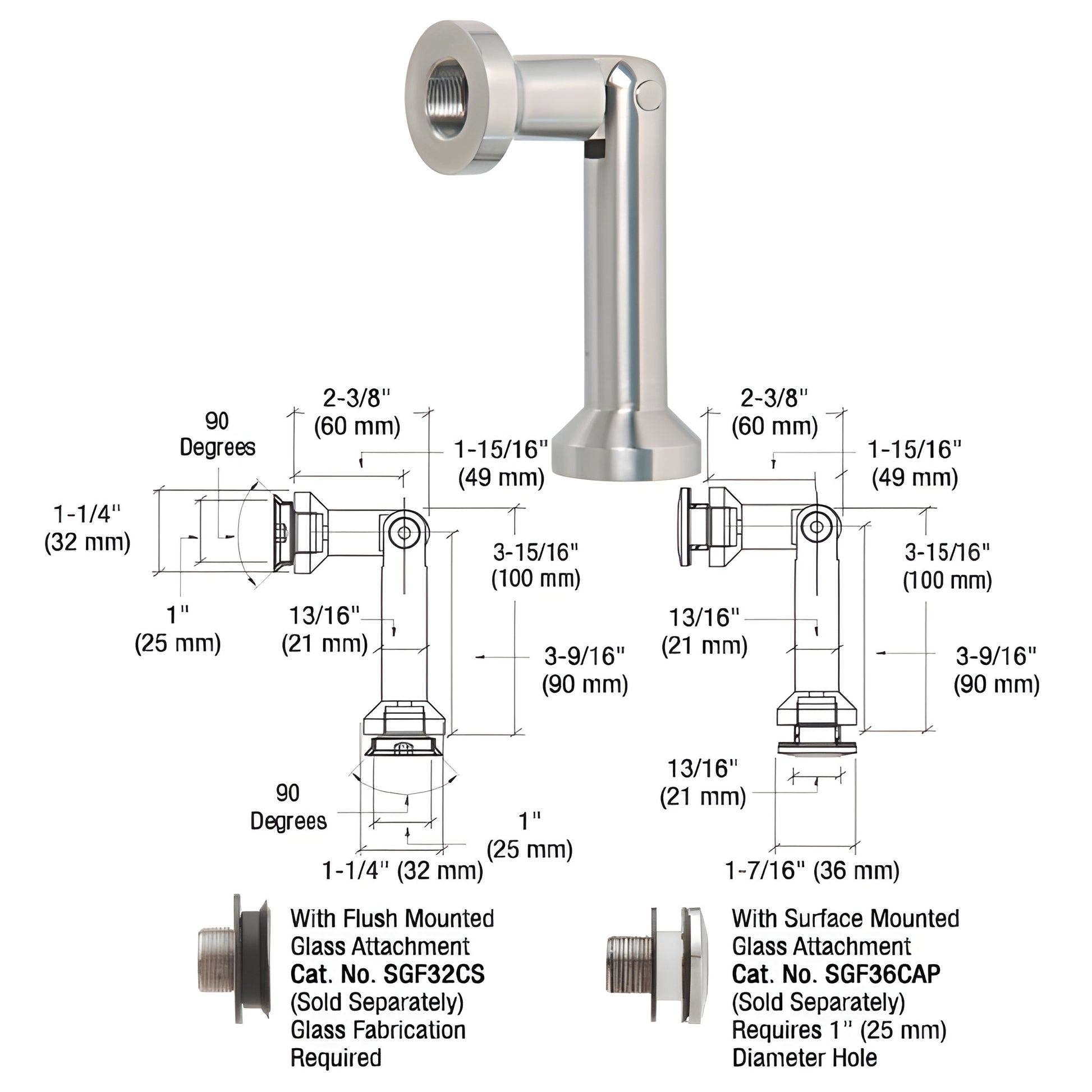

CRL Single Pivot Glass-to-Glass Swivel Fitting (SKU: SGF64BGG) provides a compact, durable solution for connecting two glass panels at variable angles. The single column swivel accepts either a Surface Mount Glass Attachment Cap or a Flush Mount Glass Attachment Cap (sold separately) and supports 3/8"–1/2" (10–12 mm) glass. The simple, low-profile design enables quick installation and reliable pivoting for frameless glass assemblies. Brushed 316 stainless finish complements modern architectural glass hardware and offers enhanced corrosion resistance for interior and exterior glazing applications.
Stainless Steel Advisory:
Although stainless steel is resistant to corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to help preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Order SGF64BGG or contact CRL Customer Service for configuration and pricing.
Specifications
CAD Drawings - dwg
