CRL 316 Brushed Stainless Single Pivot Glass Shower Door Hinge
Item# SGF41BGW
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
1-7/8 in. (47.6 mm)
Material
316 Stainless Steel
Width
1-7/8 in. (47.6 mm)
- Alloy 316 Brushed Stainless Finish
- Fits 3/8" and 1/2" (10 mm and 12 mm) monolithic tempered glass
- Compatible with Surface Mount or Flush Mount Glass Attachment Caps (sold separately)
- Single pivot glass-to-wall swivel fitting — SKU: SGF41BGW

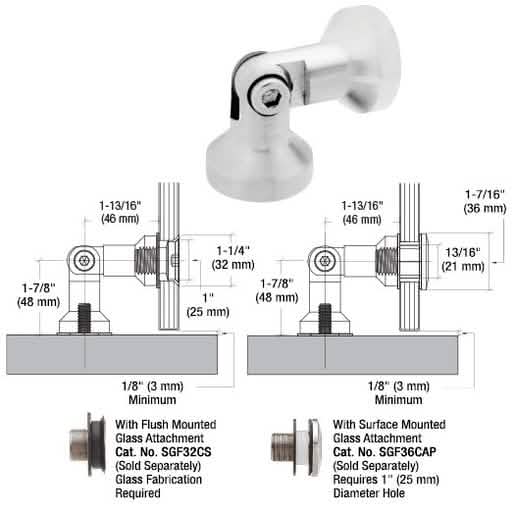

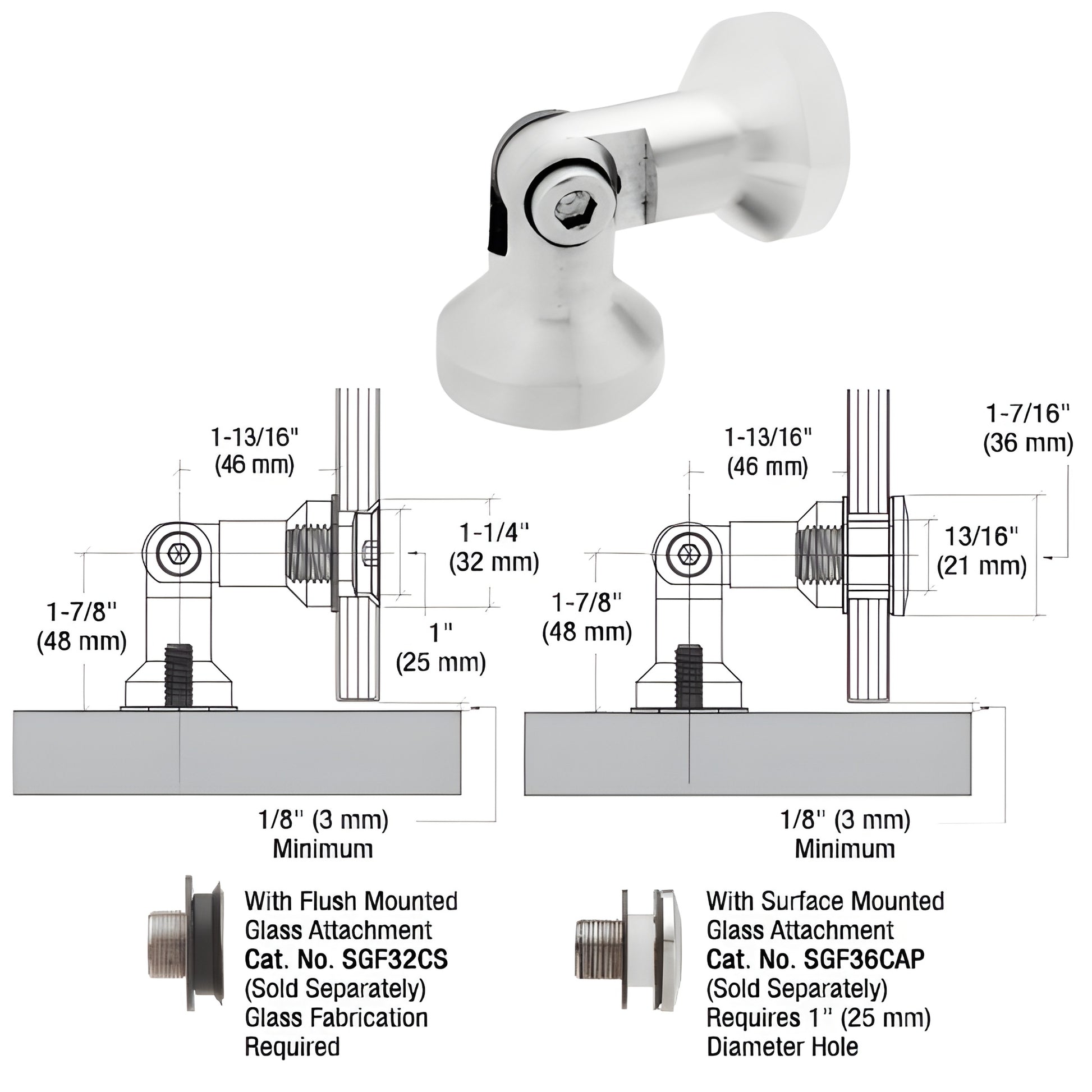

CRL Single Pivot Glass-to-Wall Swivel Fittings provide a durable, low-profile solution for connecting monolithic tempered glass to a wall or floor at variable angles. The Column Series single pivot (single column swivel fitting) accepts either a surface mount glass attachment cap or a flush mount cap for a clean, customizable finish. Constructed from Alloy 316 with a brushed stainless finish, this swivel fitting resists corrosion better than standard steels and is sized for quick installation with 3/8" and 1/2" (10 mm and 12 mm) glass panels.
Product Warning:
Threaded bottom base for 5/16"-18 hanger bolts, Allen screws, or threaded rods. Standard Column Series swivel fitting and cap assemblies are not included and must be ordered separately.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for details.
Looking for reliable, brushed 316 stainless single pivot swivel fittings for tempered glass? Contact CRL or add SKU SGF41BGW to your cart to order today.
