CRL 316 Brushed Stainless Pivot Hinge for Frameless Glass Door
Item# SGF63BGW
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 To 1/2 in. (10 mm To 12 mm)
Height
4 1/8 in. (104.8 mm)
Material
316 Stainless Steel
Width
2-3/8 in. (60.3 mm)

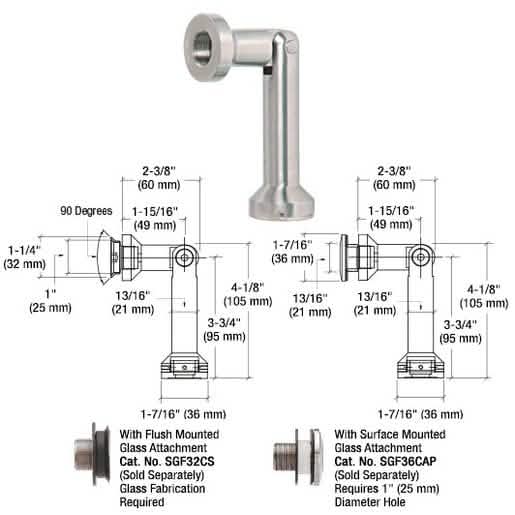

- Available in six configurations for surface-mount or flush-mount glass attachments (caps sold separately)
- Alloy 316 brushed stainless finish for corrosion resistance
- Fits 3/8" to 1/2" (10 to 12 mm) glass

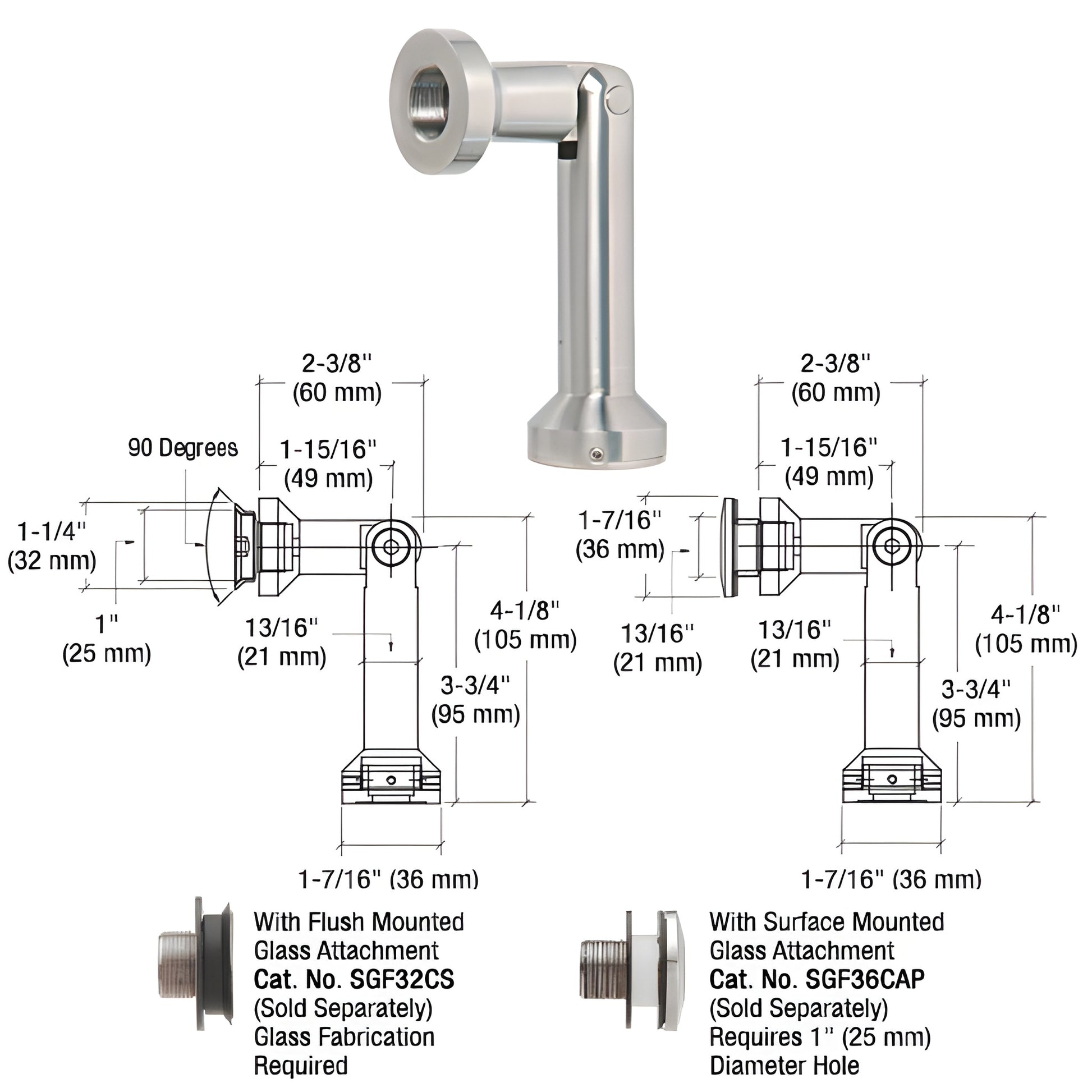

CRL Single Pivot Glass-to-Wall/Floor Swivel Fitting provides a durable, low-profile solution for connecting glass panels at variable angles. The single-column swivel accepts either a surface mount or flush mount glass attachment cap (caps sold separately), and is quick to install. Constructed from Alloy 316 in a brushed stainless finish, it accommodates 3/8"–1/2" (10–12 mm) glass and is available in six configurations to suit glass-to-wall or glass-to-floor applications. SKU: SGF63BGW
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please contact CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Shop now to choose the configuration that fits your glass railing or partition project.
CAD Drawings - dwg
