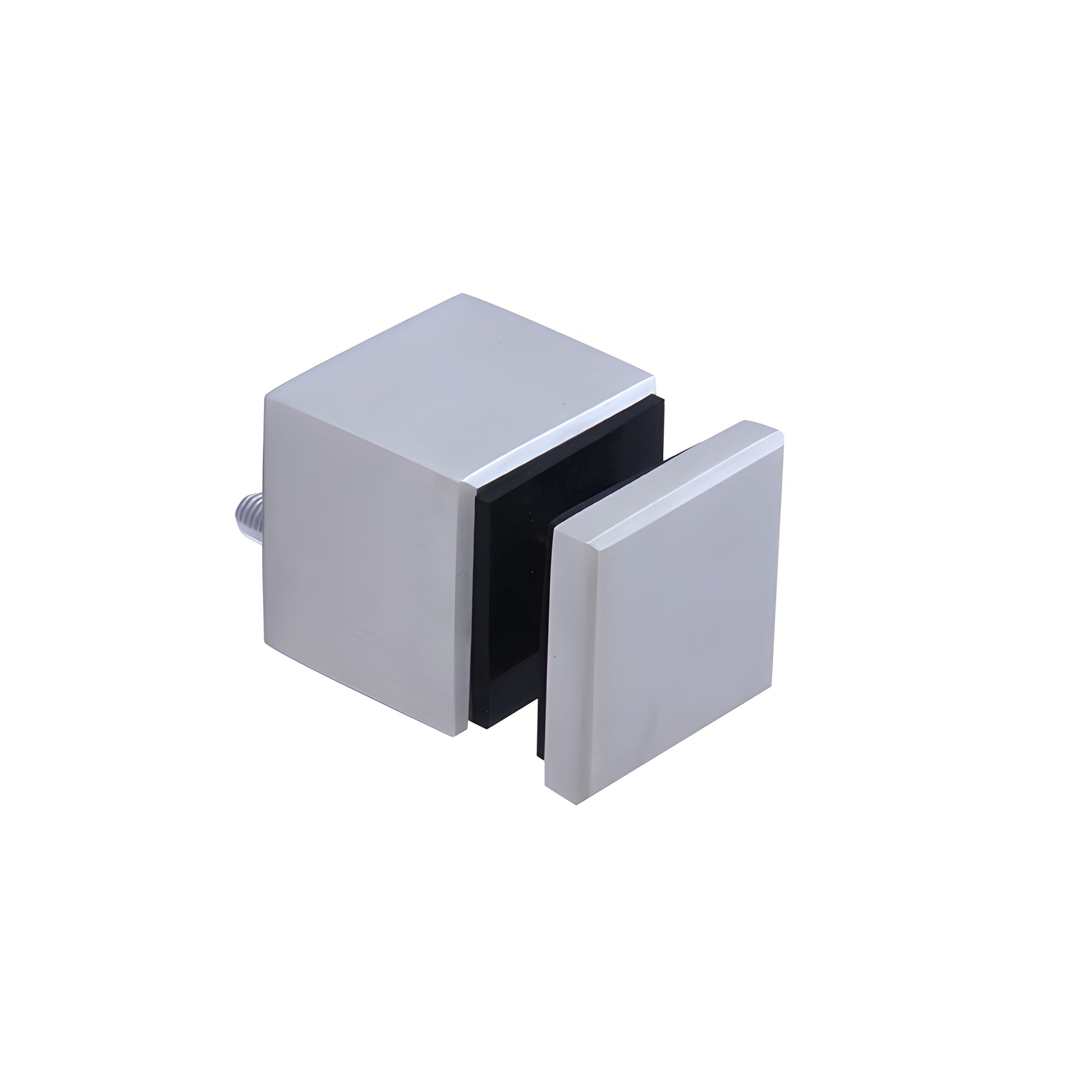

CRL 316 Brushed Stainless Square Glass Standoff 1-3/4" Projection

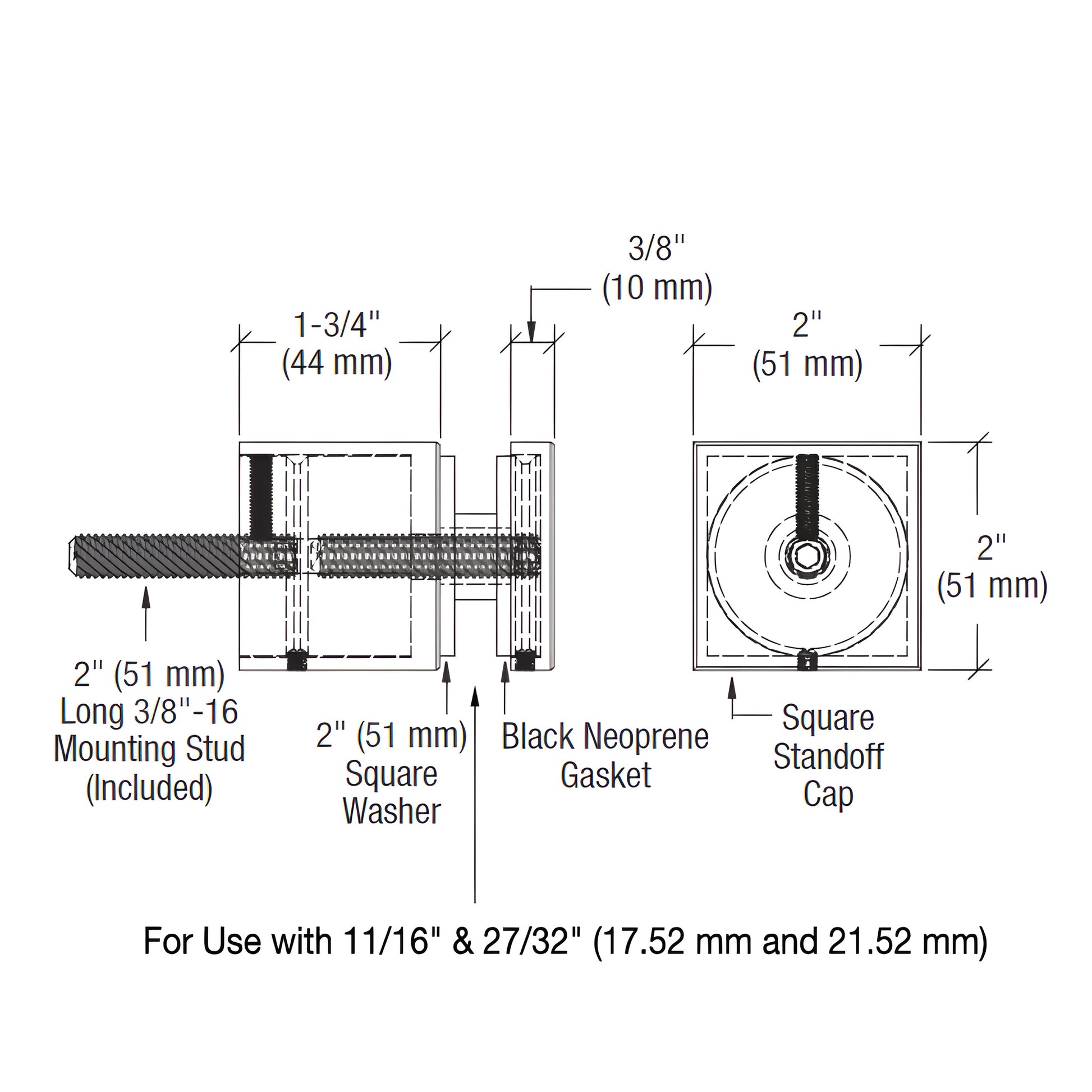

• Compact 2" (51 mm) square standoff design with base, cap, and 3/8"-16 x 2" Allen mounting stud — mounts to steel, concrete, or wood substrates
• Works with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer — ideal for glass railing hardware and tempered glass balustrades
• High-grade 316 stainless steel construction (brushed or polished) for corrosion resistance and long-lasting finish

These heavy-duty CRL Glass Rail Standoff Base and Caps (SKU: SS0B2134BSC) are designed for glass railing and guard rail applications. The standoff includes a 1-3/4" (44.5 mm) base, necessary gaskets and grommet, and ships with a 3/8"-16 x 2" Allen stud for secure mounting to steel. Use Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated from 316 grade stainless steel for durability in exterior and interior railing systems.

SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) tempered monolithic or tempered laminated glass (Do Not Use with Raw or Annealed Glass).
Glass Fabrication: One 3/4" (19 mm) diameter hole per fitting.
Spacing: Maximum spacing depends on application and mounting conditions; minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available for load and spacing guidance.

Product Warning:
For use only with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary by application and mounting conditions — consult engineering guidance before installation.

Stainless Steel Advisory:
