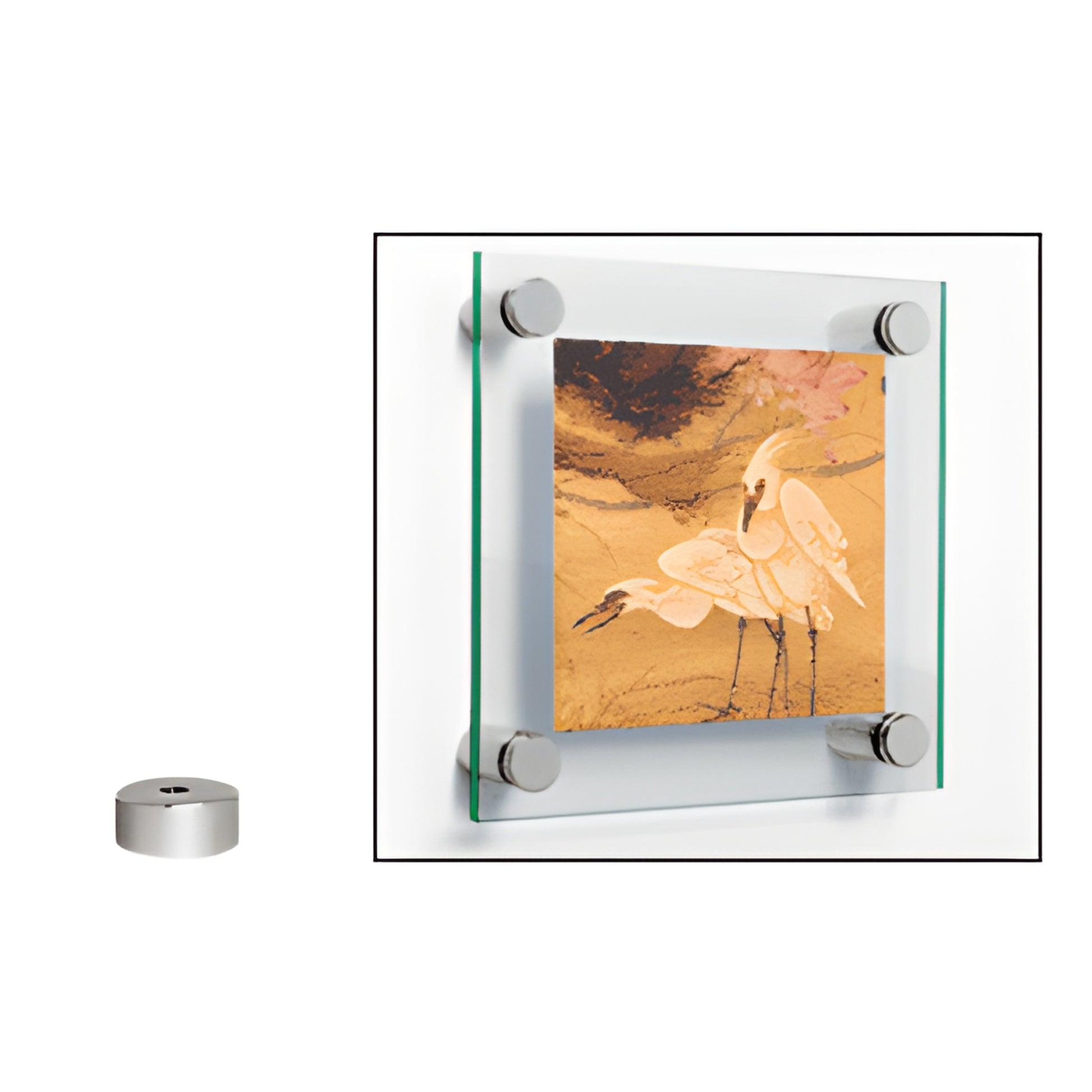

CRL 316 Brushed Stainless Steel 1/2" Dia x 1/4" Glass Standoff Base

• Available in two distinct 316 stainless steel finishes (Brushed and Polished) to suit any project
• Six lengths available to meet varied mounting requirements
• No internal threads — designed for monolithic tempered glass and through-hole mounting
• Requires 5/16" (8 mm) panel holes; compatible with glass, plastic and wood panels

An assortment of lengths makes our CRL 1/2" (12.7 mm) Standoff Base and Cap Assemblies an ideal solution for lighter-weight glass displays, signage, and architectural accents. Panels require 5/16" (8 mm) holes for assembly. Finishes available: Brushed Stainless and Polished Stainless (316). These 1/2" diameter standoffs provide versatile, contemporary mounting for retail stores, restaurants, offices, and commercial interiors.

The 1/2" (12 mm) standoff bases do not have internal threads. Use the Hanger Bolts or the Threaded Rod to secure the cap assembly and anchor to the substrate. CRL's 1/2" Standoffs integrate with other hardware—such as Edge Grips and Swivel Fittings—for maximum system versatility. Bases come in multiple lengths (from 1/4" to 1-1/2" / 6.3 to 38 mm). Matching Cap Assemblies are ordered separately.

The CRL Standoff System also offers a full range of mounting accessories so you can order exactly what you need. For installation techniques or design assistance using CRL standoffs (SKU: S0B1214BS), contact the CRL Technical Sales Department.

Product Warning:

Due to varied applications, weight limits depend on the wall or substrate anchoring—determine anchoring strength before final installation.

Stainless Steel Advisory:
