CRL 316 Brushed Stainless Steel P1 End Post Railing Kit
CRL 316 Brushed Stainless Steel P1 End Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136EBSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
180
Base Plate Length
5 in. (127 mm)
Base Plate Thickness
3/8 in. (10 mm)
Base Plate Width
5 in. (127 mm)
Finish/Color
Brushed Stainless Steel
Height
36 in. (914 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder paint finishes available

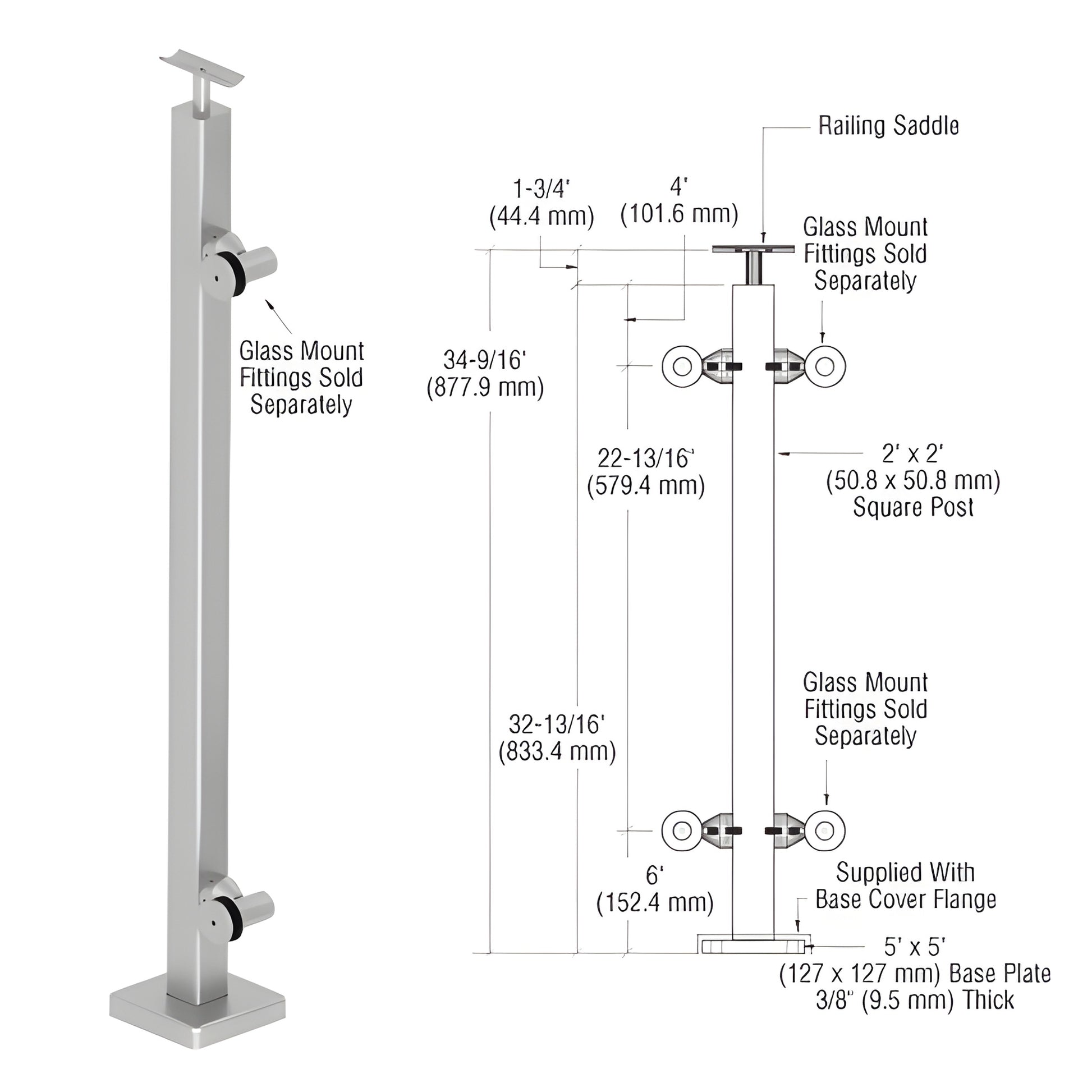

CRL P1 Post Railing Kits (SKU: P136EBSC) are designed for commercial and residential surface-mounted applications that require code-compliant guardrail solutions. These P1 kits are manufactured from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for superior corrosion resistance in indoor and outdoor environments. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle—ideal for stepped or flat installations. For top rail attachment screws, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass clamps and spigots must be purchased separately.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for maintenance guidance.
For code-compliant, surface-mounted 316 stainless steel railing kits (P136EBSC) and accessory options, contact CRL or order online today.
