Product Details
- Opens Up to 90 Degrees Outwards; Settings at 90Degrees or 180 Degrees
- Our Spider Type Design for the Construction of Frameless Showers
- Choice of Two Mounting Options: Glass-to-Glass and Glass-to-Wall
- Use Monolithic Tempered Glass
- Glass-to-Glass Model Has Settings at 90 Degrees or 180 Degrees
- Constructed of 316 Stainless Steel in Your Choice of Brushed or Polished Finish

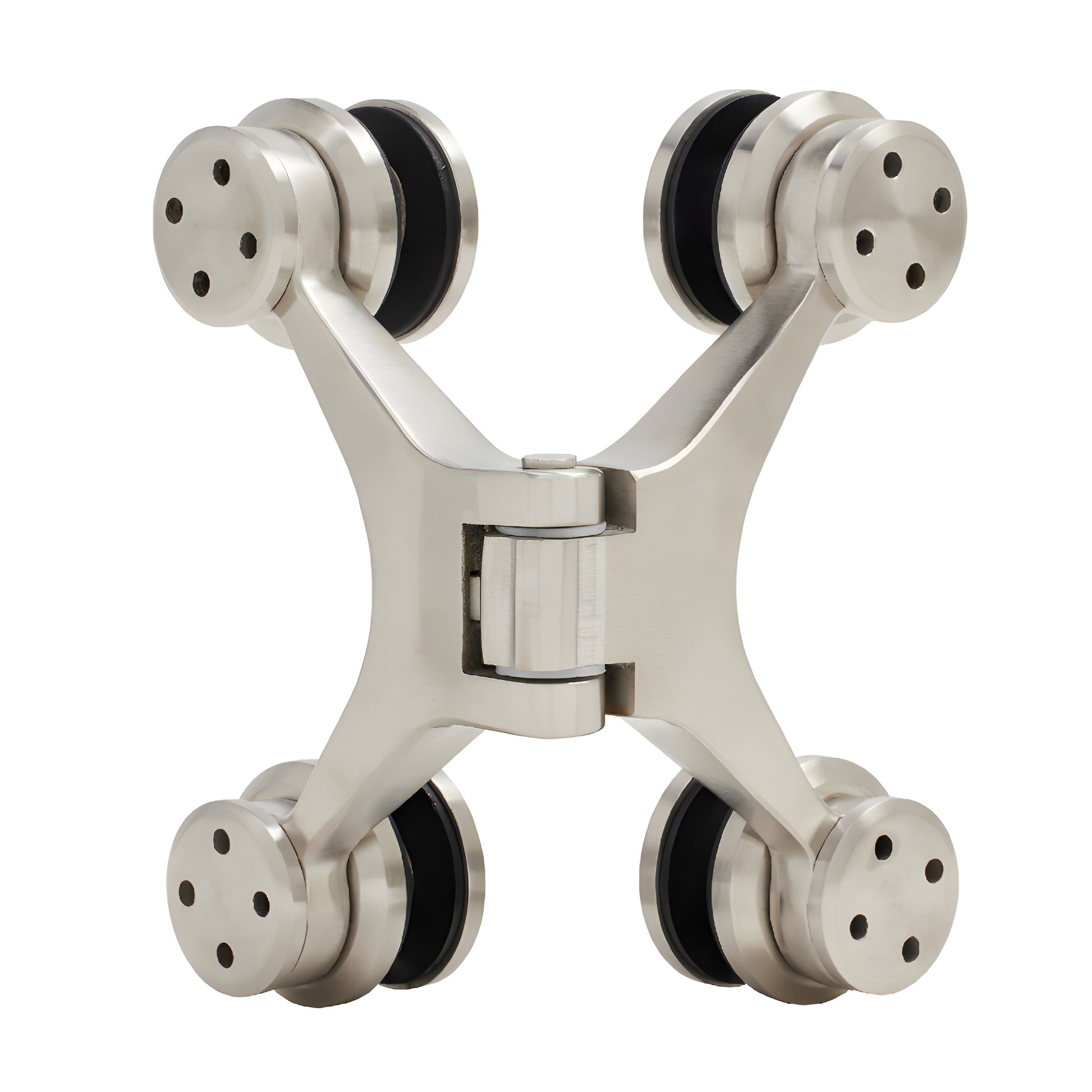

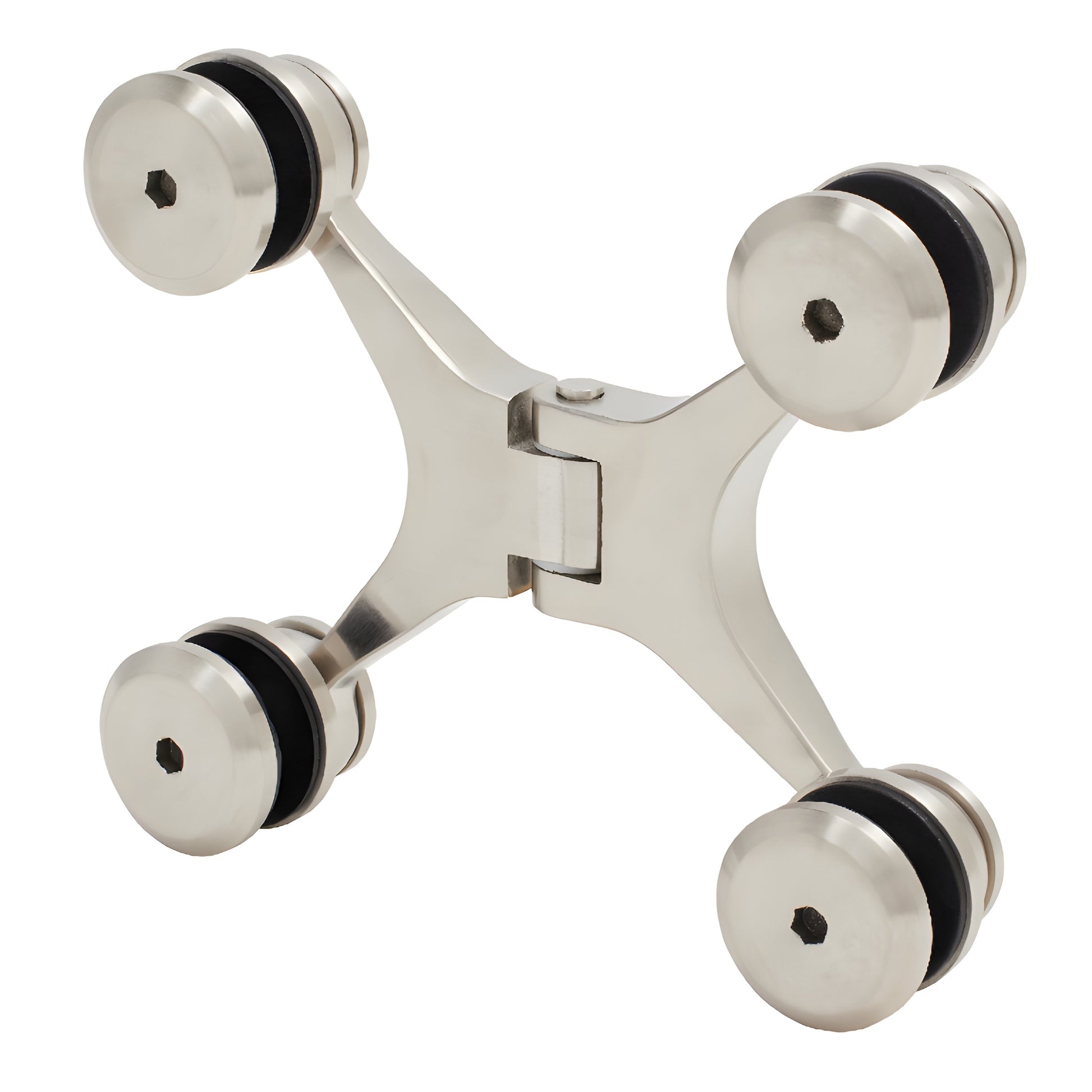

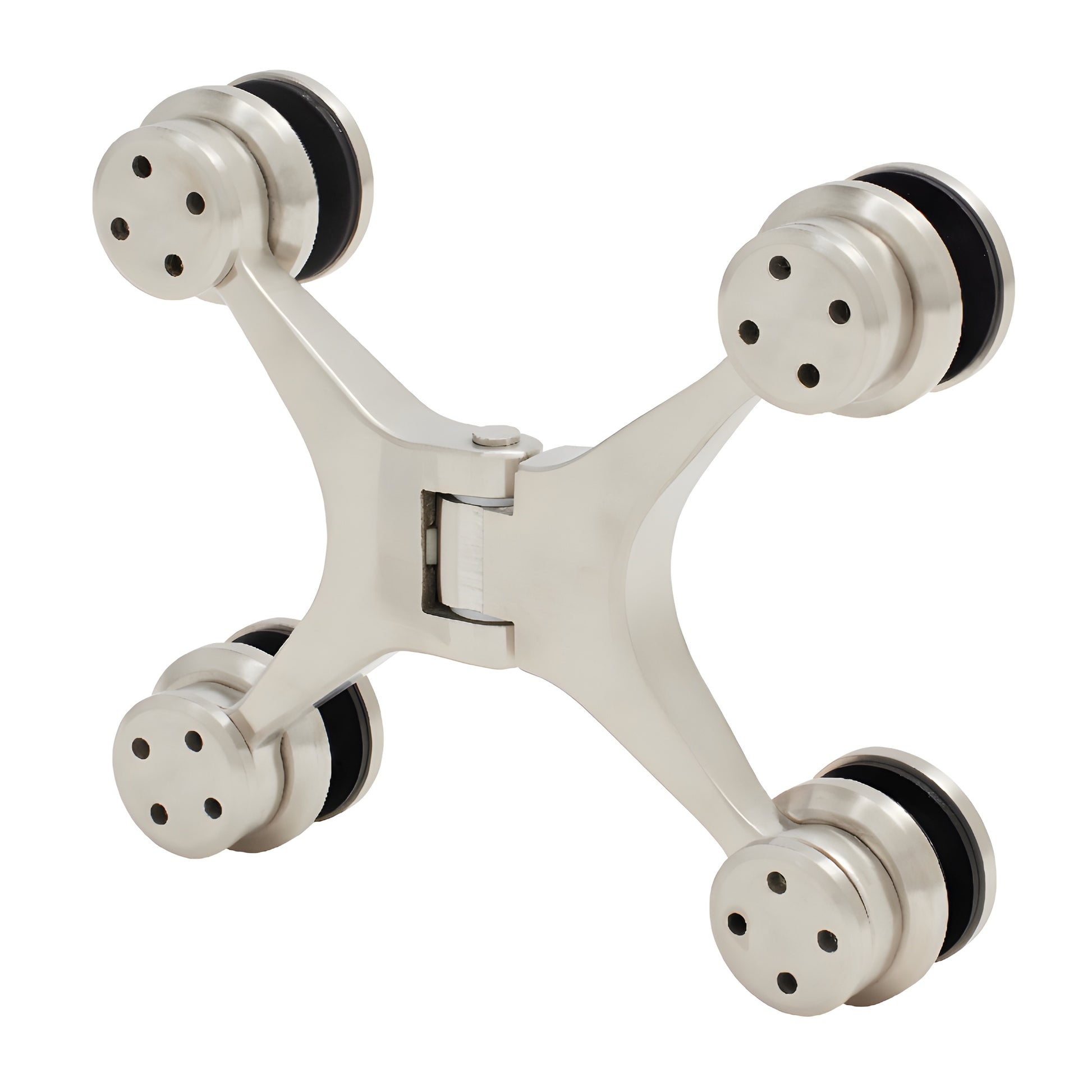

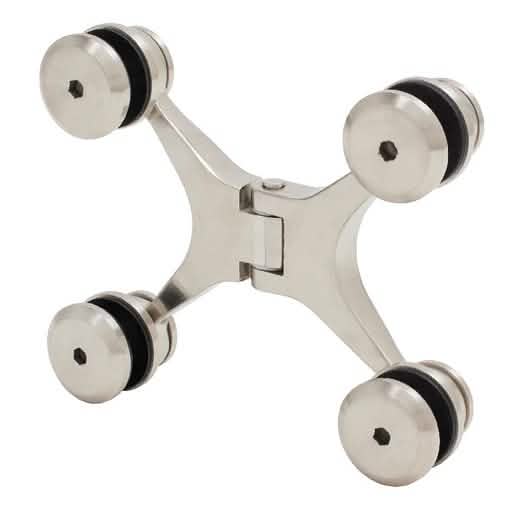

For a new design in CRL Frameless Shower Door Hinges, look no further than our Sydney Series. The unique Spider Type design is certain to give the frameless shower door a different look that will surely be noticed. Constructed of durable 316 stainless steel, Sydney Hinges are available in Wall-to-Glass and Glass-to-Glass models. The Glass-to-Glass model offers two settings at 90 degree and 180 degree. For doors falling in between these common installation angles, the springs may be removed to allow a free-swinging hinge.
Two holes are required per hinge for each panel to accommodate the through-bolts, with no cut-out necessary. The 316 stainless steel body of the Sydney Hinge allows the door to swing 90 degree outward. Polished and Brushed Stainless finishes are offered.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 34" (864 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm) Tempered Safety Glass
Construction: 316 Stainless Steel
Hinge Swings: Up to 90 degree Outwards (Requires Stop)
Closing Type: Precise Closing to 0 degree
Two 5/8" (16 mm) Diameter Holes required per panel per hinge, no cut-out.
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
