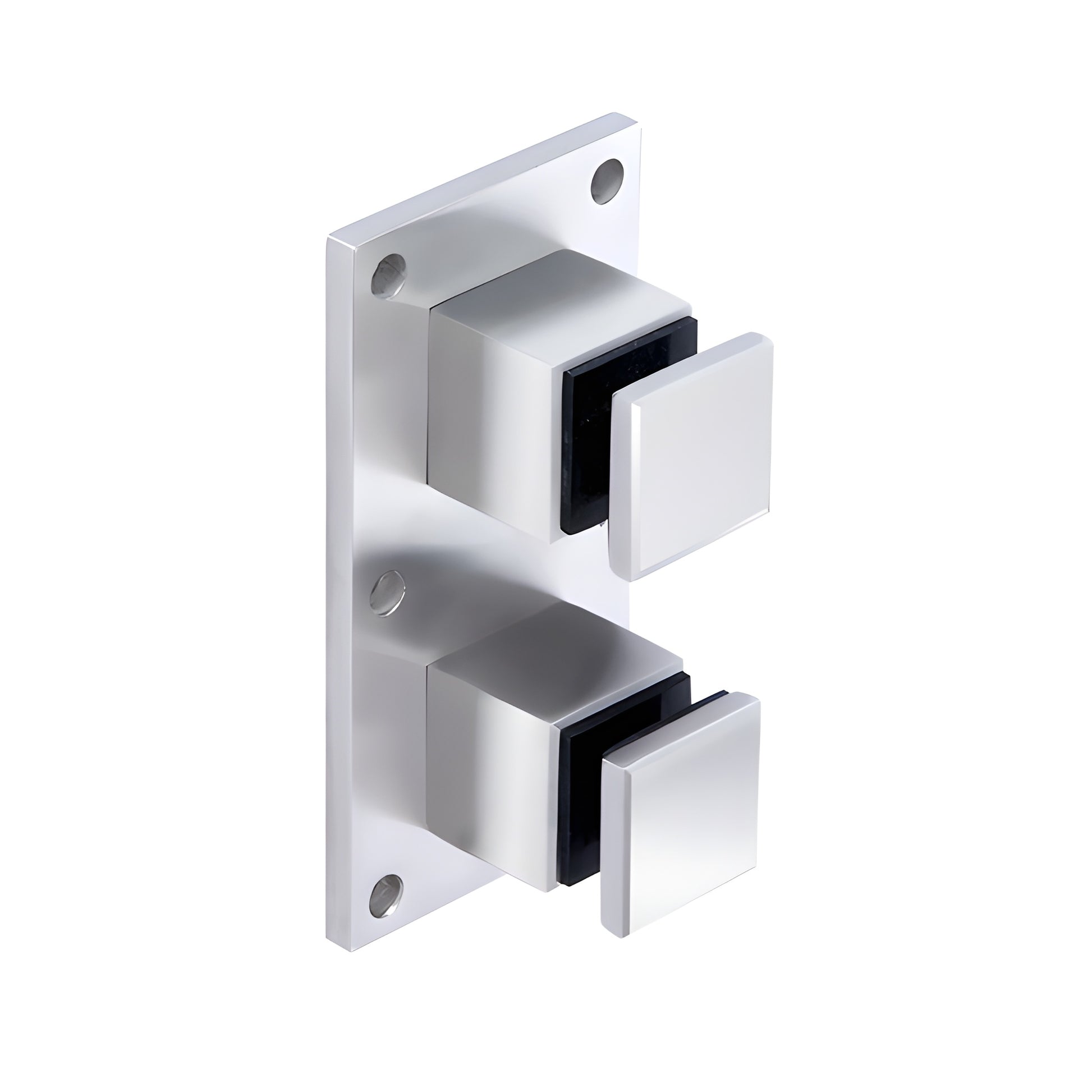

CRL 316 Polished SS 2in Square Glass Standoff with Mounting Plate
CRL 316 Polished SS 2in Square Glass Standoff with Mounting Plate
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SS0B20PSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Alloy
316
Finish/Color
Polished Stainless Steel
Height
8 in. (203 mm)
Material
316 Stainless Steel
Width
4 in. (102 mm)
Overview
- High Grade 316 Stainless Steel glass standoff for railings — mounts to wood, concrete, or steel
- Custom finishes available; two popular stainless finishes in stock

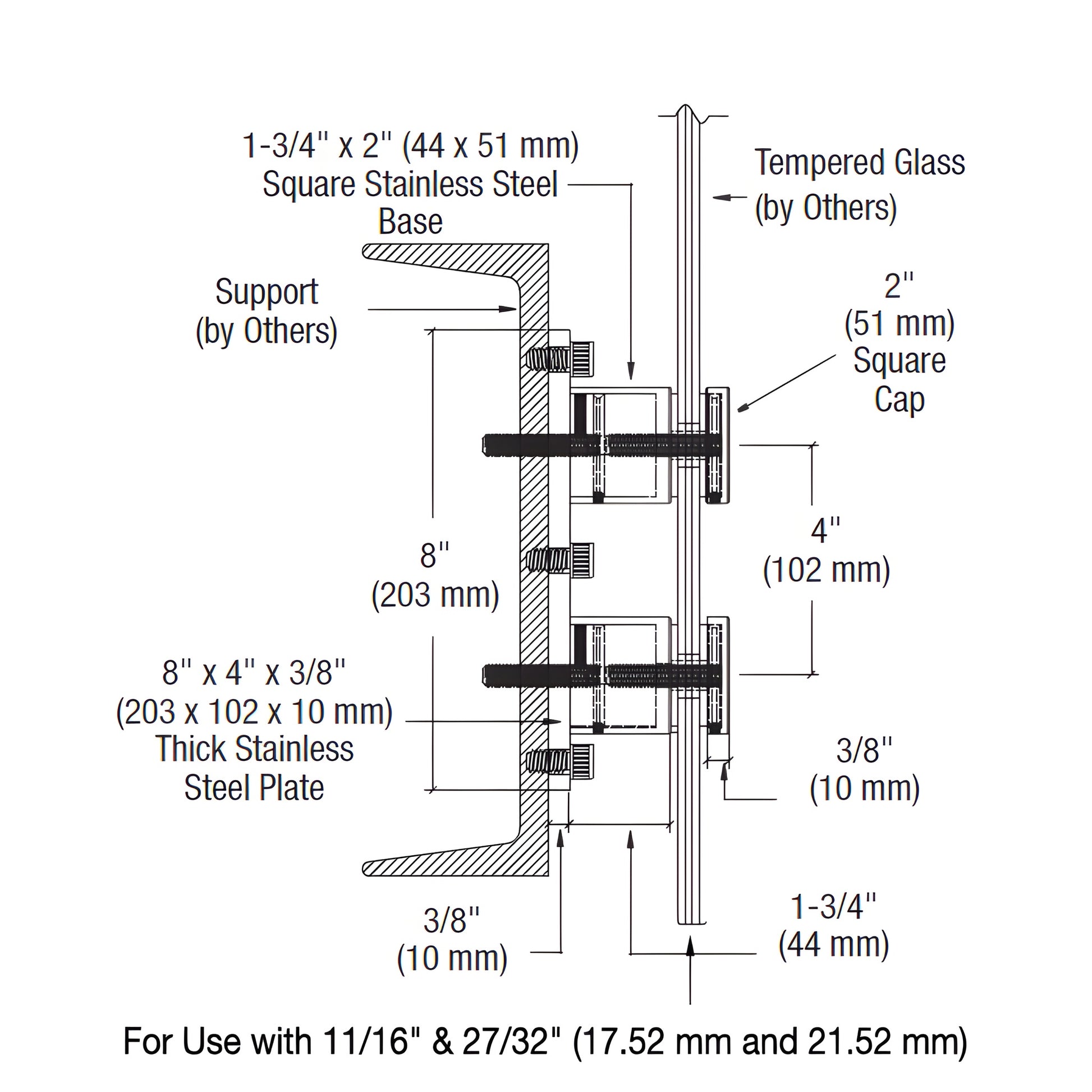

CRL Glass Rail Square Standoff Fittings — SKU: SS0B20PSC can be used to mount laminated glass up to 27/32" (21.52 mm) thick. This 316 grade stainless steel assembly secures glass with 2" (51 mm) square caps on threaded bolts. Each 2" (51 mm) square standoff is fastened to a pre-drilled 3/8" (10 mm) stainless steel mounting plate for reliable installation on wood, concrete or steel substrates.
Key features: durable 316 stainless steel for coastal and exterior applications, pre-drilled mounting plate, compatible with laminated glass panels using SentryGlas® interlayer.
SPECIFICATIONS:
Glass Fabrication: Two 3/4" (19 mm) diameter holes per fitting
Hole spacing between standoffs: 4" (102 mm)
Maximum fitting spacing depends on application, glass panel size and mounting conditions — consult engineering guidelines.
Product Warning:
For use with 11/16" & 27/32" (17.52 mm and 21.52 mm) laminated glass using Kuraray SentryGlas® interlayer. Do not use with raw or annealed glass.
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions. Consult CRL for layout recommendations and load limits.
Stainless Steel Advisory:
Although 316 stainless steel is highly corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for more information.
Order SS0B20PSC now — contact CRL for custom finishes, layout support, and installation guidance.
Specifications
CAD Drawings - dwg
