CRL 316 Polished Stainless 1-7/8" Roll-Form Cap Rail 19'8"
CRL 316 Polished Stainless 1-7/8" Roll-Form Cap Rail 19'8"
Regular price
$829.04 CAD
Regular price
Sale price
$829.04 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRRF20PS
Shipping Weight: 34.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 34.0 Pounds
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

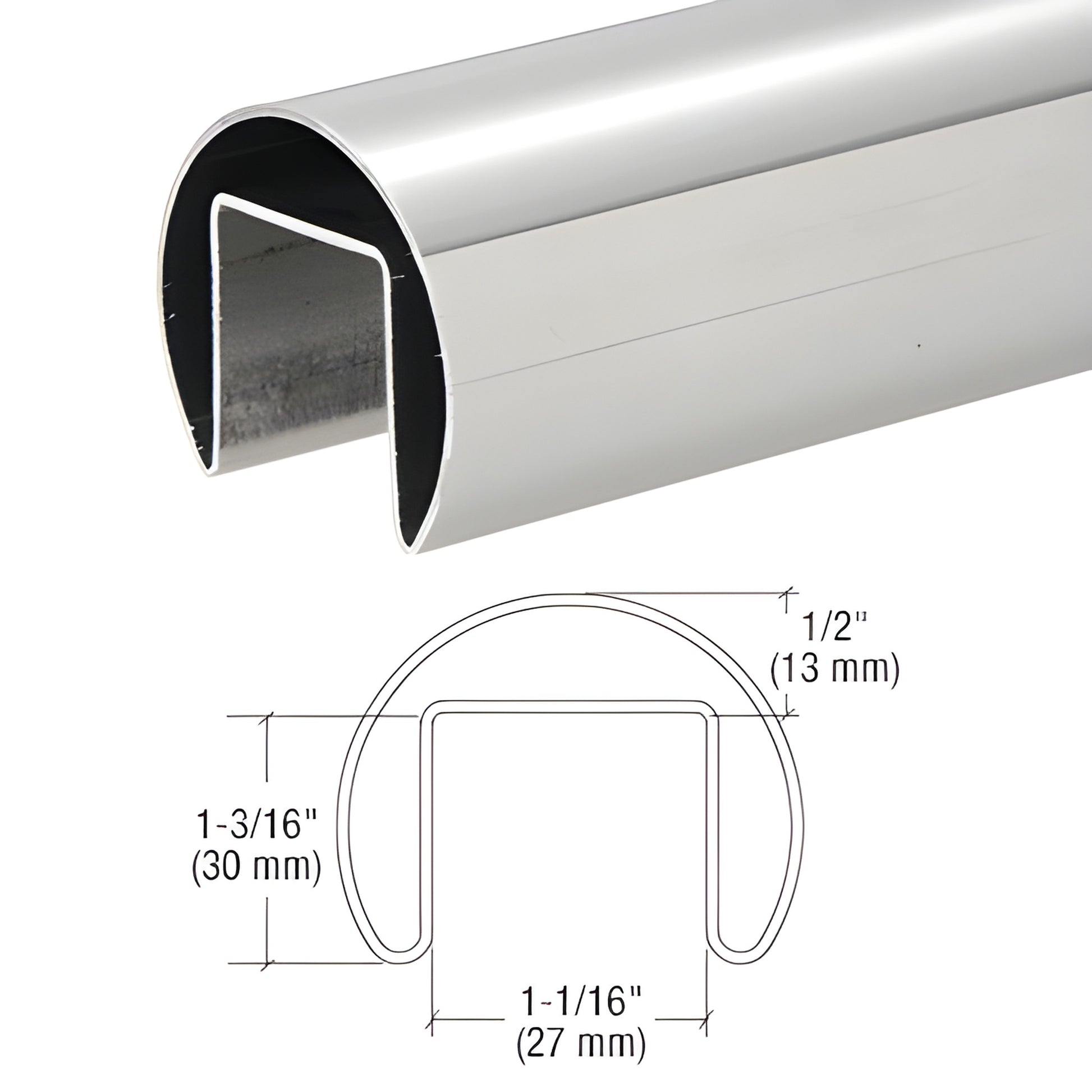

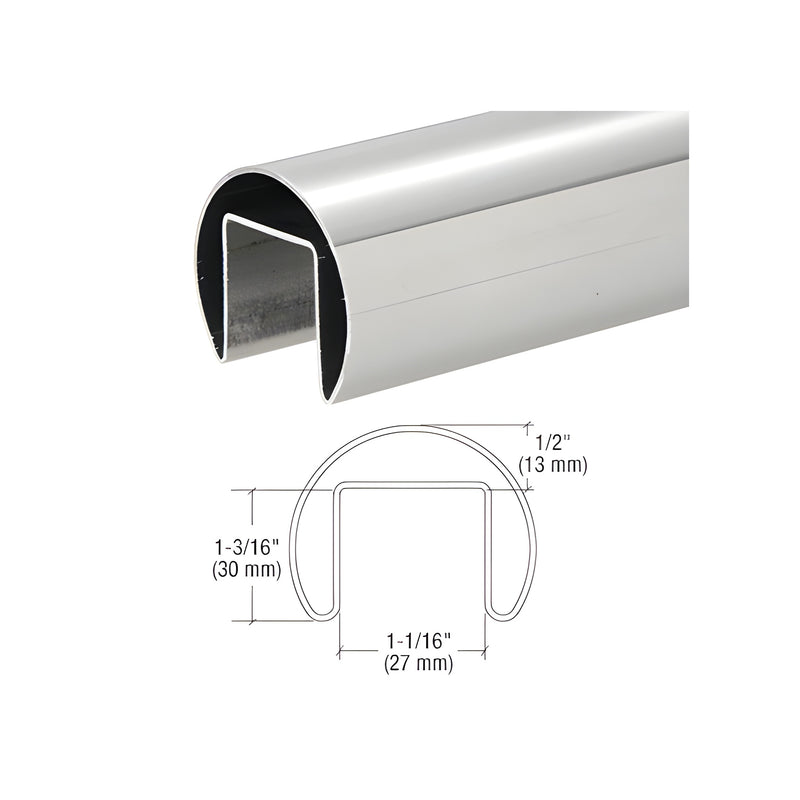

Description
Depth
1/2 in. (13 mm)
Diameter
1-7/8 in. (48 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. & 27/32 in. (12 mm & 21 mm)
Length
236 in. (5994 mm)
Material
316 Stainless Steel
Thickness
.05 in. (1.27 mm)
Overview
- Fits 1/2" to 27/32" (12 to 21.52 mm) tempered glass
- 1-7/8" (48.3 mm) diameter cap rail for glass railing systems
- High grade 316 stainless steel alloy standard
- Available in two architectural finishes
- Custom finishes and cut-to-size or custom fabricated lengths available
- Connects to roll form corners, connector sleeves, end caps, and fabricated corners
CRL Roll Formed Cap Rails (SKU: GRRF20PS) provide a cost-effective alternative to Premium Cap Rails while retaining the appearance and performance required for glass railing systems. These roll formed cap rails accept 1/2" (12 mm) and 5/8" (15 mm) tempered monolithic glass, as well as 13.52 mm, 17.52 mm, and 21.52 mm tempered laminated glass. Roll Form Corners, Connector Sleeves, and End Caps are available to complete installations.
Product Warning:
For use with Roll Formed Cap Rails, components, and accessories only.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for full care instructions.
Order SKU GRRF20PS today — contact CRL for pricing, lead times, and custom finish options.
