Product Details
- For Use with 1/2" (12 mm) to 1" (25 mm) Thick Panels
- Glass Attachment Fittings Sold Separately
- Meets or Exceeds Code Standards
- Top Saddle Supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) Diameter Schedule 40 Hand Rail Tubing
- Standard Post Heights are 36" (914 mm) and 42" (1.07 m), with Custom Heights Available
- Two Standard Stainless Finishes, with Custom Powder Paint Finishes Also Available

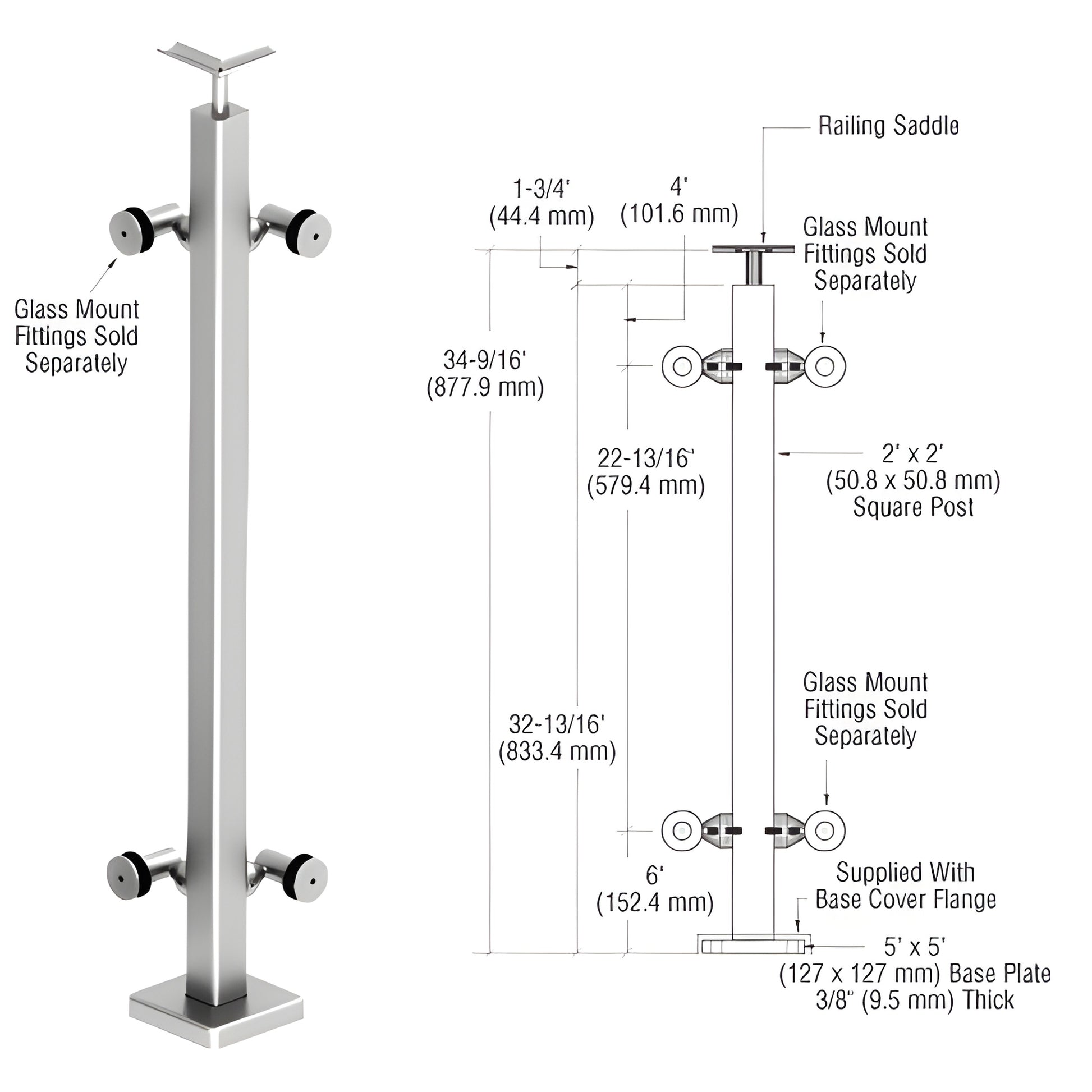

CRL P1 Post Railing Kits are designed for commercial or residential installations that meet or exceed guard rail and hand rail code standards. These P1 Surface Mounted Post Railing Kits are manufactured from 2" (51 mm) square 316 Alloy Stainless Steel Tubing with 3/16" (4.8 mm) wall thickness. Kits are supplied complete with a 5" x 5" (127 x 127 mm) Base Plate, Base Cover Flange, and Welded Top Saddle. For screws to attach the Top Rail to the Saddle specify Cat. No. PRS1032. These 10-32 x 5/8" stainless steel screws come 50 per pack.
Product Warning:
All P-Series Post Kits are sold without glass attachment fittings. Those must be purchased separately.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
