CRL 316 Polished Stainless Steel 4-Way Railing Bracket
Item# GR4BPS
Shipping Weight: 2.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- Reduced size for hand railings
- Compatible with 1/2" (12 mm) tempered glass
- 316 alloy stainless steel; finishes: Brushed Stainless and Polished Stainless
CRL Glass Rail Fitting (SKU: GR4BPS) — floor-mount or fin stabilizer for glass balustrades. Reduced-profile design matches CRL spider fittings and is optimized for handrail applications.
NOTE: To determine whether Regular-Duty or Heavy-Duty spider fittings are required, consult local building codes and a licensed structural engineer. For assistance, contact CRL Technical Sales.
SPECIFICATIONS:
For Use With: 1/2" (12 mm) glass

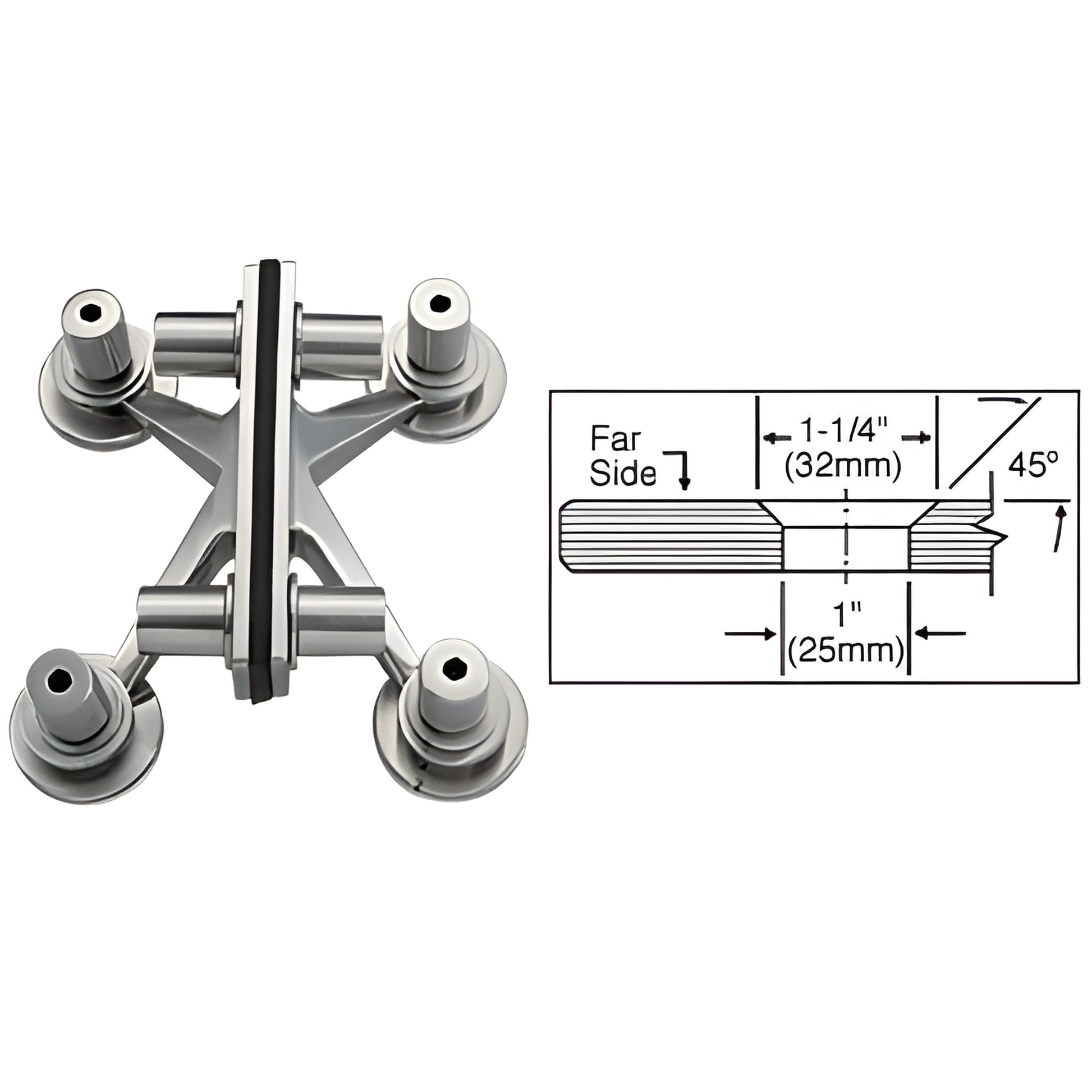

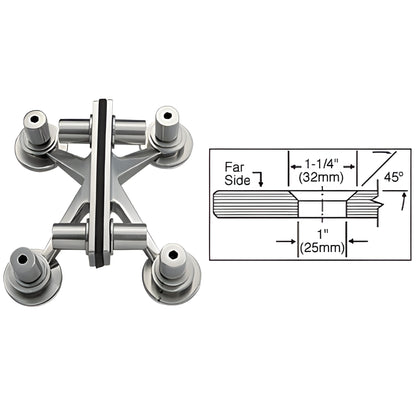

Glass Fabrication Required: One countersunk hole per glass fastening
Templates: Available on request for each fitting
Typical Applications:
- Malls
- Atriums
- Airports
- Museums
- All-glass curtainwalls
Product Warning:
Do not use with annealed or raw glass.
Most shipping weights are approximate and may not have been verified. If an exact weight is required to determine shipping costs, please request this prior to placing your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Optimize your balustrade with this 316 stainless steel glass rail fitting designed for 1/2" tempered glass — order or request templates and installation guidance today.
