CRL P1 316 Stainless-Steel 42" Polished 180° Center-Post Railing Kit

• For use with 1/2" (12 mm) to 1" (25 mm) thick panels
• Glass attachment fittings sold separately
• Meets or exceeds guardrail and handrail code standards
• Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 handrail tubing
• Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
• Two standard stainless finishes; custom powder coat finishes available

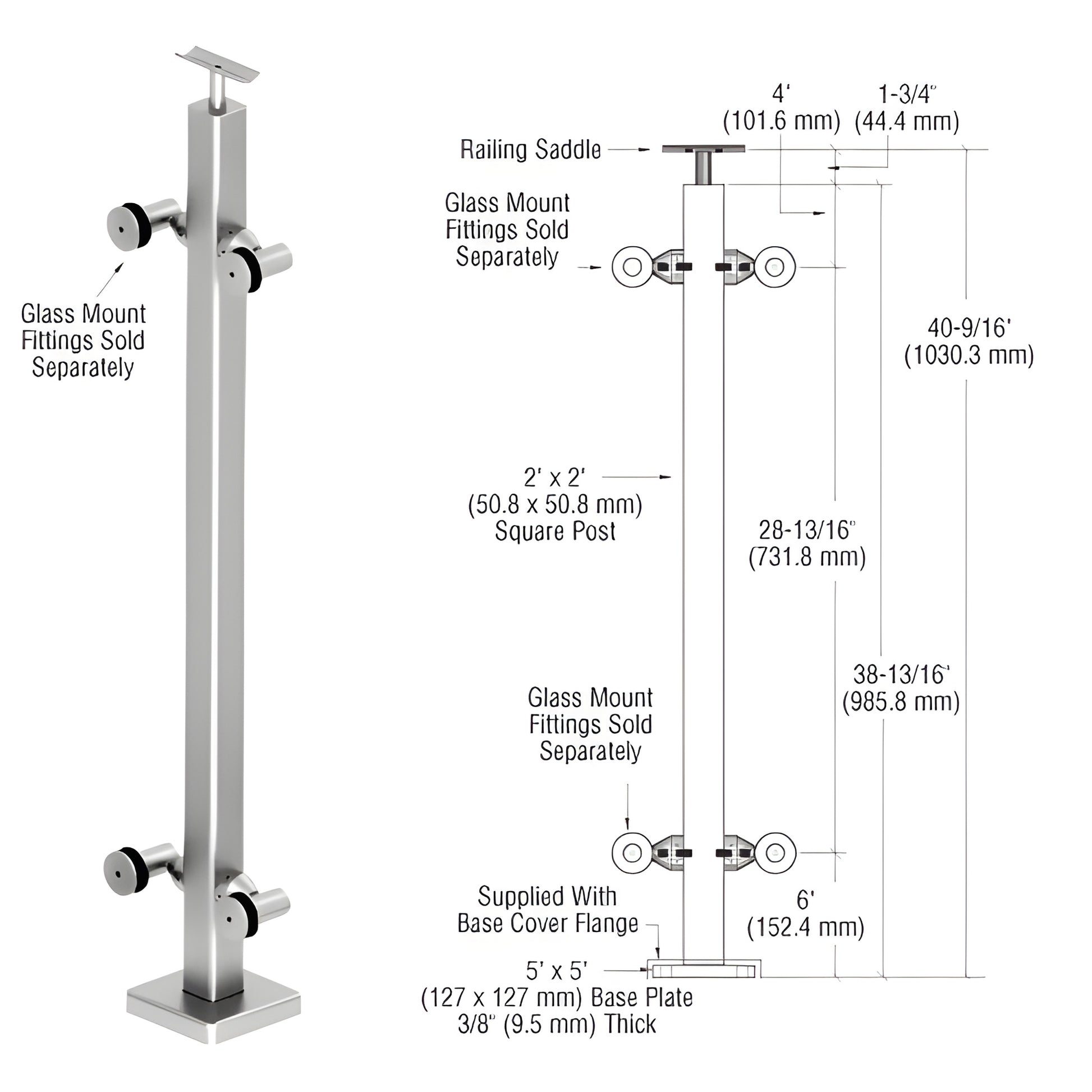

CRL P1 Post Railing Kits (SKU: P142CPS) are engineered for commercial and residential surface-mounted guardrail and handrail installations. These P1 surface mounted post railing kits are fabricated from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness for enhanced corrosion resistance and structural durability. Kits include a 5" x 5" (127 x 127 mm) base plate, base flange cover, and welded top saddle—ideal for stainless steel post railing systems that meet building code requirements.

For attaching the top rail to the saddle, specify Cat. No. PRS1032 (10-32" x 5/8" stainless steel screws, 50 per pack). Note: glass attachment fittings are not included and must be purchased separately.

Product Warning:

All P-Series post kits are sold without glass attachment fittings; purchase separately to complete glass railing installations.

Stainless Steel Advisory:

Differentiate your railing project with a 316 stainless steel P1 surface mounted post kit built for code-compliant commercial and residential guardrail and glass railing systems. Order SKU P142CPS or contact CRL for custom heights and finishes.
