CRL
CRL P1 Series 316 Polished Stainless 180° Center-Post Railing Kit
CRL P1 Series 316 Polished Stainless 180° Center-Post Railing Kit
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# P136CPSC
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Angle
180
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. To 1 in. (12 mm To 25 mm)
Height
36 in. (914 mm)
Material
316 Stainless Steel
Overview
- For use with 1/2" (12 mm) to 1" (25 mm) thick panels
- Glass attachment fittings sold separately
- Meets or exceeds guard rail and hand rail code standards
- Top saddle supports 1-1/4" (31.8 mm) or 1-1/2" (38.1 mm) diameter Schedule 40 hand rail tubing
- Standard post heights: 36" (914 mm) and 42" (1.07 m); custom heights available
- Two standard stainless finishes; custom powder paint finishes available

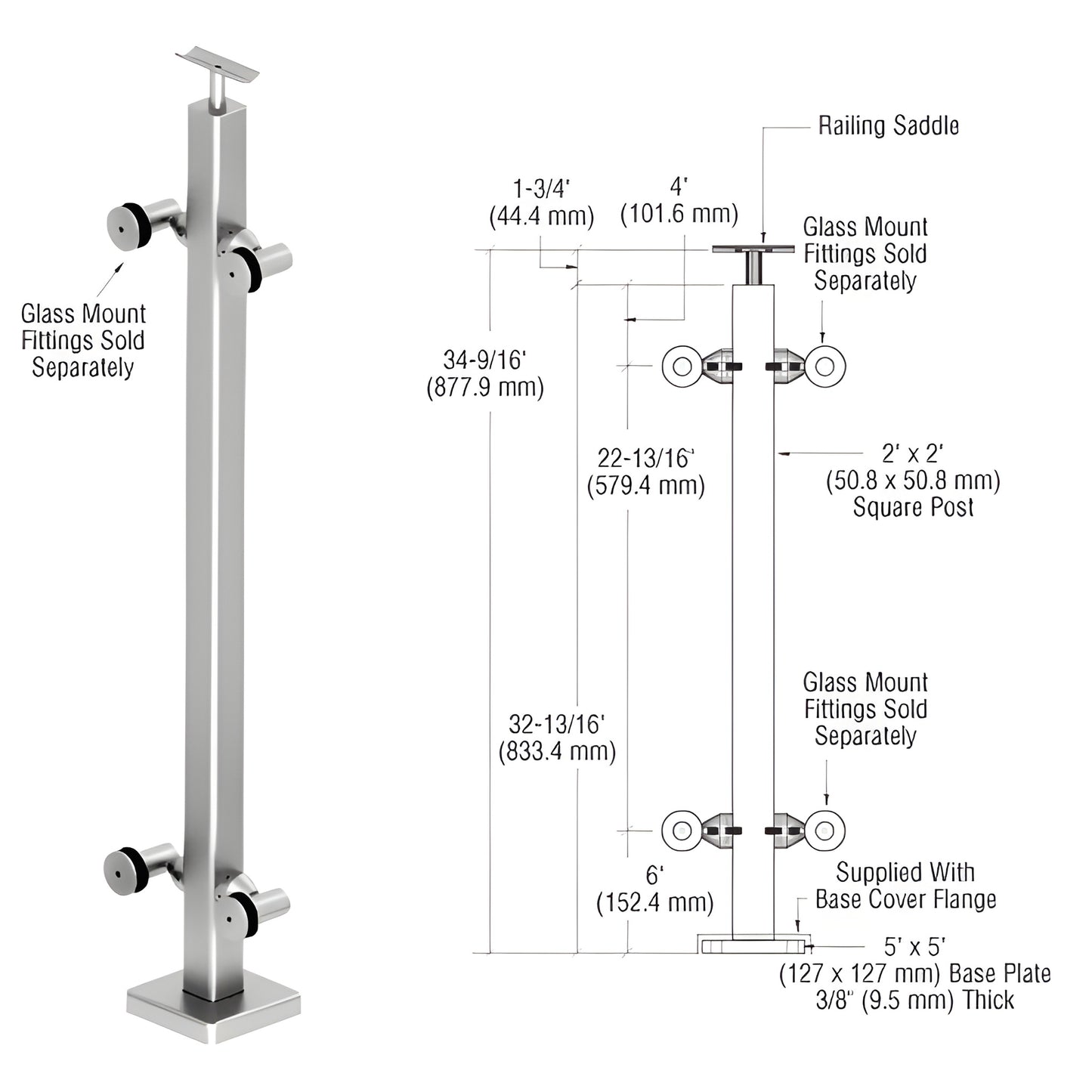

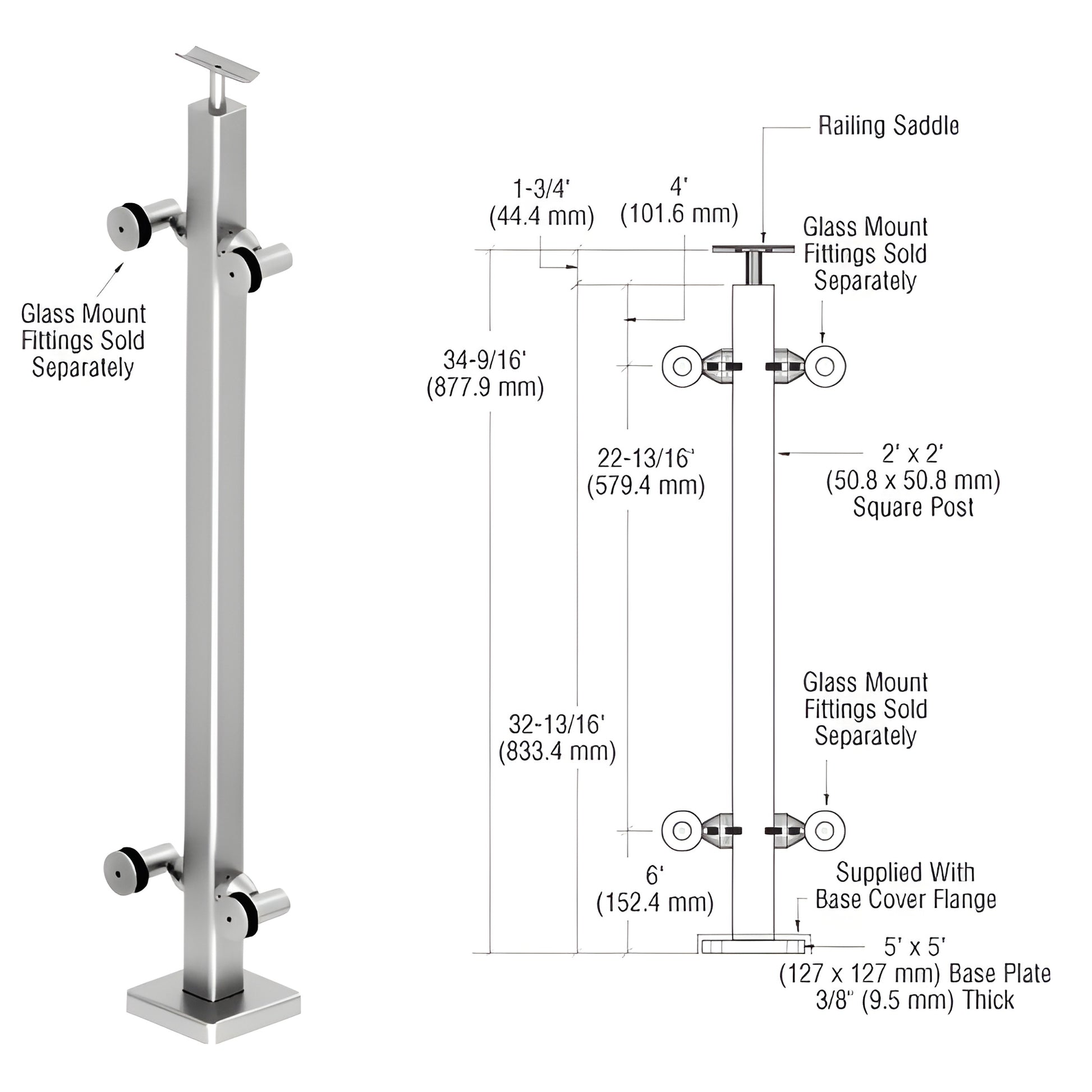

CRL P1 Post Railing Kits (SKU: P136CPSC) are surface-mounted post railing kits engineered for commercial and residential guard rail applications. Built from 2" (51 mm) square 316 alloy stainless steel tubing with a 3/16" (4.8 mm) wall thickness, these kits are corrosion-resistant and designed to meet rigorous code requirements. Each kit includes a 5" x 5" (127 x 127 mm) base plate, base cover flange, and welded top saddle. For attaching the top rail to the saddle, specify Cat. No. PRS1032 (10-32 x 5/8" stainless steel screws, 50 per pack).
Product Warning:
All P-Series post kits are sold without glass attachment fittings; glass fittings must be purchased separately.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care details.
Choose CRL P1 surface-mounted 316 stainless steel post railing kits for durable, code-compliant guard rail systems—order or request a quote today.
Specifications
Quote Request Forms
