CRL 316 Stainless Steel Double-Arm Fixed Glass Fitting Set for 1/2"
Item# RB51FPS
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |
Base Diameter
1-3/4 in. (44 mm)
Base of Fitting to Centerline of Hole
2-1/2 in. (64 mm)
Finish/Color
Polished Stainless Steel
Material
316 Stainless Steel
- Designed for railings, canopies, awnings and other point-supported glazing applications
- Complete with hardware to mount to post, column or wall
- Suitable for straight or segmented applications
- 316 alloy stainless steel construction for durability and corrosion resistance
- Compact design for minimal obstruction and clean glass sightlines
- Holds 1/2" (12 mm) tempered glazing standard; supports up to 1" (25 mm) with extension bolts (see accessories)

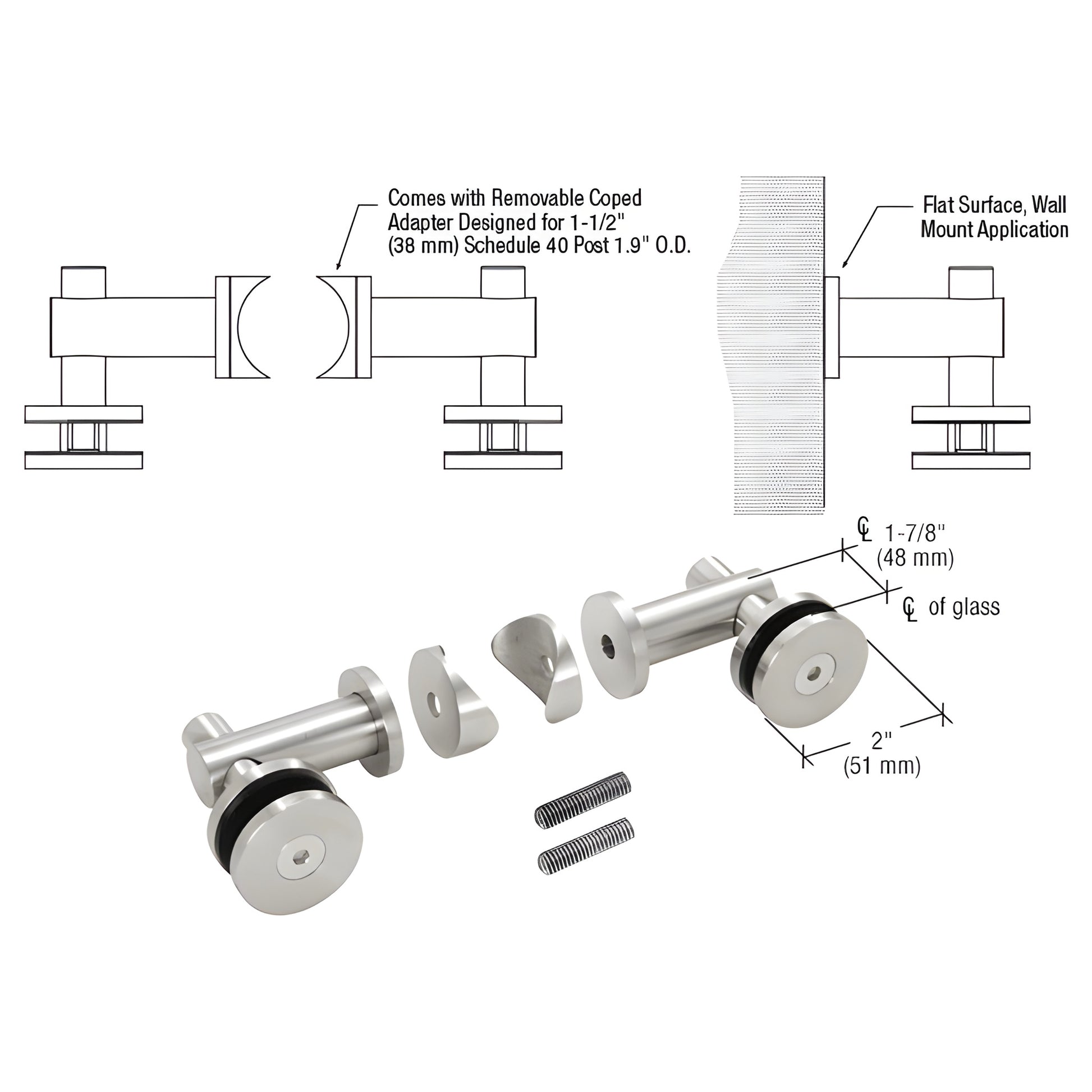

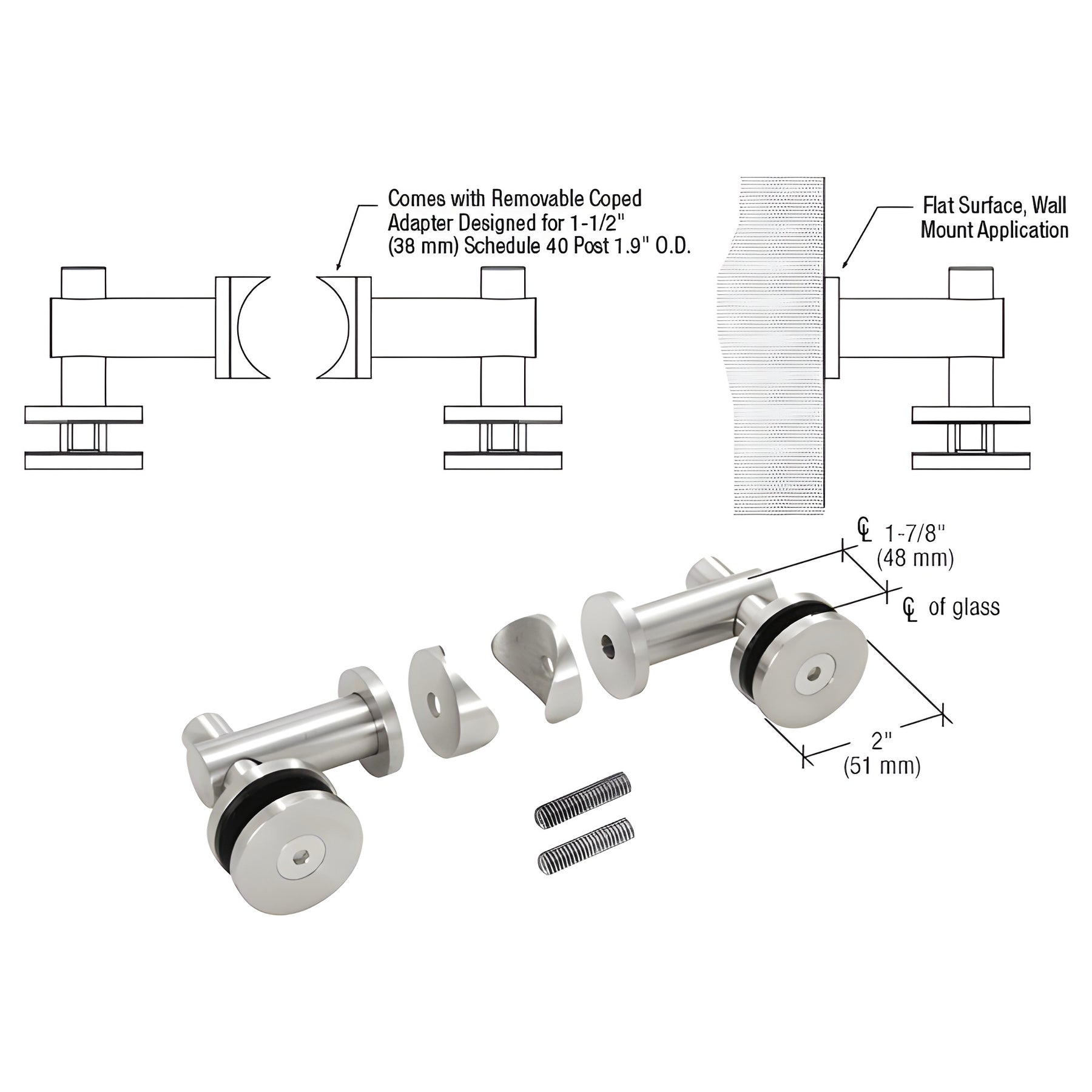

CRL Double Arm Fixed Glass Fittings (SKU: RB51FPS) are precision point-support fittings for architectural glass installations. Ideal for stainless steel glass clamps for railings, canopy glazing, awnings and frameless balustrades, these double-arm fittings mount to round or flat posts, walls, glass fins and canopy brackets. The compact profile minimizes visual obstruction while providing secure support. Available in brushed and polished stainless finishes. Includes two 3/8"-16 x 13/16" (20.6 mm) stainless steel threaded studs for attachment.
SPECIFICATIONS: For use with 1/2" (12 mm) tempered glass standard. For thicker glass, use CRL glass extension bolts (sold separately). Not for use with raw or annealed glass.
GLASS FABRICATION: One 3/4" (19 mm) diameter hole per fitting.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to placing your order. Product images are of the actual product or a close representation; colors may vary by monitor and settings.
Stainless Steel Advisory:
Although 316 stainless steel is highly resistant to corrosion, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for maintenance guidance.
Why choose RB51FPS? 316 alloy construction, compact low-profile design, and included mounting studs make these fittings a durable, low-visibility solution for point-supported glazing in exterior railings, canopies and awnings.
Order RB51FPS today or contact CRL for pricing and availability.
