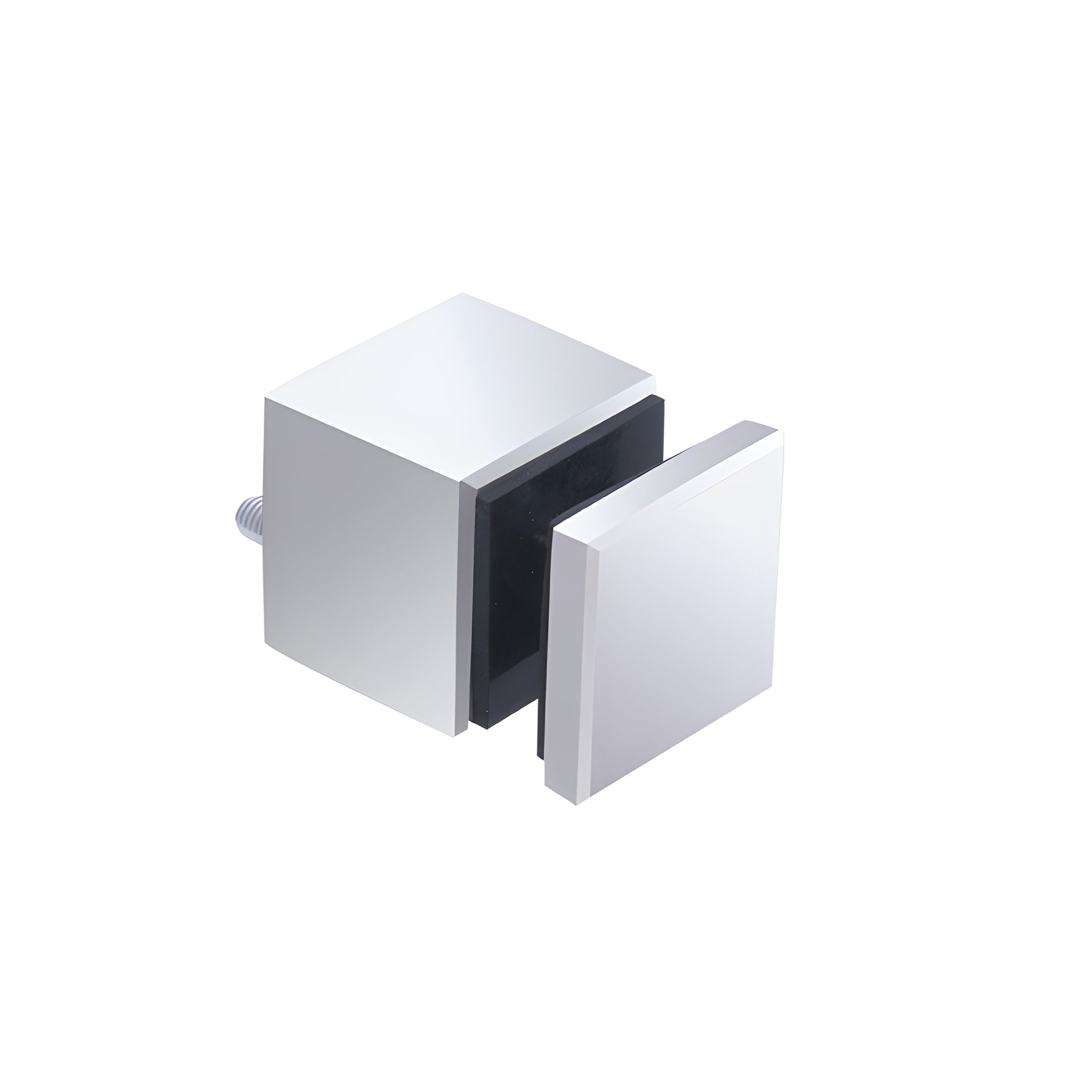

CRL 316 Polished Stainless Glass Standoff Square Base & Cap 1-3/4"

• Compact standoff assembly with base, cap, and mounting stud for anchoring to steel, concrete, or wood substrate
• Compatible with 1/2" and 3/4" (12 and 19 mm) monolithic tempered glass or 9/16" and 27/32" (13.52 and 21.52 mm) laminated tempered glass using Kuraray SentryGlas® interlayer
• High-grade 316 stainless steel construction—available in brushed or polished finishes

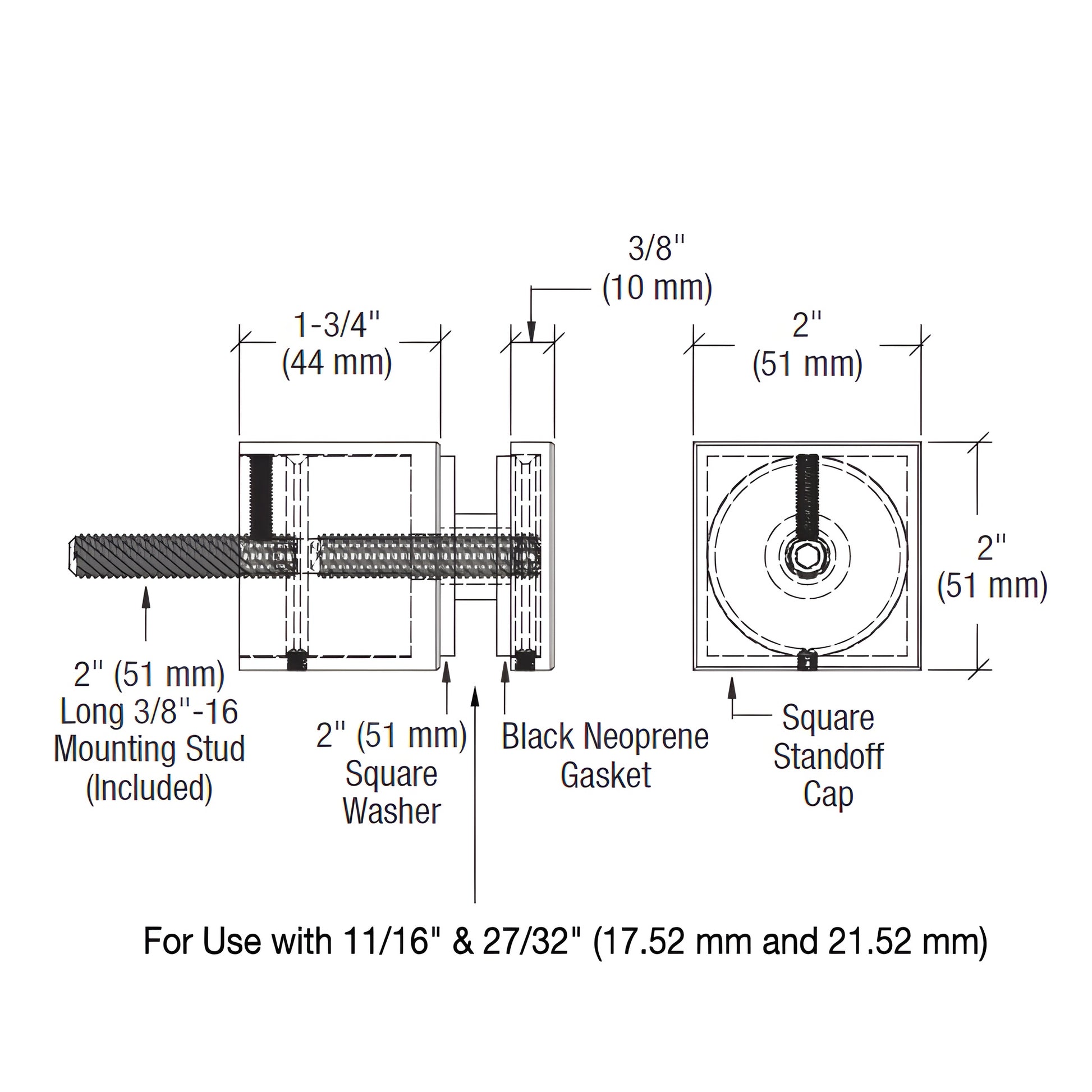

These heavy-duty CRL Glass Rail Standoff Base and Caps (SKU: SS0B2134PS) are designed for glass handrails and guardrail systems. Each 2" (51 mm) square standoff with a 1-3/4" (44.5 mm) base includes a 3/8"-16 x 2" Allen stud for steel mounting plus gaskets and a grommet. Use Cat. No. SSW12 Spanner Wrench to tighten the cap. The 316 stainless steel construction offers superior corrosion resistance for exterior and marine-adjacent glass railing projects—ideal when specifying durable glass standoff fittings for tempered glass railings.


SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) tempered monolithic or tempered laminated glass (Do not use with raw or annealed glass).
Glass fabrication: one 3/4" (19 mm) diameter hole per fitting.
Spacing: maximum spacing between fittings depends on use and mounting conditions; minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available.


Product Warning:

For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.

Stainless Steel Advisory:
