CRL 316 Polished Stainless Steel 60" Upward-Locking Ladder Pull
CRL 316 Polished Stainless Steel 60" Upward-Locking Ladder Pull
Regular price
$2,209.15 CAD
Regular price
Sale price
$2,209.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# LLPUA60PS
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.109 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Adaptor For 1 3/4 Inch Thick Doors
LLPA134ADT
Diameter
1-1/4 in. (32 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Material
316 Stainless Steel
Mounting Points
2
Mounting Type
Back-to-Back
Overall Length
60 in. (1524 mm)
Overview
- Locks into the ceiling only — no floor strikes required
- A.D.A. compatible thumbturn located at a comfortable 42" (1.07 m) above finished floor
- Adaptor kits available for use on 1-3/4" (45 mm) thick doors — LLPA134ADT
- 1-1/4" (32 mm) diameter alloy tubing in 316 Brushed or Polished Stainless Steel
- Intended for 1/2" to 3/4" (12 to 19 mm) tempered glass doors
- Custom sizes ship within one to two weeks
- A.D.A. compliant models available — ask for a quote

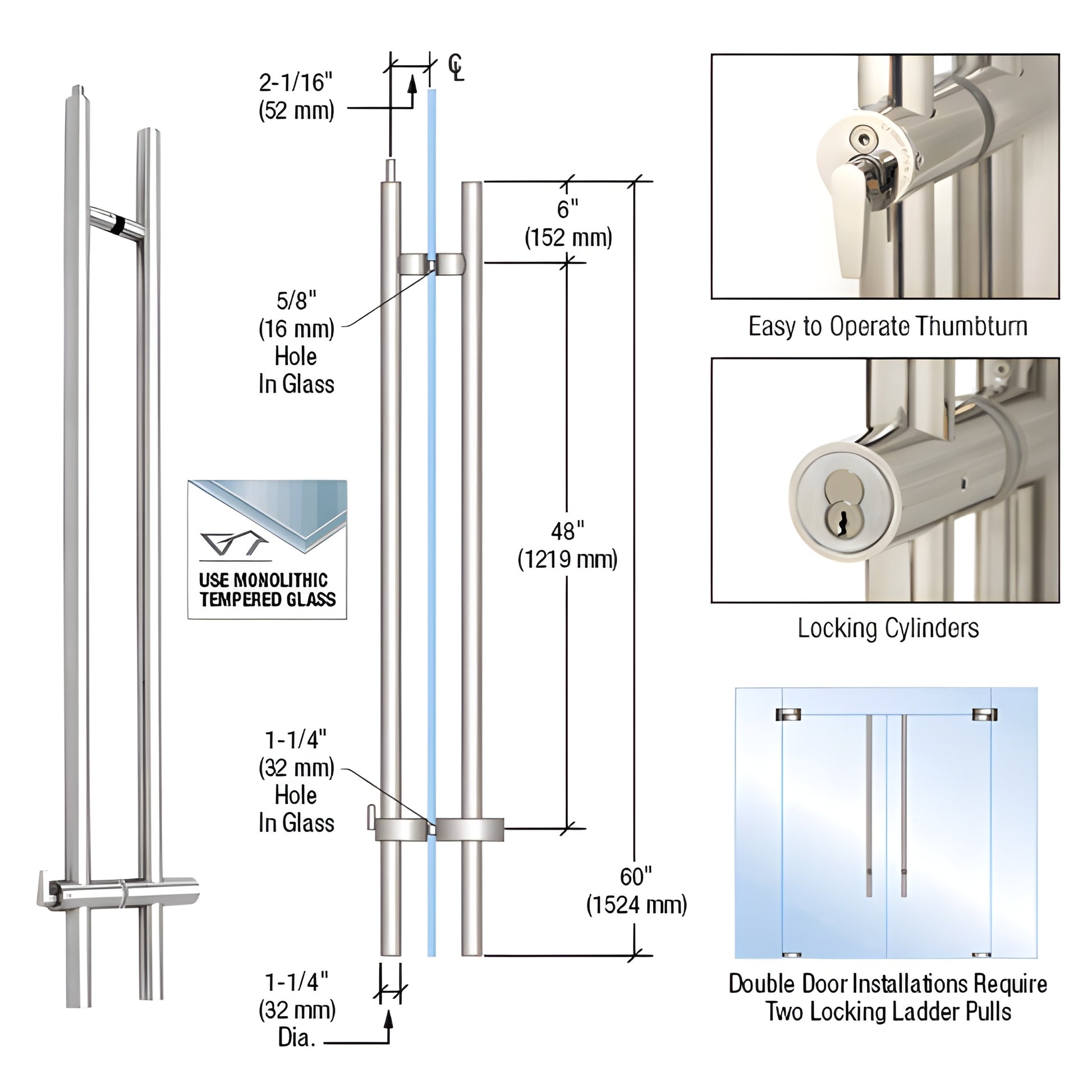

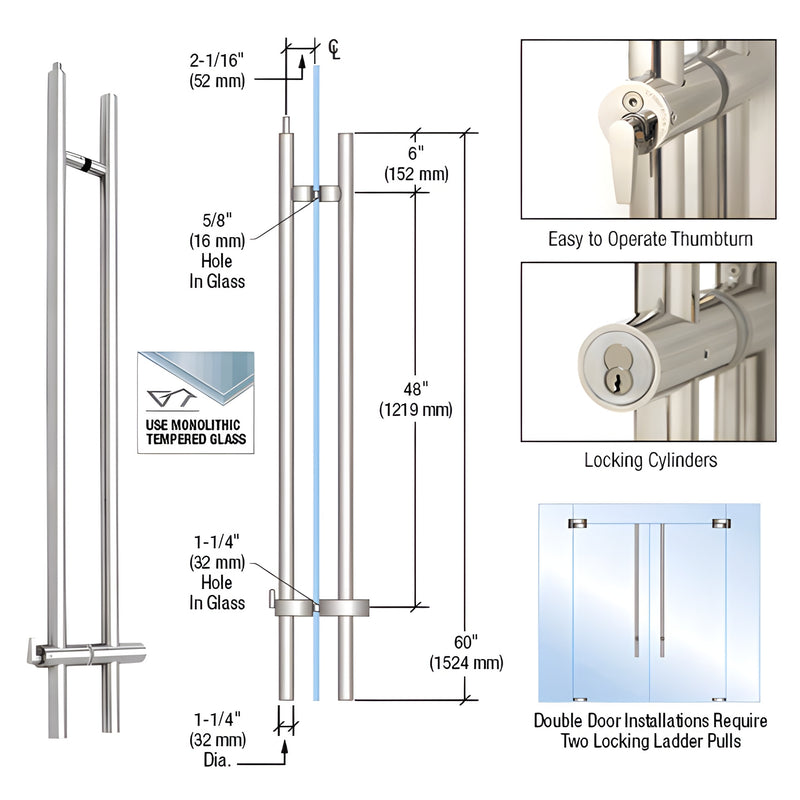

Our CRL LLPUA Series Upward Locking Ladder Pulls (SKU: LLPUA60PS) feature a fully concealed deadbolt that locks into the ceiling — ideal for glass storefronts and commercial glass doors where a floor strike is undesirable. The lock operates at an ergonomic 42" (1.07 m) above the floor using a key or A.D.A. compatible thumbturn, making it an accessible upward locking ladder pull for glass doors in public and commercial spaces. Available finishes: brushed and polished stainless steel (316).
Supplied with a standard 7-pin Rim Cylinder with Interchangeable Core — use it as-is, remove the core for re-keying, or replace the entire rim cylinder to accept most standard rim-type cylinders. 6-pin proprietary cylinders can also be installed by replacing the supplied rim cylinder. Push/pull indicators and dustproof keepers sold separately. NOTE: Glass fabrication is required.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
For pricing, custom sizes, or to request A.D.A. compliant options for your project, contact CRL Customer Service or request a quote today.
Specifications
CAD Drawings - dwg
