Product Details
- Low Profile Cap Railing that Meets Guard Rail Load Requirements
- Designed for 27/32" (21.52 mm) Laminated Glass (10 x 1.52 x 10 mm Glass Make Up)
- Connects to Fabricated Corners and End Caps
- Cut-to-Size or Custom Fabricated Lengths
- 316 Stainless Alloy
- Use Laminated Tempered Glass

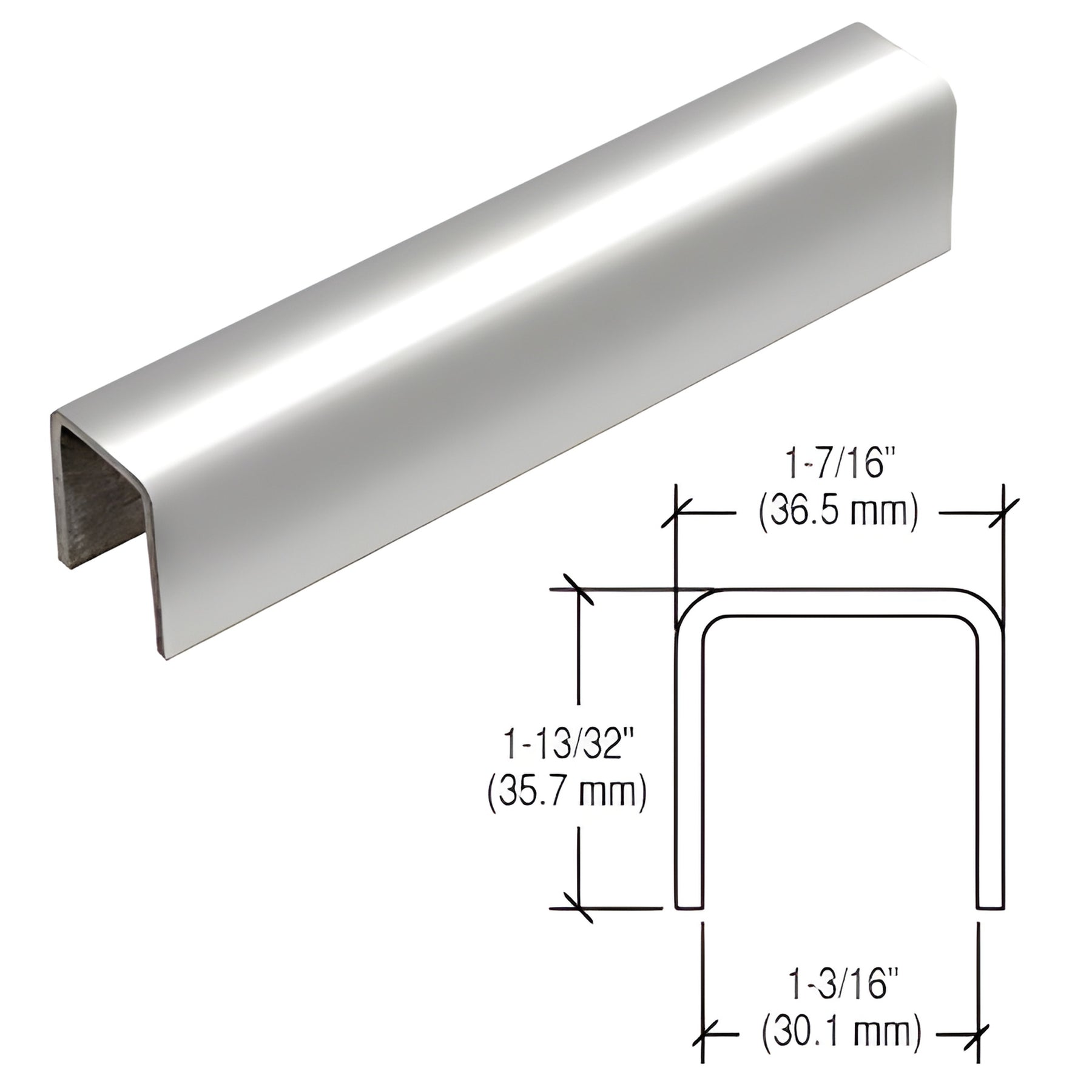

CRL Low Profile U-Channel Cap Railing is designed for guard rail applications and is offered in two architectural finishes. The low profile design allows for a virtually unobstructed view. Use of our LR21PV Cap Railing Rubber Insert and 95CBL Silicone is required to achieve a secure and permanent bond.
SPECIFICATIONS:
Material: 316 Stainless Steel
Thickness: 11 Gauge
Stock Length: 118-1/8" (3 m)
Typical Uses: Protects the Edge of 21.52 mm Laminated Glass and Secures Glass Panels Together in Cap Railing Installations
Product Warning:
SS Channel or bar must ship via Common Carrier only, NO UPS. Cannot be cut-to-size.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
