CRL 316 Polished Stainless Square Surface Mount Glass Clamp 3/4"
CRL 316 Polished Stainless Square Surface Mount Glass Clamp 3/4"
Regular price
$62.30 CAD
Regular price
Sale price
$62.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# Z734PS
Shipping Weight: 1.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

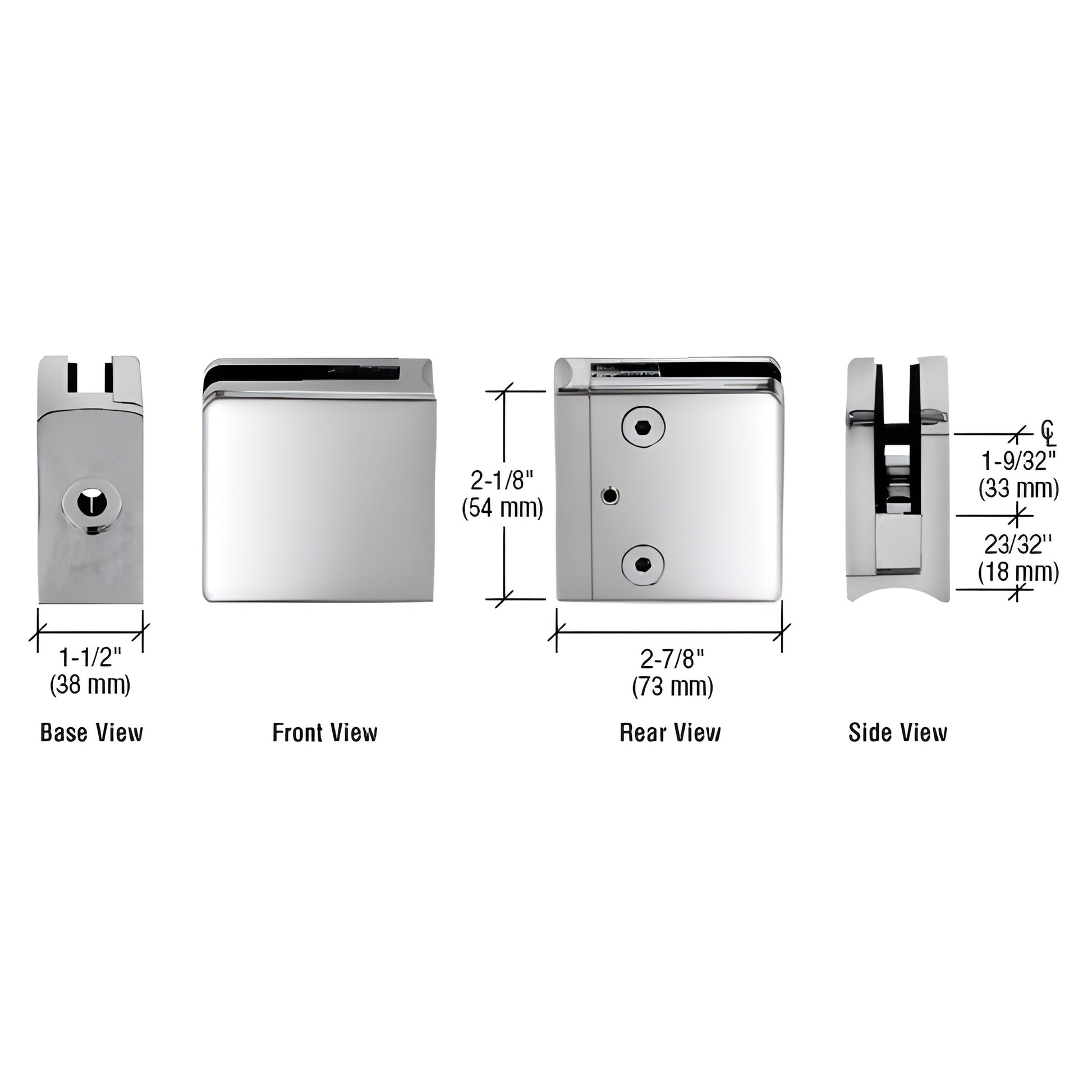

Description
Base Type
Radius
Depth
3/4 in. (19 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Height
2-5/16 in. (59 mm)
Material
316 Stainless Steel
Profile
Square
Width
2-1/8 in. (54 mm)
Overview
- For 3/4" (19 mm) glass — radius surface mounting
- Designed for 2" (51 mm) diameter round tubing
- 316 alloy stainless steel construction for corrosion resistance
- Use with monolithic tempered glass
CRL Replacement Gaskets are available for both square and round Z-Clamps and for 1/4", 3/8", 1/2", and 5/8" (6, 10, 12, and 16 mm) thick glass. Two gaskets per pack.
SPECIFICATIONS:
SKU: Z734PS
Glass Thickness: 3/4" (19 mm)
Base Design: Radius surface mount
Fits Tubing: 2" (51 mm) diameter round tubing
Material: 316 alloy stainless steel
Glass Fabrication: One 7/8" (22 mm) diameter finger notch required. Included steel pin must be used for 3/4" (19 mm) glass applications.
Includes: Rubber gaskets and steel pin
Product Warning:
For interior and exterior installations, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Ideal for glass railing and balustrade projects requiring a heavy-duty, radius surface-mount clamp — order SKU Z734PS today.
