- High Grade 316 Stainless Steel Alloy Standard- Patented Wedge-Lock® Glass Securing System
- Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
- For Use with 11/16" & 27/32" (17.52mm and 21.52 mm) Laminated Glass Using Kuraray SentryGlas® Interlayer
- Designed to Mount to Wood, Concrete or Steel
- Custom Finishes Available
- Weight: 7.45 lbs (3.38 kg)
Our

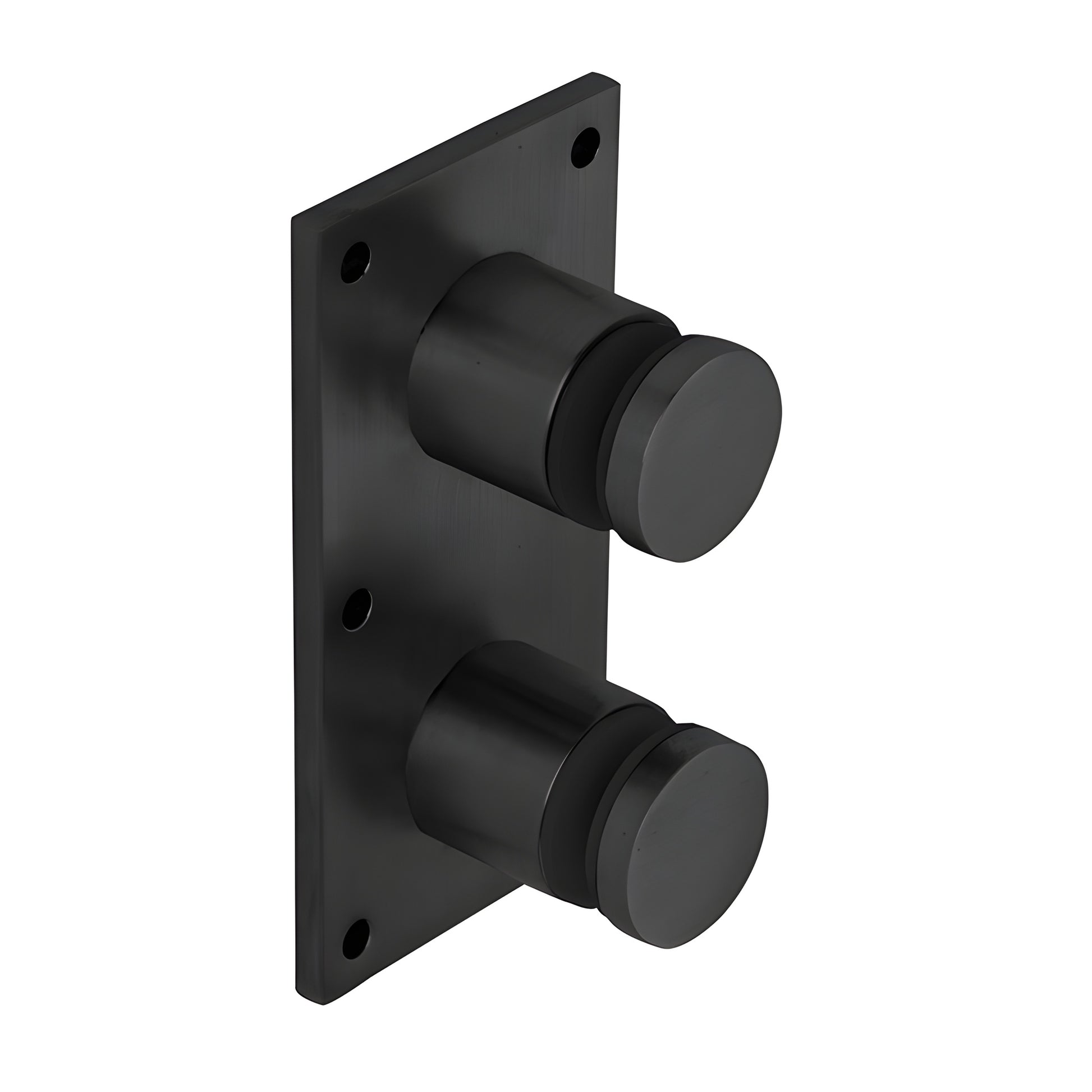

CRL Glass Rail Standoff Fittings

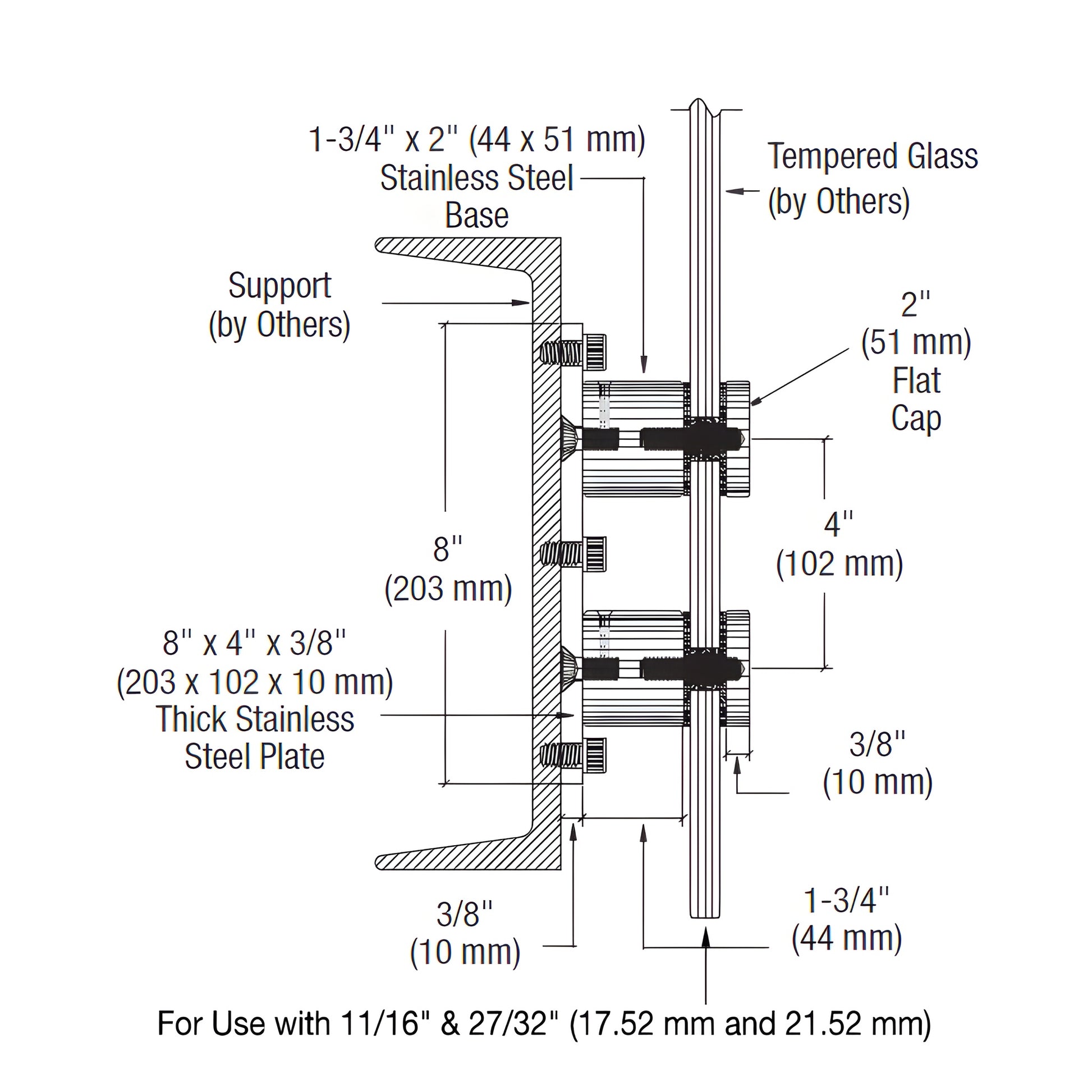

can be used to mount glass up to 27/32" (21.52 mm) thick. This Alloy 316 stainless steel assembly can be mounted to a wood, concrete, or steel substrate, and features 2" (51 mm) diameter caps on threaded bolts to secure the glass. The 2" (51 mm) diameter Standoffs are fastened to a 3/8" (10 mm) thick stainless steel plate that is pre-drilled for mounting. Two popular stainless finishes are available from stock.
SPECIFICATIONS
For use with 11/16" & 27/32" (17.52 & 21.52 mm) Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass) Glass Fabrication: Two 3/4" (19 mm) Diameter Holes Per Fitting Spacing: Maximum spacing between fittings depends on use and mounting conditions; Hole spacing between Standoffs is 4" (102 mm).
Product Warning
For use with 11/16" & 27/32" (17.52 mm – 21.52 mm) tempered laminated glass. Do not use with raw or annealed glass)
NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
