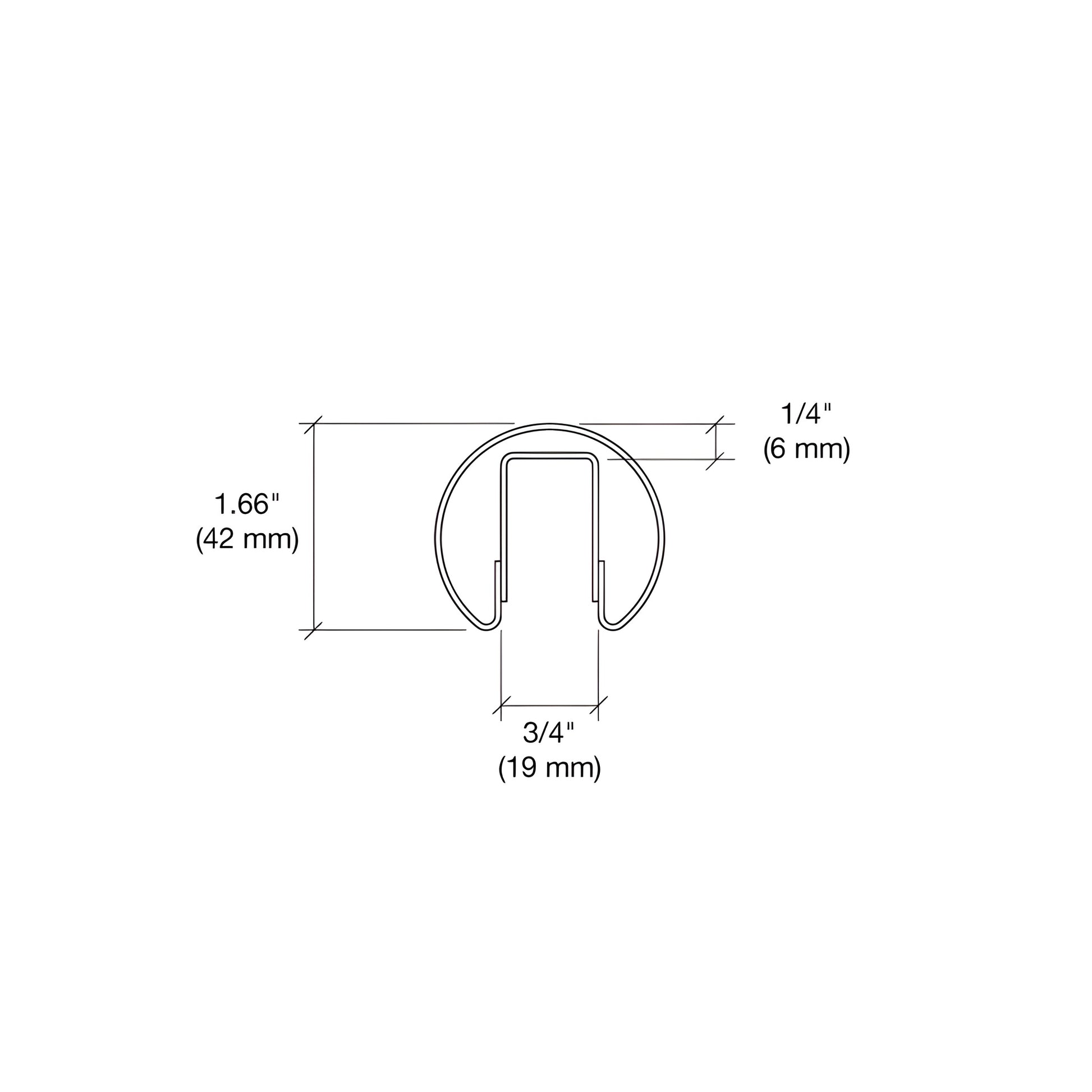

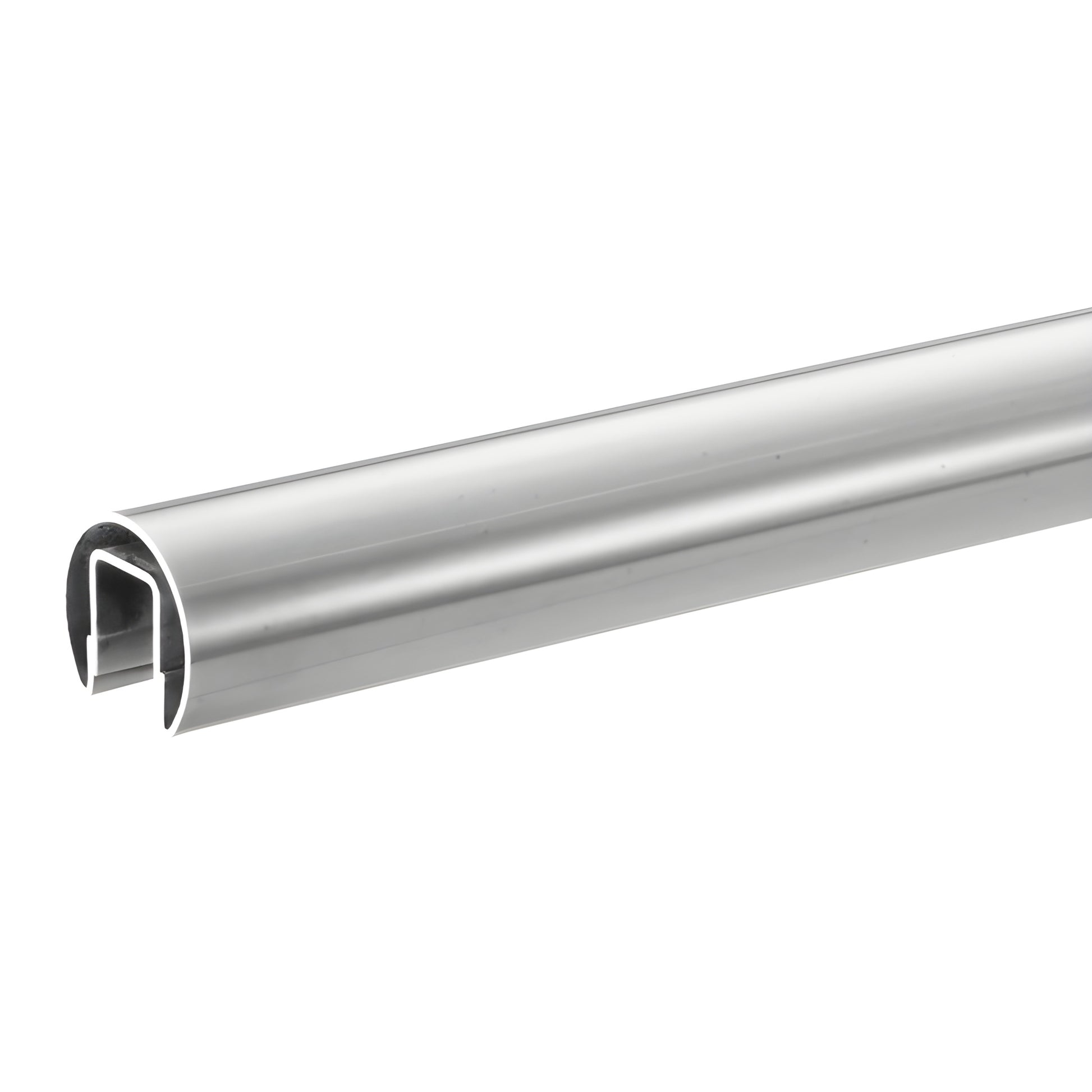

CRL 316 Stainless Cap Rail 1.66" for 1/2" Glass Railing - 120"

• Bump-Formed, Welded Cap Rails in 120" (3.05 m) and 168" (4.27 m) stock lengths
• Available in seven diameters: 1-1/2" (38.1 mm) to 4" (101.6 mm)
• Four architectural finishes for interior and exterior railing applications
• Connects to a variety of fabricated corners and end caps; cut-to-size and custom fabricated lengths available
• Stainless: Alloy 304 standard; Alloy 316 available in two sizes
• Brass: Alloy 260 standard
• Use connector sleeve No. GR16CSS (also see Connector Sleeves link below)

CRL's Premium Cap Rails are manufactured using a precision Bump-Forming process that delivers tighter tolerances, consistent radius, and minimal stress or spring-back compared with roll-formed cap rails. Welded internal channels add strength and stability, producing a premium railing product that fits into welded corners without twist or discoloration—ideal for architectural handrail and glass railing systems.

All Premium Cap Rails are formed with precision tooling for uniform diameters and hairline transitions at splices, corners, and end caps. Connector sleeves (Cat. No. GR16CSS) are recommended for secure joins. Use 32629 Metal Contact Cement for permanent bonding at connections.

Glass installation notes:

• With 1/2" (12 mm) glass: use Cat. No. GR5PV Cap Rail Vinyl plus 95CBL Silicone.
• With 5/8" (16 mm) glass: use 95CBL Silicone and shims to secure the glass.
• With 3/4" (19 mm) glass: use 95CBL Silicone and shims.

For connector sleeves and compatible accessories, see Connector Sleeves.

Material and ordering: Standard stock is sold in 120" (3.05 m) lengths; 168" (4.27 m) and custom lengths are available. Stainless alloy 304 is standard; stainless 316 available by special order. For technical assistance or quotes, please contact CRL Technical Sales.

SKU: GR16PS6
