Product Details
- Compact Design with Base, Cap, and Mounting Stud for Mounting to Steel, Concrete, or Wood Substrate
- For Use With 1/2" and 3/4" (12 and 19 mm) Monolithic Tempered Glass or 9/16" and 27/32" (13.52 and 21.52 mm) Laminated Tempered Glass Using Kuraray SentryGlas® Interlayer
- High Grade 316 Stainless Steel

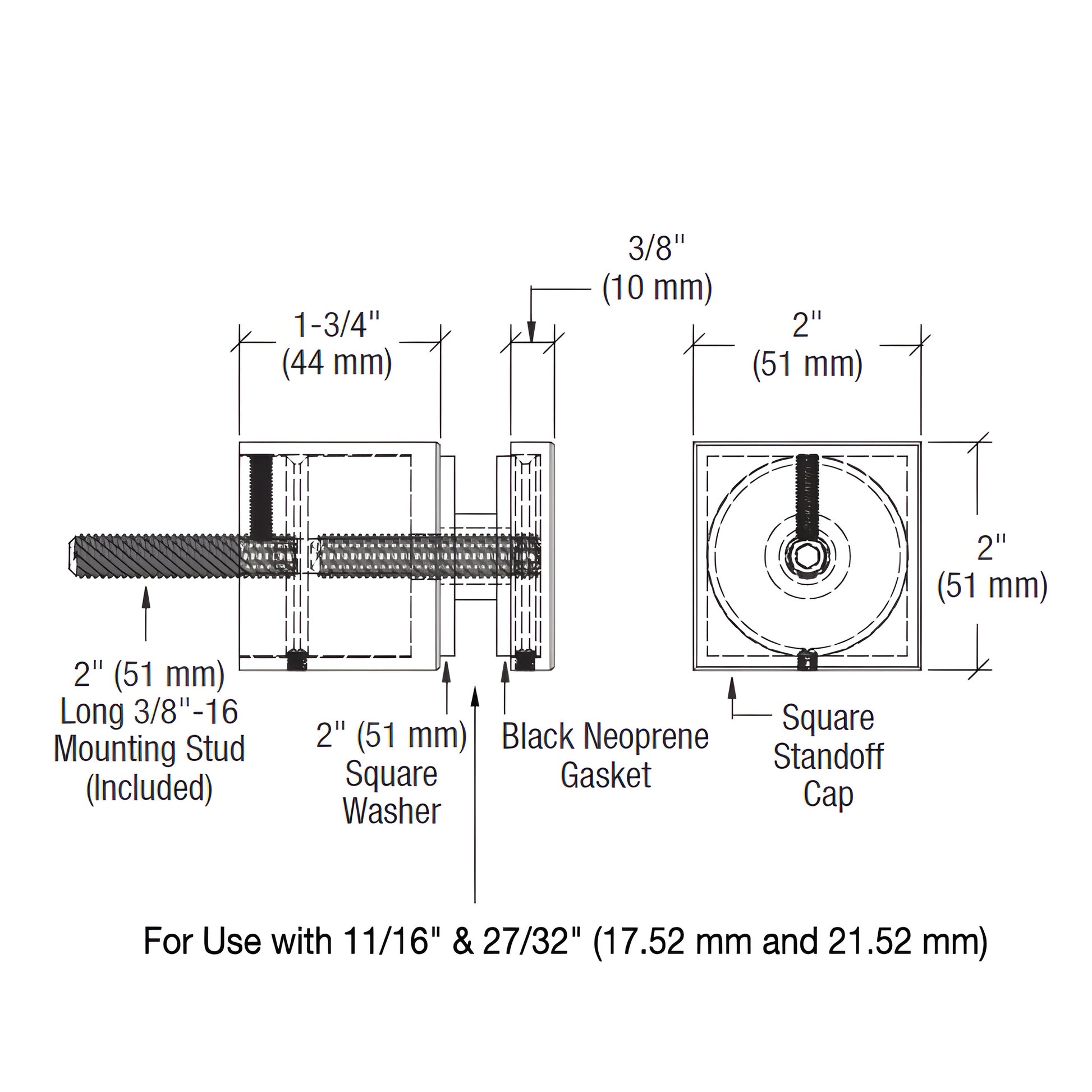

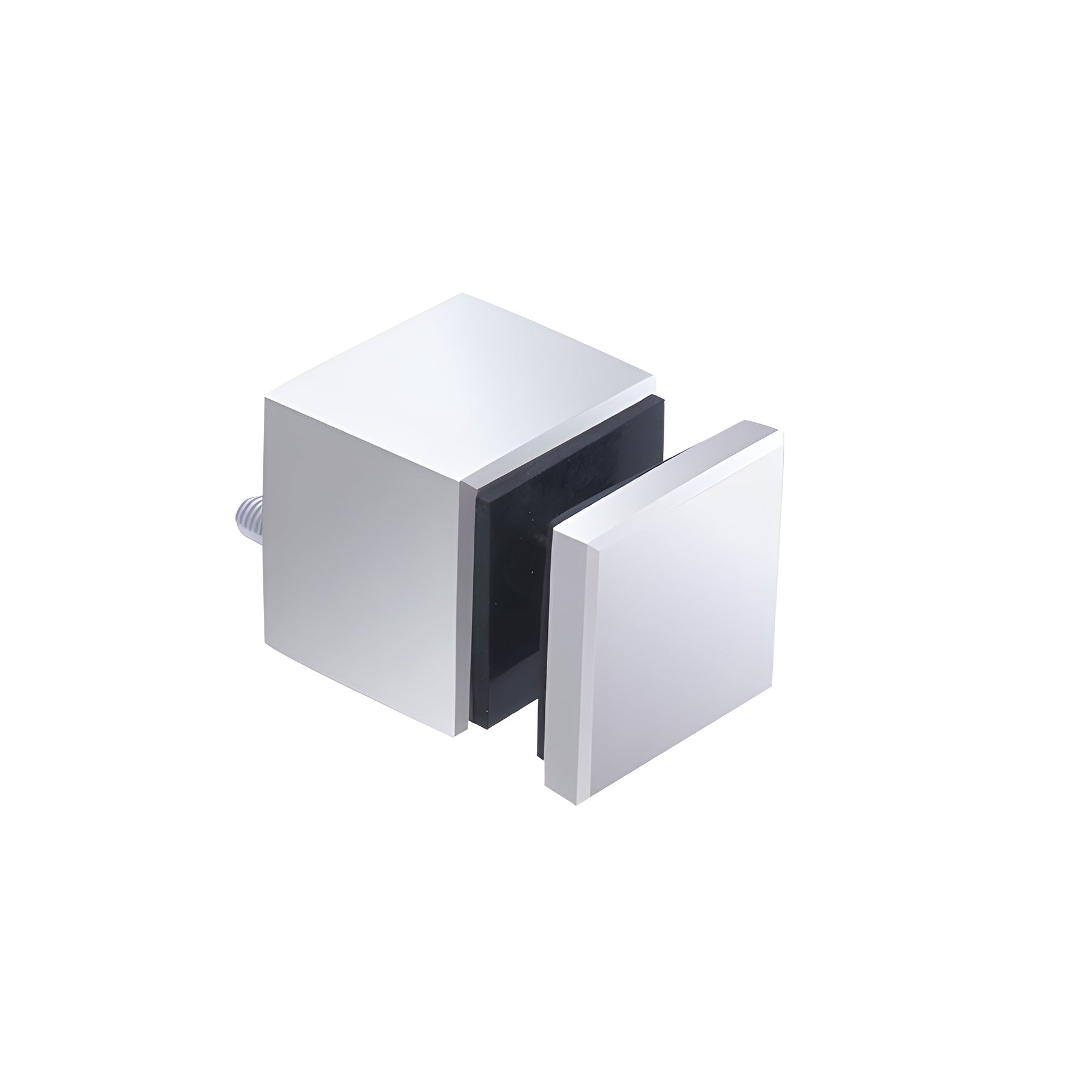

These heavy-duty CRL Glass Rail Standoff Base and Caps work with hand or guard railings. The standoff fitting is 2" (51 mm) square with a 1-3/4" (44.5 mm) base. It comes with a 3/8"-16 x 2" Allen stud for mounting to steel, along with necessary gaskets and grommet. Use our Cat. No. SSW12 Spanner Wrench to tighten the cap. Fabricated with 316 grade stainless steel in brushed or polished finishes.
SPECIFICATIONS:
For use with 1/2"–27/32" (12–21.52 mm) Tempered Monolithic or Tempered Laminated Glass (Do Not Use with Raw or Annealed Glass)
Glass Fabrication: One 3/4" (19 mm) Diameter Hole Per Fitting
Spacing: Maximum spacing between fittings depends on use and mounting conditions; Minimum hole spacing between standoffs is 4" (102 mm). An Engineering Report is available.
Product Warning:
For use with 1/2" to 27/32" (12 to 21.52 mm) tempered monolithic or tempered laminated glass. Do not use with raw or annealed glass. NOTE: Bracket spacing and maximum glass panel widths vary depending on use and mounting conditions.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
