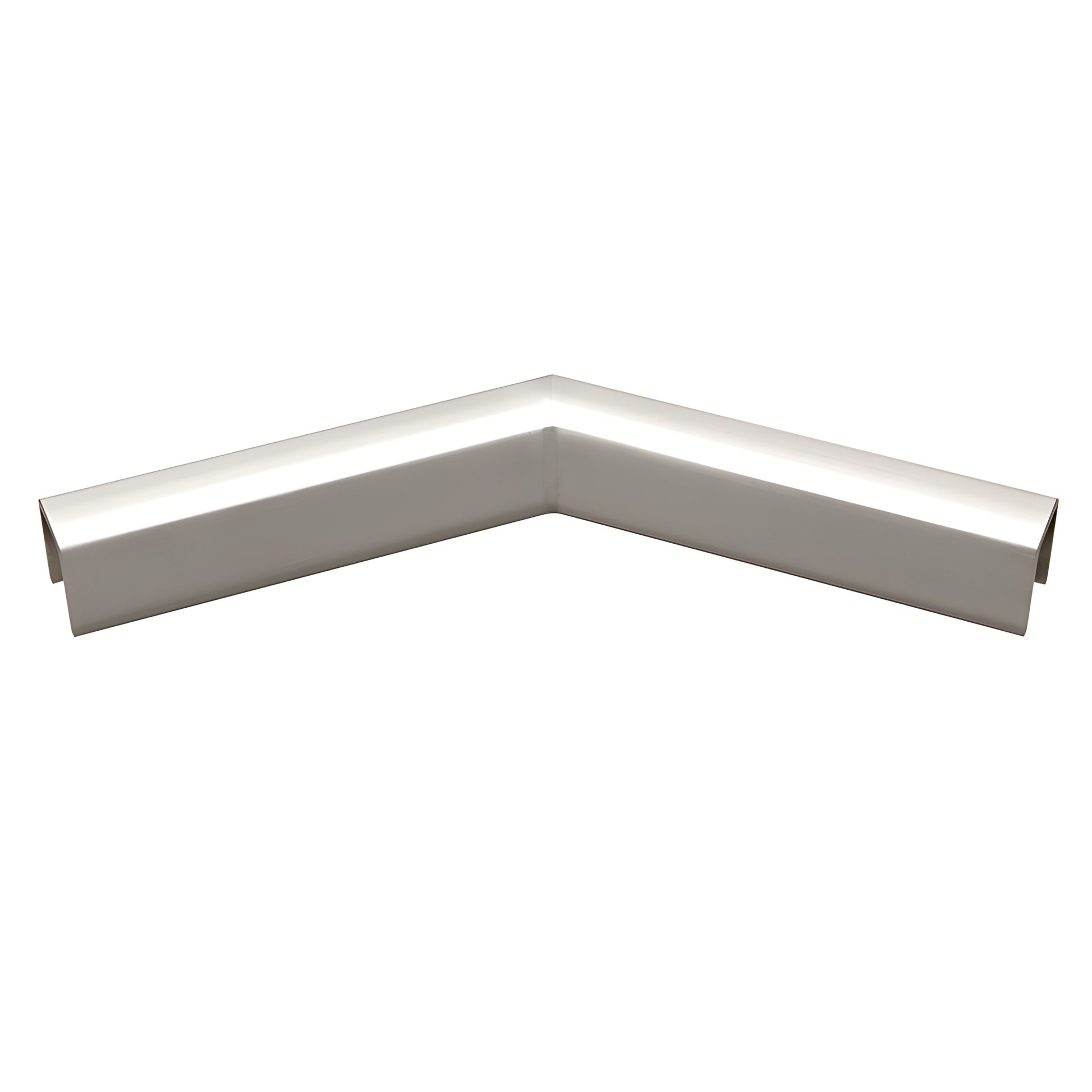

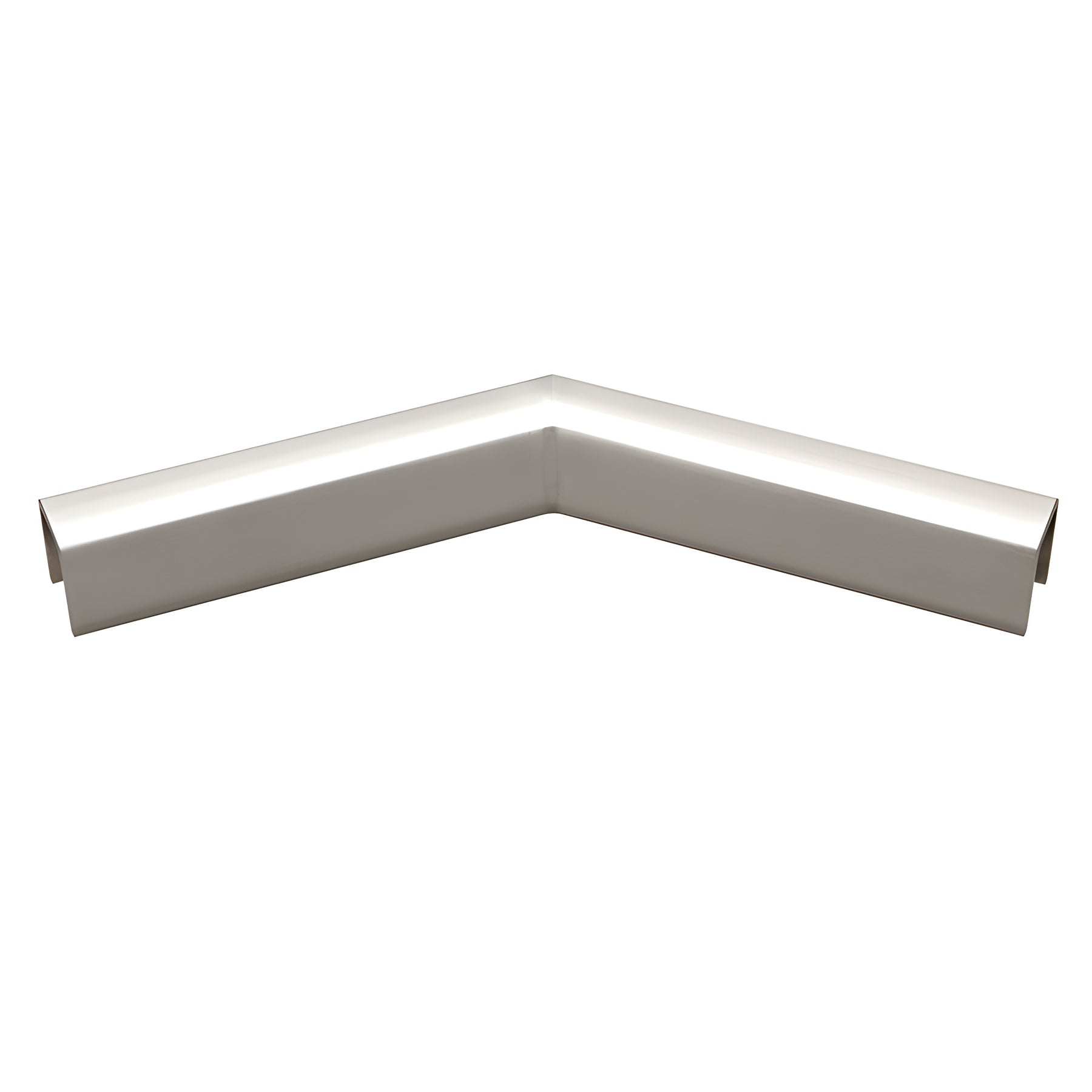

CRL 316 Stainless Steel 11-Gauge 135° Cap Rail Corner for 1/2" Glass
CRL 316 Stainless Steel 11-Gauge 135° Cap Rail Corner for 1/2" Glass
Regular price
$725.91 CAD
Regular price
Sale price
$725.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10H3PS
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.35 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description

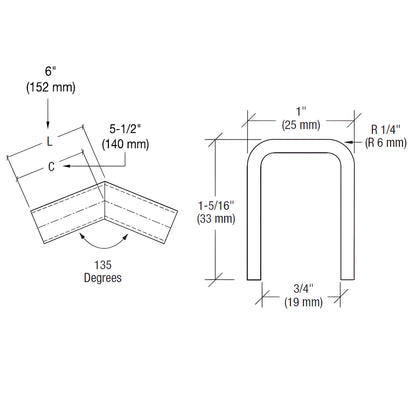

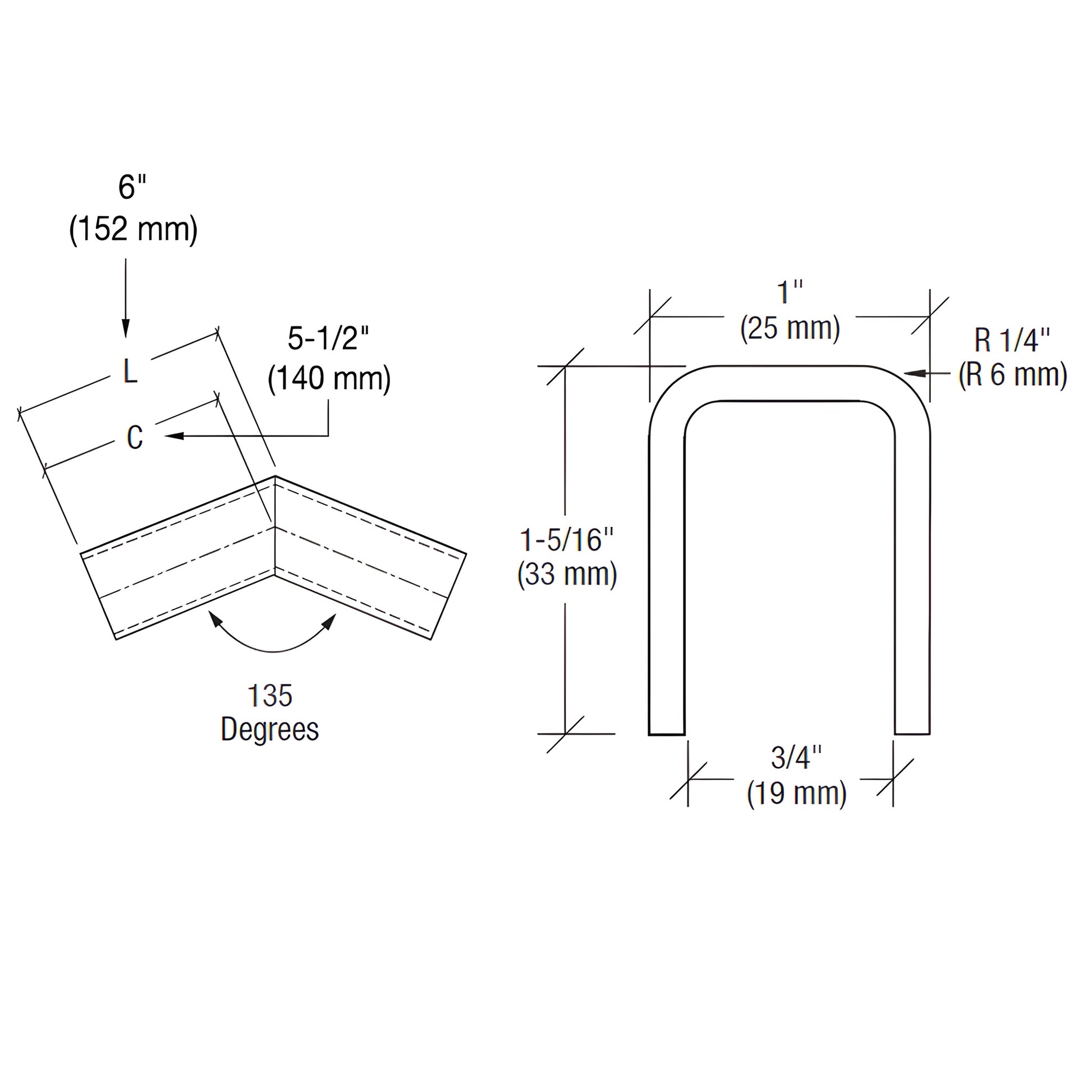

Angle
135
Centerline
5-1/2 in. (139.7 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Length
6 in. (152.4 mm)
Material
316 Stainless Steel
Overview
- Two Profiles for 1/2" (12 mm) or 5/8" (16 mm) Glass
- Two Finishes Available
- Welded and Finished
- Ready-to-Install
CRL Slip-Fit 135 Degree Horizontal Corners (SKU: GRL10H3PS) are engineered for 11 Gauge Cap Railing assemblies to create clean, hairline joint corners on glass railing runs. Designed for 1/2" (12 mm) or 5/8" (16 mm) tempered glass, these 135° horizontal corner connectors provide a durable, low-profile solution for frameless and cap-rail glass balustrades. Two connector sleeves are required per corner. Standard stainless alloy: 316.
Installation & bonding: Use CRL Cat. No. 32629 Metal Contact Cement for a secure, permanent bond between the corner and cap rail. When installing with 1/2" (12 mm) glass, use GR5PV Cap Rail Vinyl plus 95CBL Silicone to secure the glass. When using 5/8" (16 mm) glass, secure with 95CBL Silicone and shims only.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not impervious to staining or rust. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order SKU GRL10H3PS for 135 degree horizontal corner connectors compatible with 11 Gauge Cap Railing. Contact CRL or add to cart to get started.
