CRL 316 Stainless Steel 11-Gauge Cap Rail for 1/2" & 5/8" Glass
CRL 316 Stainless Steel 11-Gauge Cap Rail for 1/2" & 5/8" Glass
Regular price
$1,547.14 CAD
Regular price
Sale price
$1,547.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GRL10PS
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel

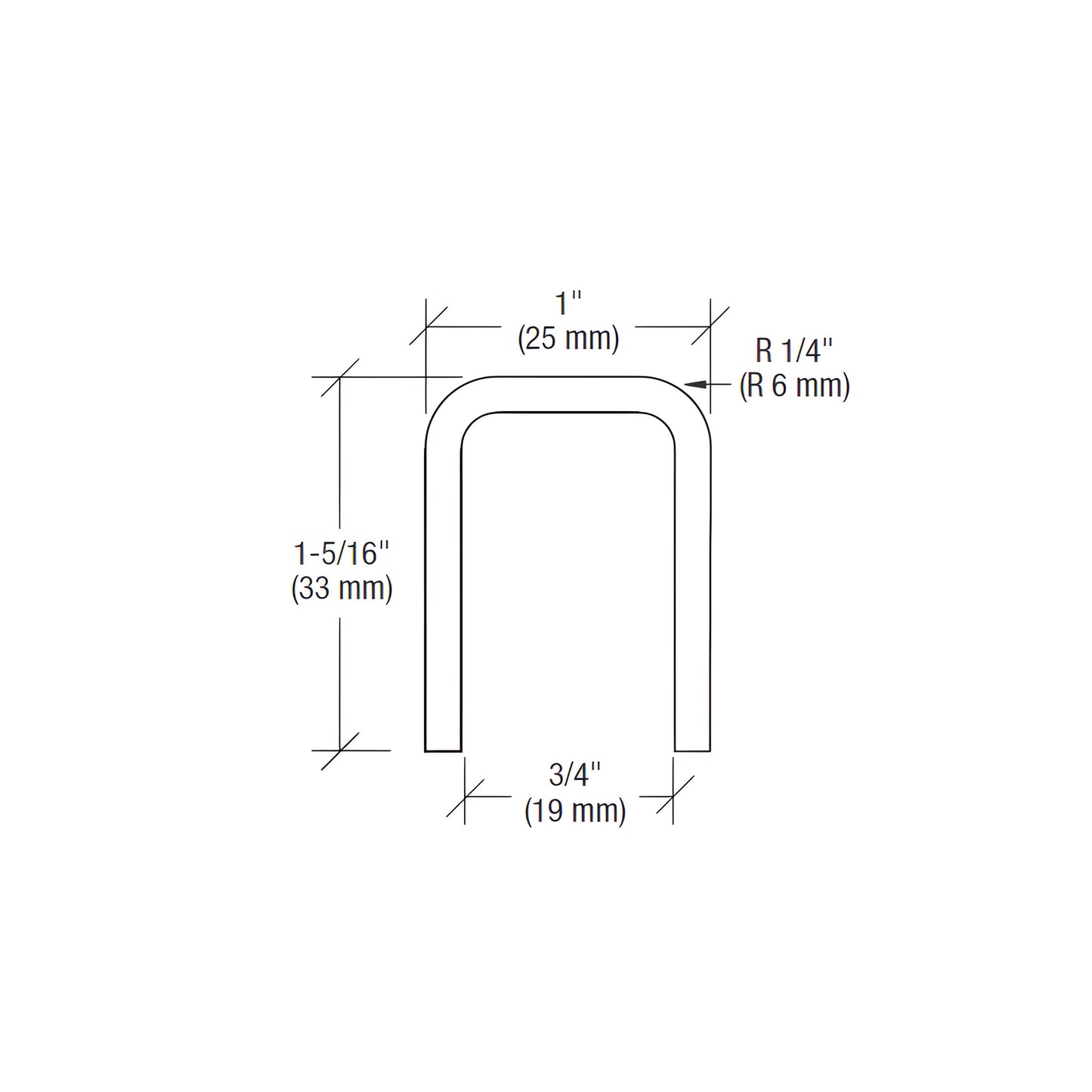

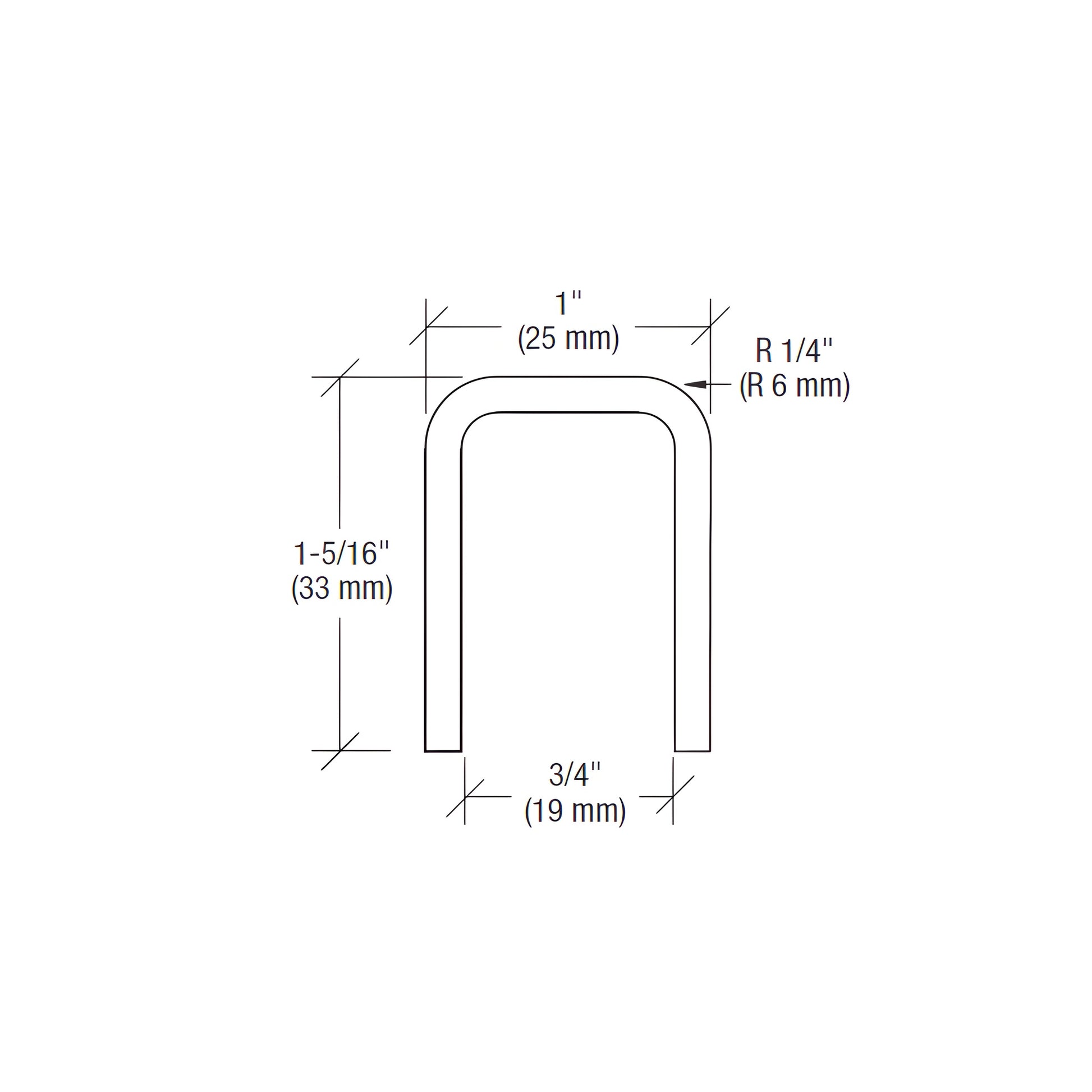

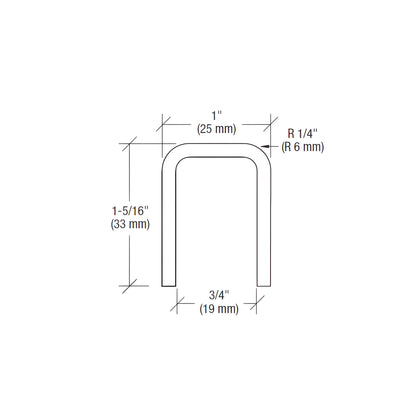

Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Height
1-5/16 in. (33 mm)
Length
120 in. (3048 mm)
Material
316 Stainless Steel
Width
1 in. (25 mm)
Overview
- For 1/2" (12 mm) or 5/8" (16 mm) monolithic glass
- Designed as a top rail for guard rail and glass railing applications
- Protects glass edge
- Secures adjacent glass panels together
- Available in two architectural finishes
- Connects to fabricated corners and end caps

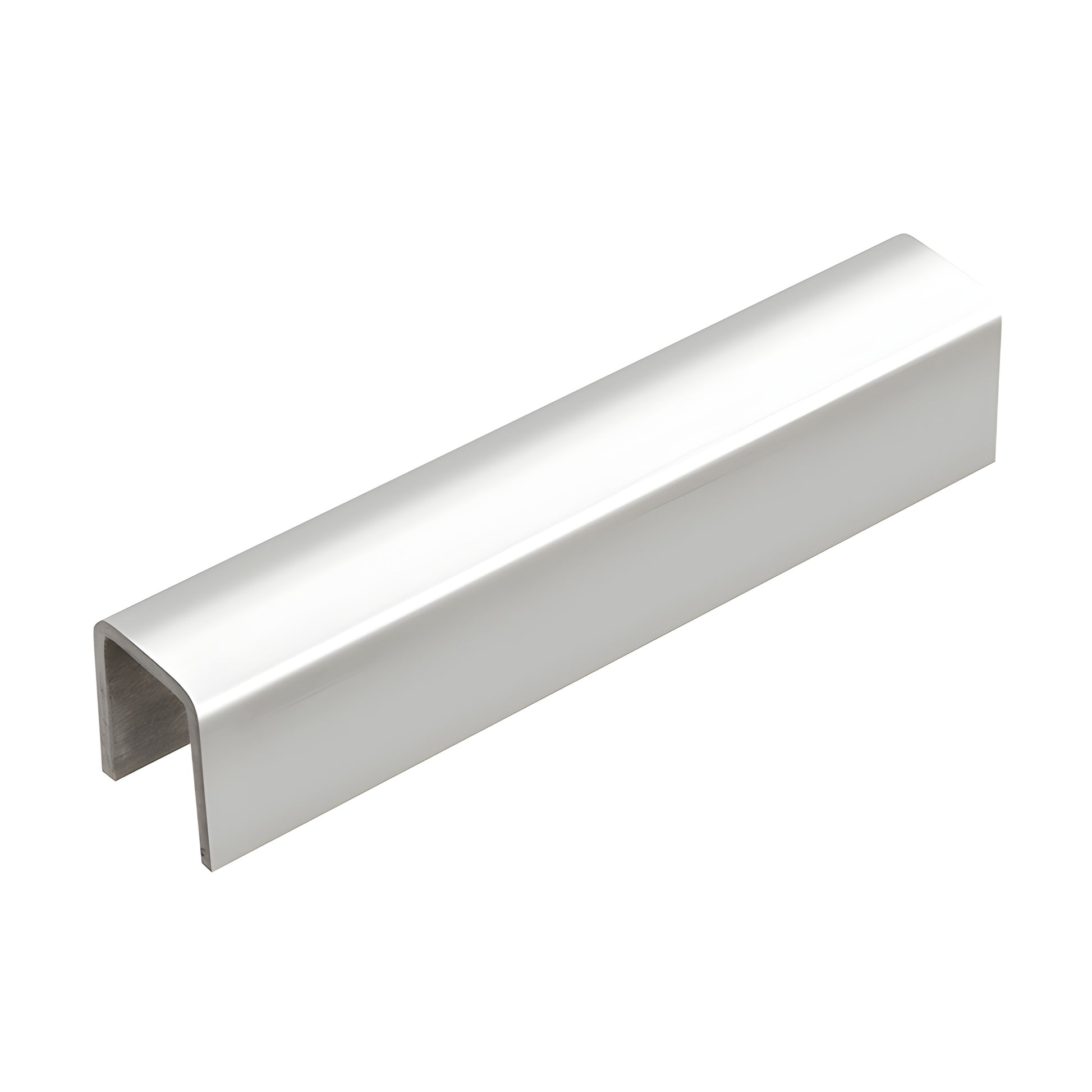

CRL Low Profile Cap Rail (SKU: GRL10PS) is fabricated from 11 gauge stainless steel to provide a low-profile, durable top rail that protects the glass edge and secures panels in glass guardrail installations. Its slim appearance and stainless construction make it ideal for architectural railing systems where a discreet, corrosion-resistant cap rail is required.
NOTE: When used with 1/2" (12 mm) glass, use GR5PV cap rail vinyl and 95CBL silicone to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL silicone and shims. For additional technical guidance, contact the CRL Technical Sales Department.
SPECIFICATIONS:
Stock Length: 10' (3.05 m)
Typical Uses: Protect edges of monolithic glass and secure glass panels together in cap railing/guardrail installations
Stainless Steel Advisory:
Although stainless steel is corrosion-resistant, it is not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References section for more information.
Need help specifying GRL10PS for your project? Contact CRL Technical Sales for fast assistance and installation recommendations.
Specifications
CAD Drawings - pdf
