- For 1/2" to 27/32" (12 to 21.52 mm) Glass
- 316 Grade Stainless Steel
- 19'-8" (6 m) Stock Lengths Available in Two Architectural Finishes
- Designed for Interior or Exterior Applications Connects to Fabricated Corners and End Caps
- Cut to Size, Custom Fabricated Lengths, and Custom Finishes Available on Special Order
CRL Roll Formed Square Cap Rails offer a less expensive alternative over our Premium Cap Rails, but still maintain the look and performance required in a glass railing system. Cap Rails support a wide range of glass thicknesses by using different Cap Rail Protective Rubber Inserts. All CRL Roll Formed Square Cap Rails are made using precision tooling to maintain uniform squareness, allowing for smooth hairline transitions at splices, corners, and end caps. Use only our specified Roll Formed Square Cap Railing Connector Sleeves, along with Cat. No. 7649 Primer, and Cat. No. 32629 Metal Contact Cement to achieve a secure and permanent bond at all connections.

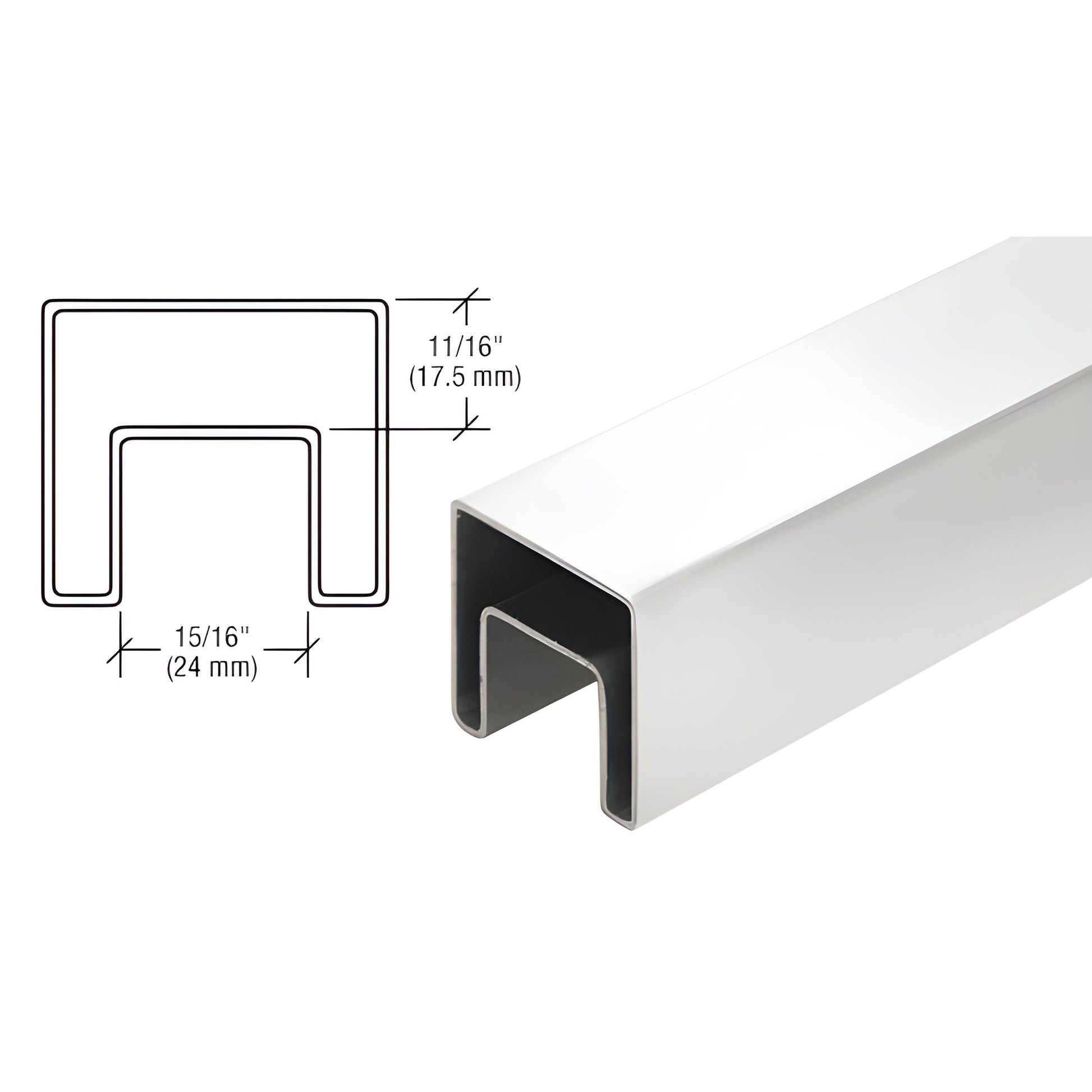

SRF15 Series 1-1/2" (38 mm) Square Cap Rail for 1/2", 9/16", and 5/8" (12, 13.52, and 16 mm) Glass. SRF20 Series 2" (51 mm) Square Cap Rail for 1/2", 9/16", 5/8", 11/16", and 27/32" (12, 13.52, 16, 17.52, and 21.52 mm) Glass.
Product Warning
NOTE: CRL Roll Formed Cap Rails, End Caps, Corners, Connecting Sleeves and Rubber Inserts are style specific and cannot be used with any other CRL Cap Railing System.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
