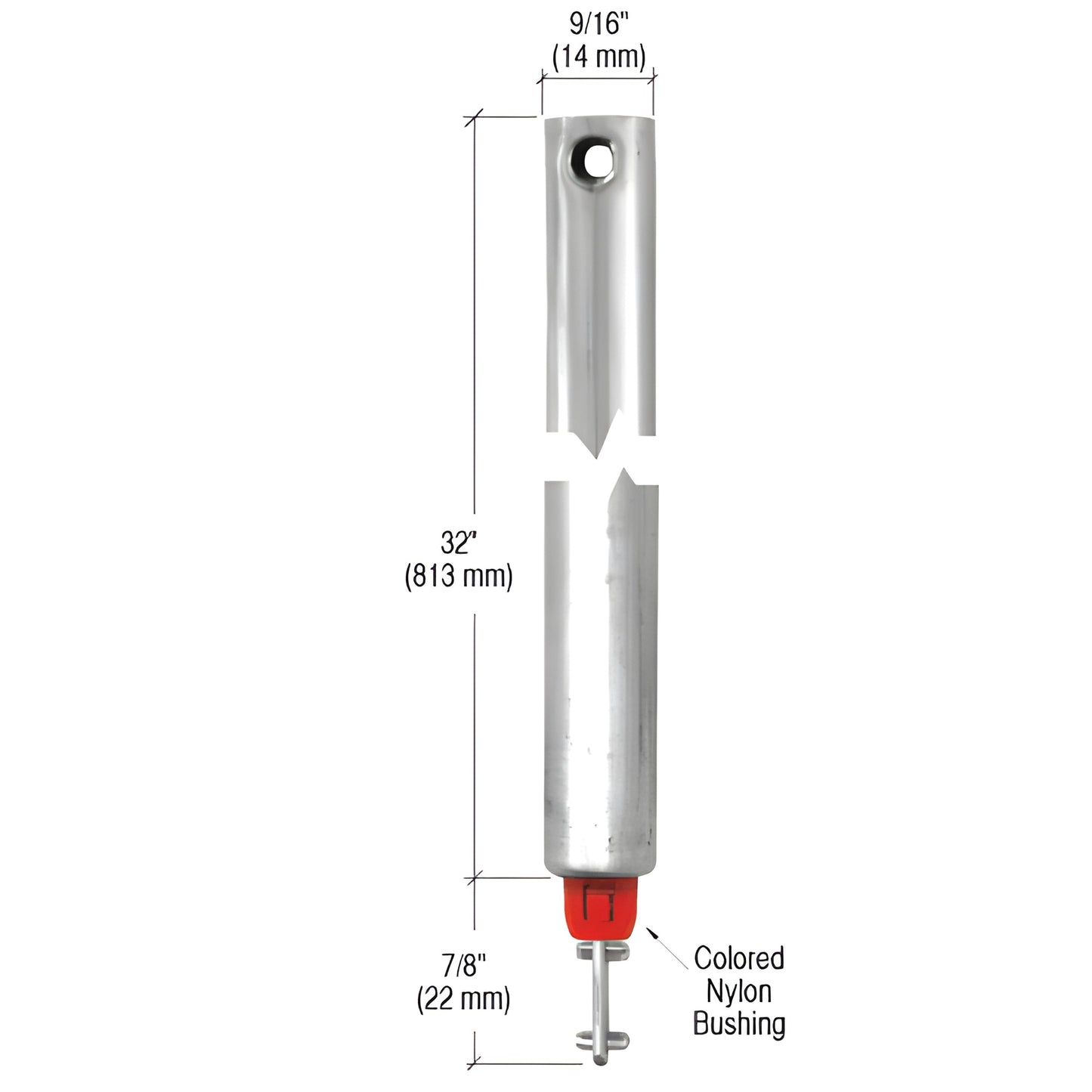

CRL 32 in Tubular Spiral Tilt Window Balance Replacement Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window balance with industry-standard 9/16" (14 mm) tube diameter
• Direct replacement for either metal or plastic tube balances

CRL Tubular Spiral Window Balance (SKU: FH3220) — Designed for tilt-type sash windows, this tubular spiral balance replaces metal or plastic tube balances with a sash load capacity up to 25 pounds (11.3 kg). It also replaces the same-size spiral balance with a white bushing. Balances are sold individually; we recommend replacing both balances in the window for even operation.

How to order tubular spiral window balances:

1. Check the tube diameter of the old metal or plastic tube (9/16" / 14 mm is industry standard).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (red for this model indicates up to 25 lb sash).
4. Verify the rod extension protruding from the nylon bushing matches your existing part.
5. Match tube diameter, tube length, and bushing color against the information shown next to the catalog number. If all match and the rod extension looks the same as the photo, this is the correct balance.

Why choose FH3220 tubular spiral balances? Durable CRL construction, clear red-bushing load indication, and compatibility with 9/16" tilt sash windows make FH3220 an easy replacement choice for maintenance and window restoration projects.

Order FH3220 tubular spiral window balance now — replace both balances for best results.
