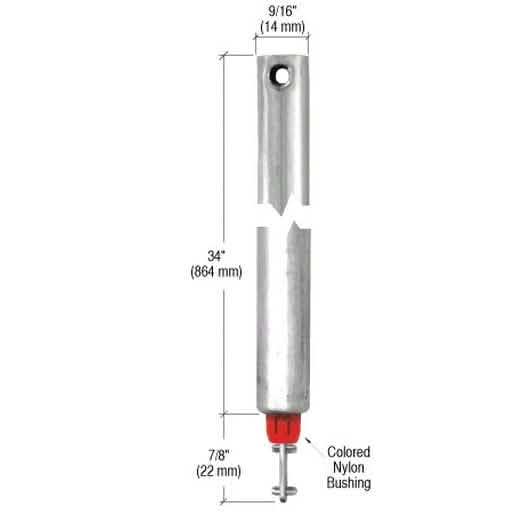

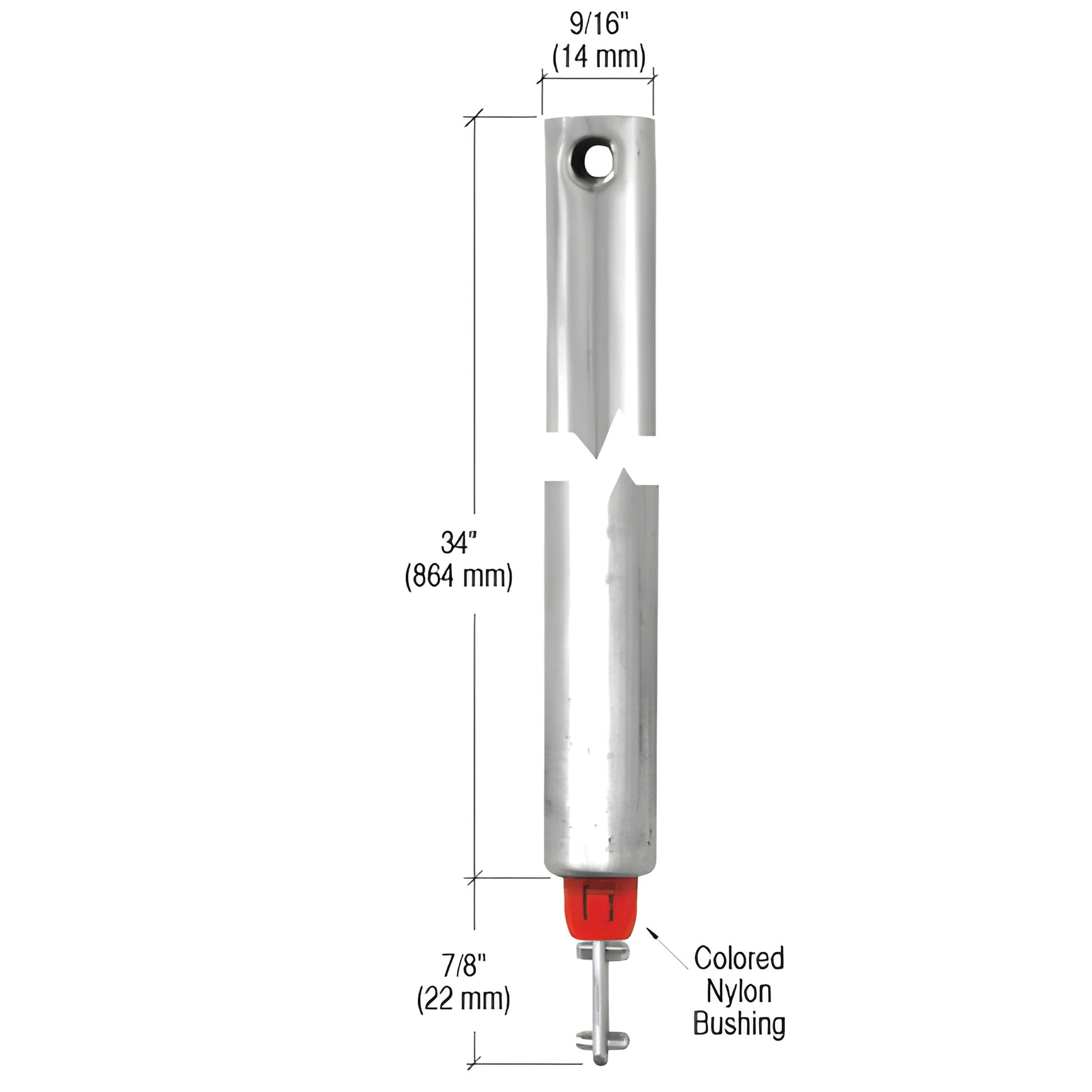

CRL 34" Spiral Tilt Window Balance Replacement - Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

These CRL Tubular Spiral Window Balances (SKU: FH3420) are designed for tilt-type windows and replace either metal or plastic tube balances. Red nylon bushing models support sash loads up to 25 lb (11.3 kg). Sold individually — we recommend replacing both balances in a window at the same time for smooth, even operation.

How to order tubular spiral window balances (measurements required):

1. Confirm tube diameter of the old balance (9/16" / 14 mm for this SKU).
2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing (red = up to 25 lb).
4. Verify the rod extension protruding from the nylon bushing matches your existing balance.
5. Match tube diameter, tube length, and bushing color to the specifications shown next to the catalog number. If all match and the rod extension is identical, FH3420 is the correct balance.

Buy CRL FH3420 tubular spiral window balance for tilt windows with 9/16" tube diameter and 25 lb sash capacity — order now to restore smooth window operation.
