Product Details
- Available in Three Convenient Pre-Cut Lengths
- Features Combination Bottom Track
- Satin Anodized and Brushed Nickel Finishes
The CRL Deluxe Track Assembly is smooth working, reliable, and attractive. It is available in three pre-cut, easy-to-install lengths. These 36", 48", and 72" (914 mm, 1.22 m, and 1.83 m) assemblies are the perfect solution for your custom project. Cut-to-length extrusions save you installation time and minimize material loss. The 'H' Bar is cut to permit a 1-1/2" (38 mm) overlap. The combination Lower Channel matches the design of the Upper Channel.
CRL Cat. No. D332 End Caps for 'H' Bar Extrusion can be purchased separately. For dry glazing with 1/4" (6 mm) glass use Cat. No. GC728C Vinyl (sold separately). CRL also has a large selection of Locks available to secure the sliding doors. CRL Ratchet and Plunger Type Locks are available.
NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).
General Glass Cutting Guidelines: Glass Height = Opening Height Minus 1-3/8" (35 mm).

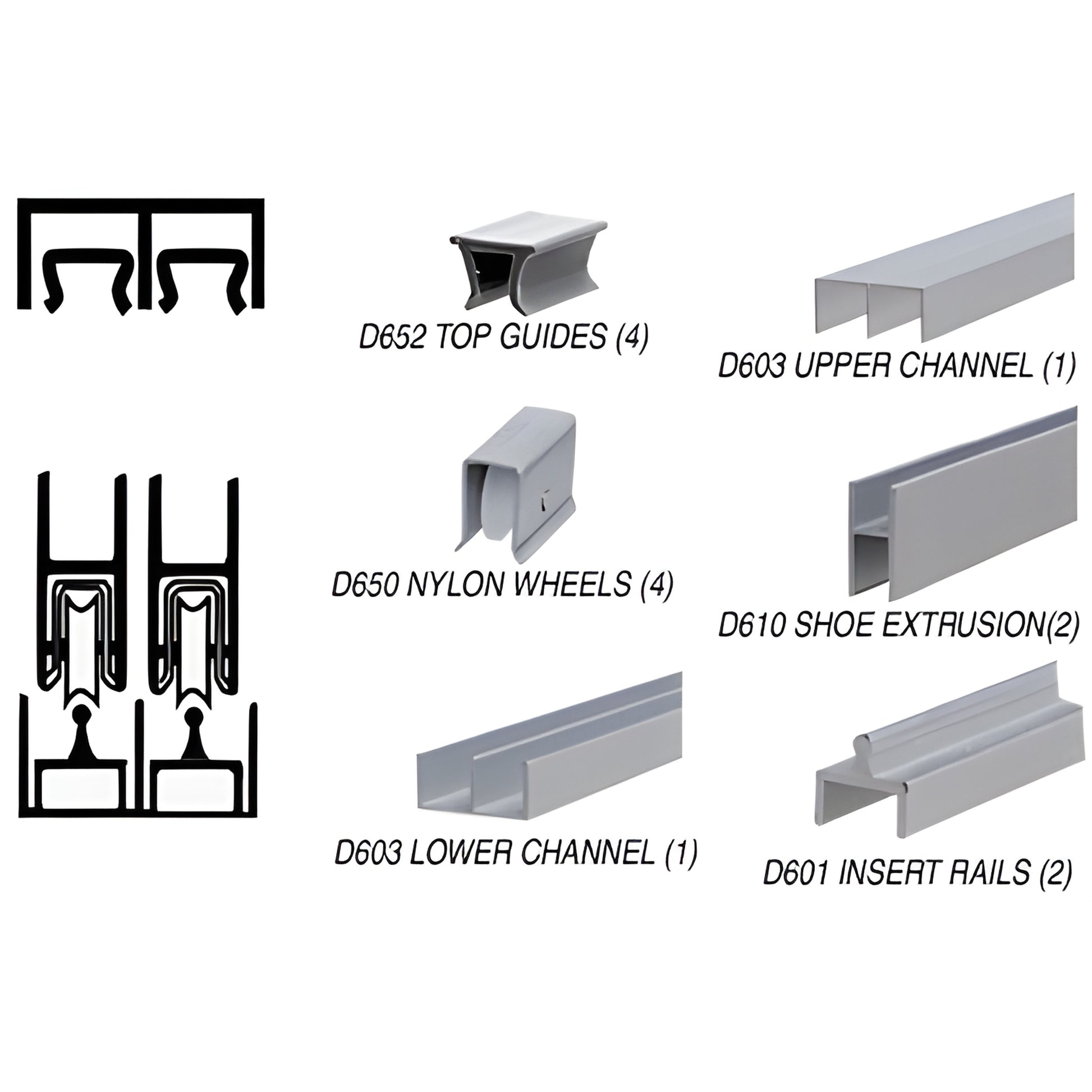

Components for D2301BN
D601 (x2)
D603 (x2)
D610 (x1)
D650 (x12)
D652 (x12)
D9650 (x1)
