Product Details
- Fixed Top Panel; Sliding Lower Panel
- For Light Duty Applications of 50 or Fewer Uses Per Day
- Available With or Without a Screen
- Available in Vertical and Horizontal Formats
- Available Pre-Glazed or Non-Glazed
- Each Unit is Customized to Fit Your Needs
- Drawings are Available Online

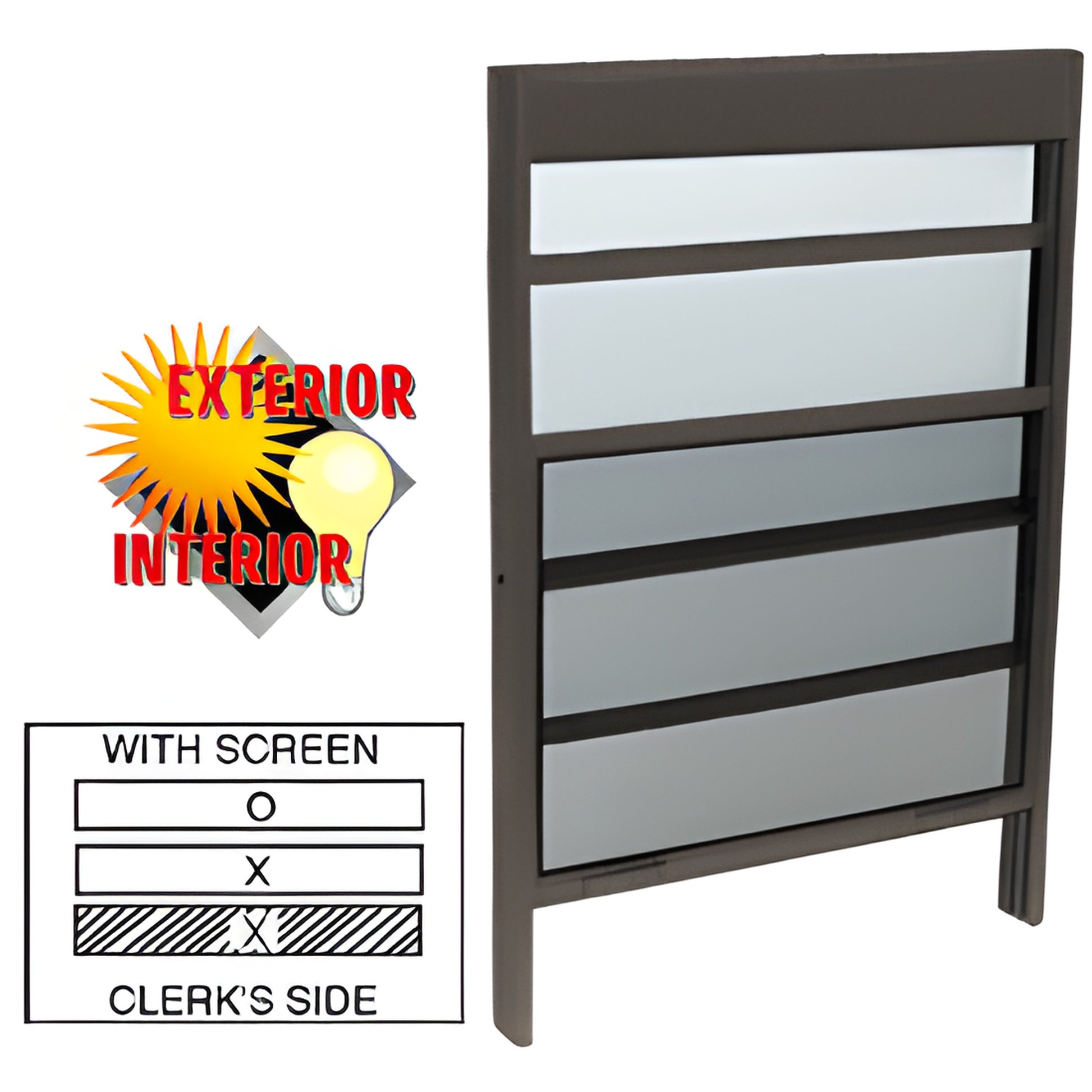

These CRL Vertical Sliding Service Windows have one lower sliding panel and one fixed upper panel. They are normally supplied with vinyl to accommodate 1/4" (6 mm) glazing materials, but some models can be ordered pre-glazed with 1/4" (6 mm) tempered glass. Some units are also available with a sliding screen. All windows are shipped assembled, ready for glazing and installation.
NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. An overhang or awning is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/4" (6 mm) Tempered Glass (On Some Models); Vinyl Supplied on All Models
Instructions Included
