Product Details
- Excellent temperature resistance (short term 450°F and long term 300°F)
- Can be bonded prior to powder coat or liquid painting processes
- Bonds to Many Substrates

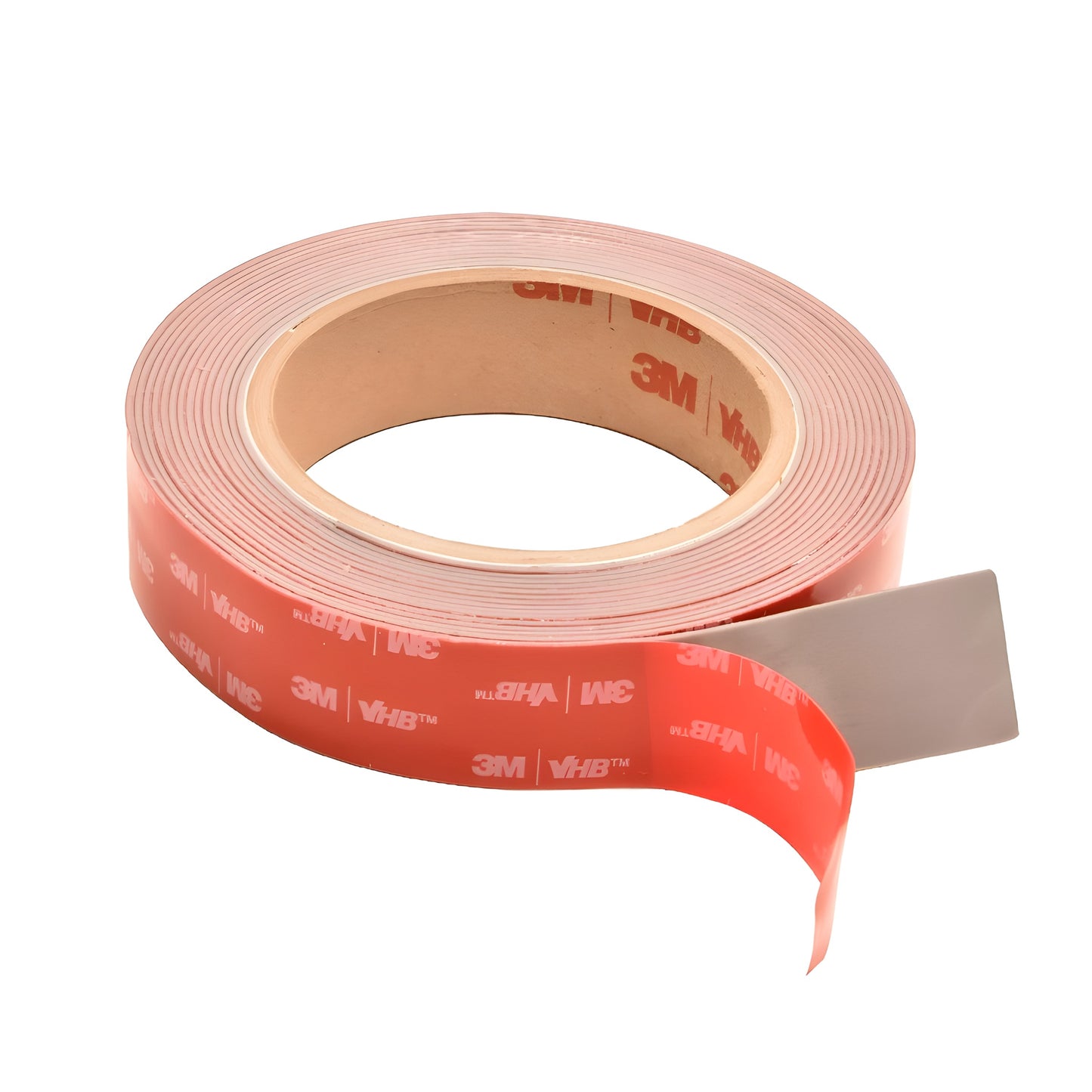

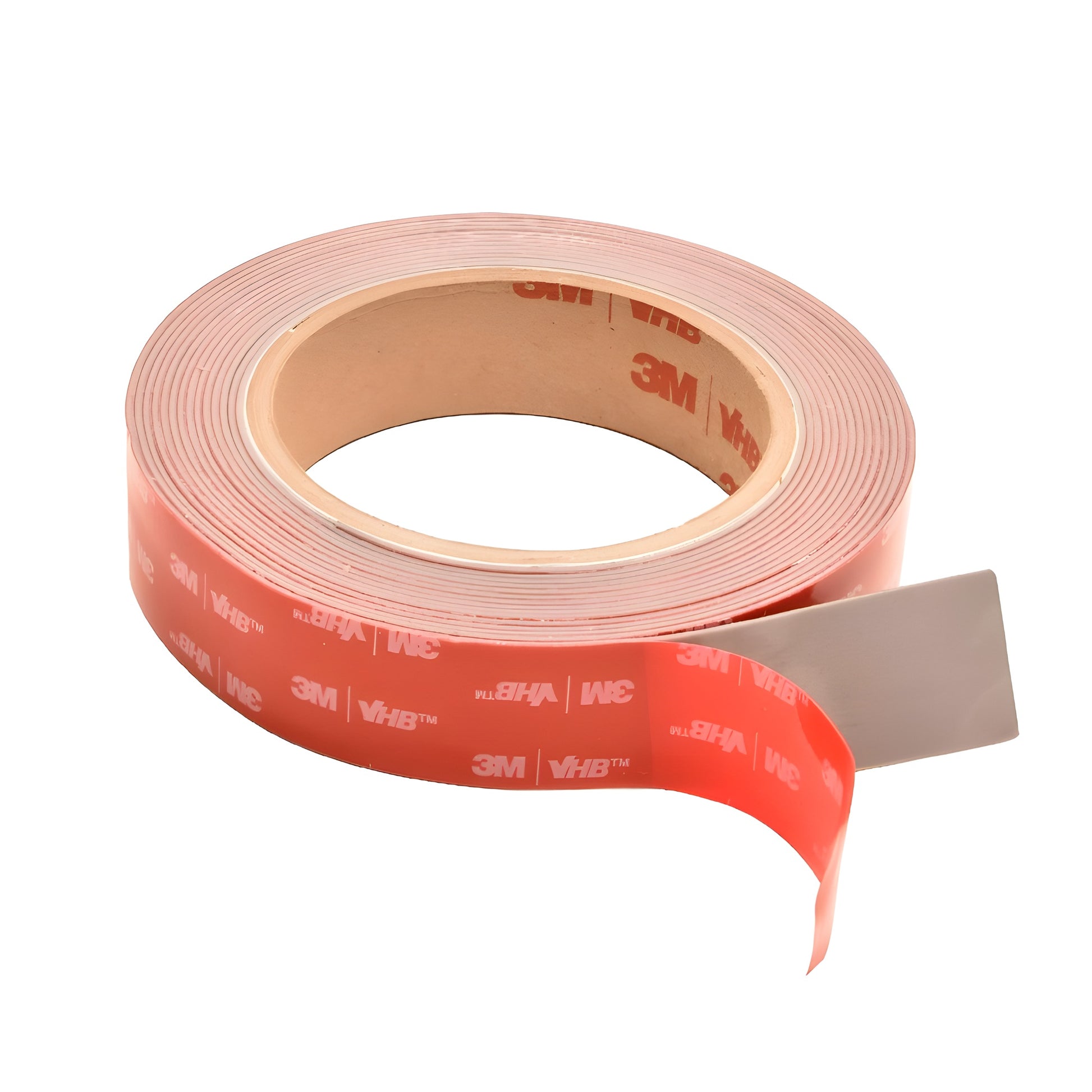

CRL 3M® VHB™ GPH Tape can replace mechanical fasteners such as rivets, spot welds, screws, and liquid adhesives in challenging, high temperature applications. VHB™ GPH Tape has successfully replaced all these and other fasteners in various manufacturing uses and is ideal for permanent bonding where high temperature tolerance is needed, including applications that undergo a powder coat or liquid painting process. It bonds to many substrates, and can be used for interior or exterior industrial applications. It applies neatly and easily, conforms to irregular surfaces, and offers good gap filling and stress relaxation. Good resistance to ultraviolet light, solvents and moisture.
A permanent bonding solution that can replace traditional mechanical fastenersand liquid adhesives in challenging, high temperature applications
SPECIFICATIONS
Foam: Closed Cell Acrylic
Release liner: PE FilmColor: Gray
Thickness: .045" (1.1 mm)Peel Adhesion to stainless steel: 21 lb./inch
Tensile Adhesion to aluminum: 95 psi
Dynamic Shear Adhesion to Stainless Steel: 105 psi
Static Shear Adhesion
At Room Temperature: Good 4.4 psi
Shelf Life: 3M™VHB™Tapeshave a shelf life of 24 months from date of manufacture when stored at 40°Fto 100°F(4°C to 38°C) and 0-95% relative humidity. The optimum storage conditions are 72°F (22°C) and 50% relative humidity.
