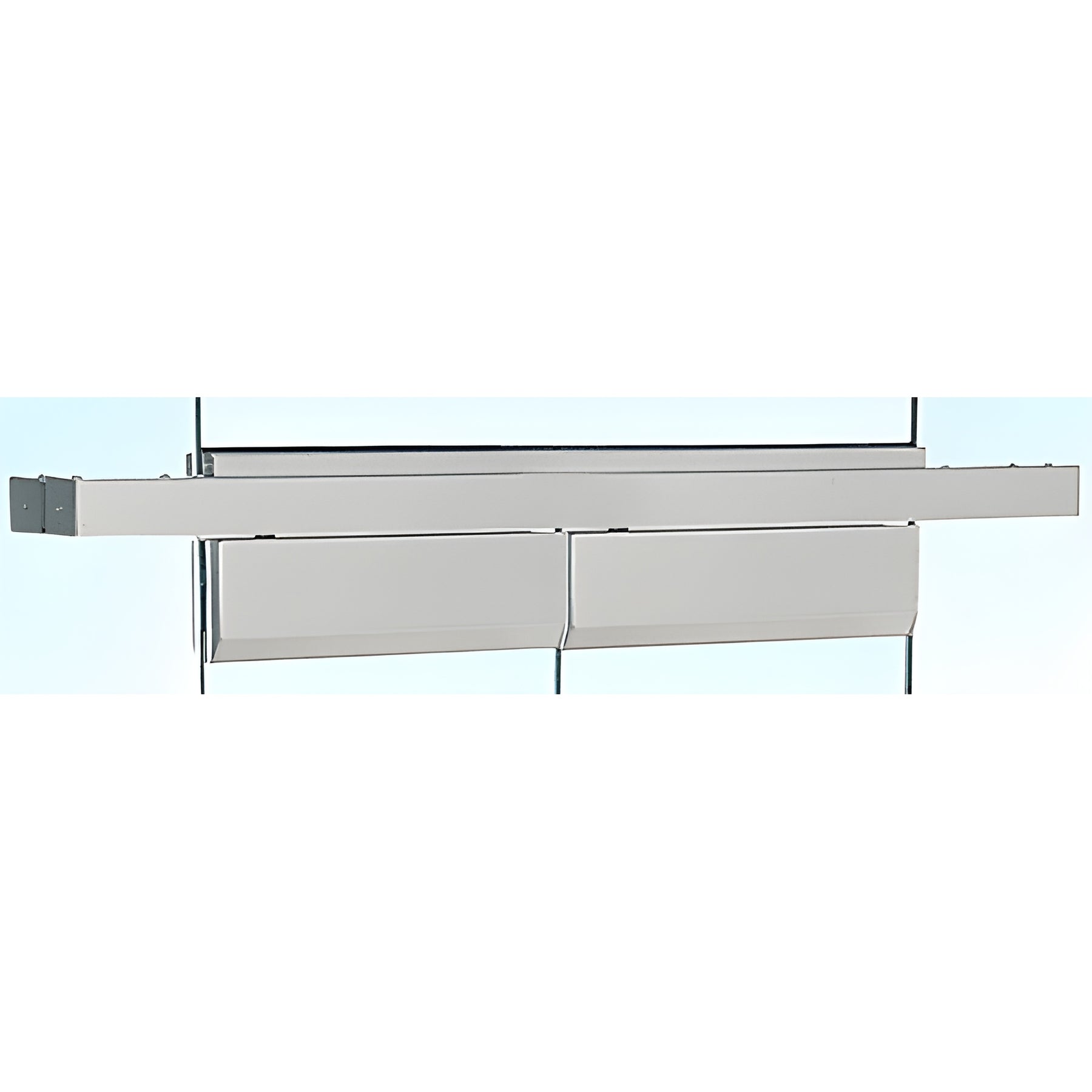

CRL 4-1/2 in Brushed Stainless Custom Double-Door Floating Header

• Ideal when cutting into the floor for a floor closer is not an option
• Fits 1/2" (12 mm) glass — for glass-to-glass or glass-to-wall installations, with or without overhead concealed door closers
• Stock headers: 36" (914 mm) single and 72" (1829 mm) double; custom lengths available
• Six standard finishes: Satin Anodized, Black Bronze Anodized, Black Powder Coat, Polished Stainless, Brushed Stainless, Polished Brass; custom finishes on special order

CRL Floating Header System (SKU: FHBSCD) — a versatile floating header for frameless glass doors and all-glass wall systems. Engineered for glass-to-glass and glass-to-wall openings, this header installs without floor cutting and works with or without an Overhead Concealed Door Closer. Available in multiple stock architectural finishes; contact CRL Technical Sales for custom finish options.

Product Warning:

STRUCTURAL DISCLAIMER - Customers must consult a structural engineer to confirm product suitability for specific site conditions. All installers must be qualified and knowledgeable about local, state, and federal regulations, safety factors, and correct fixing materials and procedures.

If the transom weight above the header exceeds 100 pounds (45.4 kg), the transom must be supported from the ceiling to prevent bowing and to remove load from the header. Options include Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Contact our Technical Sales Department for assistance.

Stainless Steel Advisory:

Need a custom length or finish? Contact CRL Technical Sales to get a quote and specify your frameless glass door project requirements.
