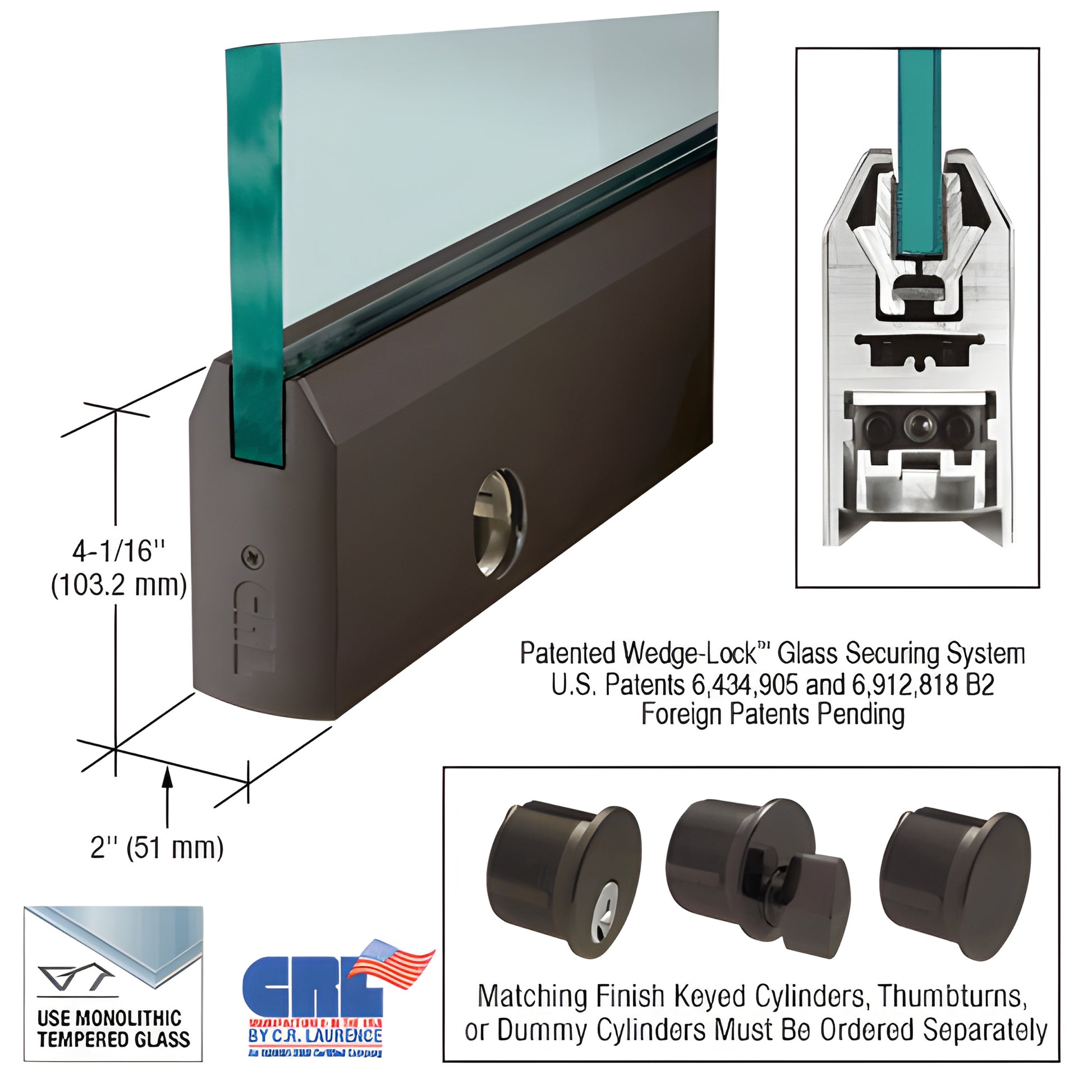

CRL 4" Glass Door Rail w/ Lock, Oil-Rubbed Bronze 1/2" Glass, Custom

• Custom Length for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

Our innovative glass entrance system, the CRL Wedge-Lock® Door Rail System (SKU: DR4T0RB12CL) features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This tempered glass door rail for 1/2" (12 mm) monolithic glass secures the glass by applying downward pressure with two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is drawn down with socket head cap bolts, angled extrusions engage an internal wedge groove to clamp the glass—creating over 900 lbs. of force in the 9" (228.6 mm) corner rail and proportionally more in full-length rails (35-3/4" / 908 mm).


NOTE: Actual Product Height: 4-1/16” (103 mm)

The Wedge-Lock® Glass Securing System delivers secure attachment plus the fastest installation time among door rail systems. Experienced installers can prepare a door for installation in under ten minutes. CRL Wedge-Lock® Door Rails arrive fully fabricated and ready-to-install with End Caps installed. Before hanging the door, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The Adjustable Door Alignment System lets you move the door 1/8" (3.2 mm) toward or away from the jamb without removing the door; this feature is standard on both top and bottom rails.

After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the adjustable slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile adjustable slide allows pivots with slotted grooves to be positioned other than the American Standard Setback of 2-3/4" (69.8 mm), enabling fabrication for vertically out-of-square openings.

Other reasons to choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing that resists shifting and stays in adjustment
• Internal components remain in place—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments

NOTE: All Wedge
