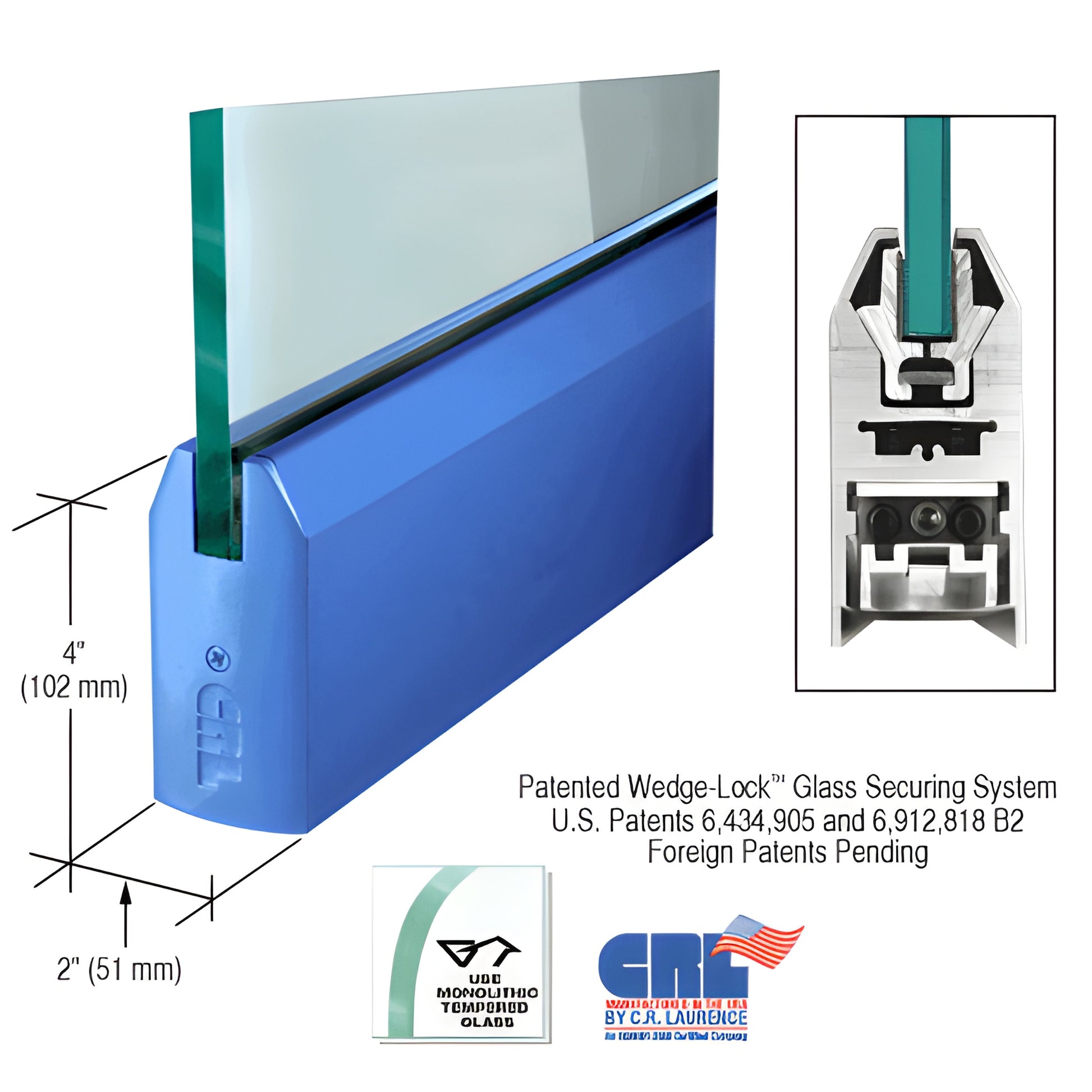

CRL 4" Tapered Door Rail for 1/2" Glass - Custom Color & Length, No Lock

• Custom length for 1/2" (12 mm) tempered glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (CRL)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR4TPT12C) features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Designed for commercial glass doors and framed storefronts, this door rail secures the glass by applying downward pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar tightened with socket head cap bolts. The angled extrusions engage an angled groove in the rail so the wedge action compresses the extrusions and gasket, producing very high clamping force for reliable glass retention in both corner and full-length rails.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast installation and consistent performance. Rails come fully fabricated with end caps installed and include an adjustable door alignment slide so installers can attach door arms or pivots (not included) and adjust the door 1/8" (3.2 mm) toward or away from the jamb without removing the door. Adjustment is accessible after installation by removing the end cap to reveal three socket head cap bolts: center bolt secures the slide; the two outer bolts provide the 1/8" in/out fine adjustment. The low-profile slide and slotted pivot grooves allow fabrication for vertically out-of-square openings and non-standard setbacks.

Key differentiators:

• Patented Wedge-Lock® wedge-action clamping for exceptional glass retention
• Fast installation—experienced installers can prepare a door in under 10 minutes
• Rigid single-component housing that resists shifting and long-term drift
• Internal components remain assembled for simpler install; glass pads engineered for longevity in extreme environments
• Adjustable door alignment slide standard on top and bottom rails

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements.

CRL Wedge-Lock® Door Rails are available in several standard finishes; custom finishes and widths can be quoted on request. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.
