CRL 48" Brushed Nickel Sliding Door Track D603/D602 Nylon Wheels

• Available in three convenient pre-cut lengths
• Satin anodized and brushed nickel finishes

These smooth-operating track assemblies provide years of reliable service. CRL's Low Profile Track Assembly (SKU D2203BN48), offered in three popular pre-cut lengths, minimizes material waste and is ideal for pass-thru and bypassing glass doors. Long-tail keywords: low profile track assembly for bypassing glass doors, pre-cut sliding glass door track, satin anodized glass track system.

All components are packed in a convenient shipping tube for easy installation. The two-piece "H" bar for bypassing doors has a 1-1/2" (38 mm) overlap. CRL Cat. No. D332 end caps for the "H" bar and GC728C vinyl for dry glazing with 1/4" (6 mm) glass are available separately. For added security, choose from CRL's ratchet and plunger type locks.

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

General Glass Cutting: Glass Height = Opening Height minus 1-1/8" (28.6 mm).

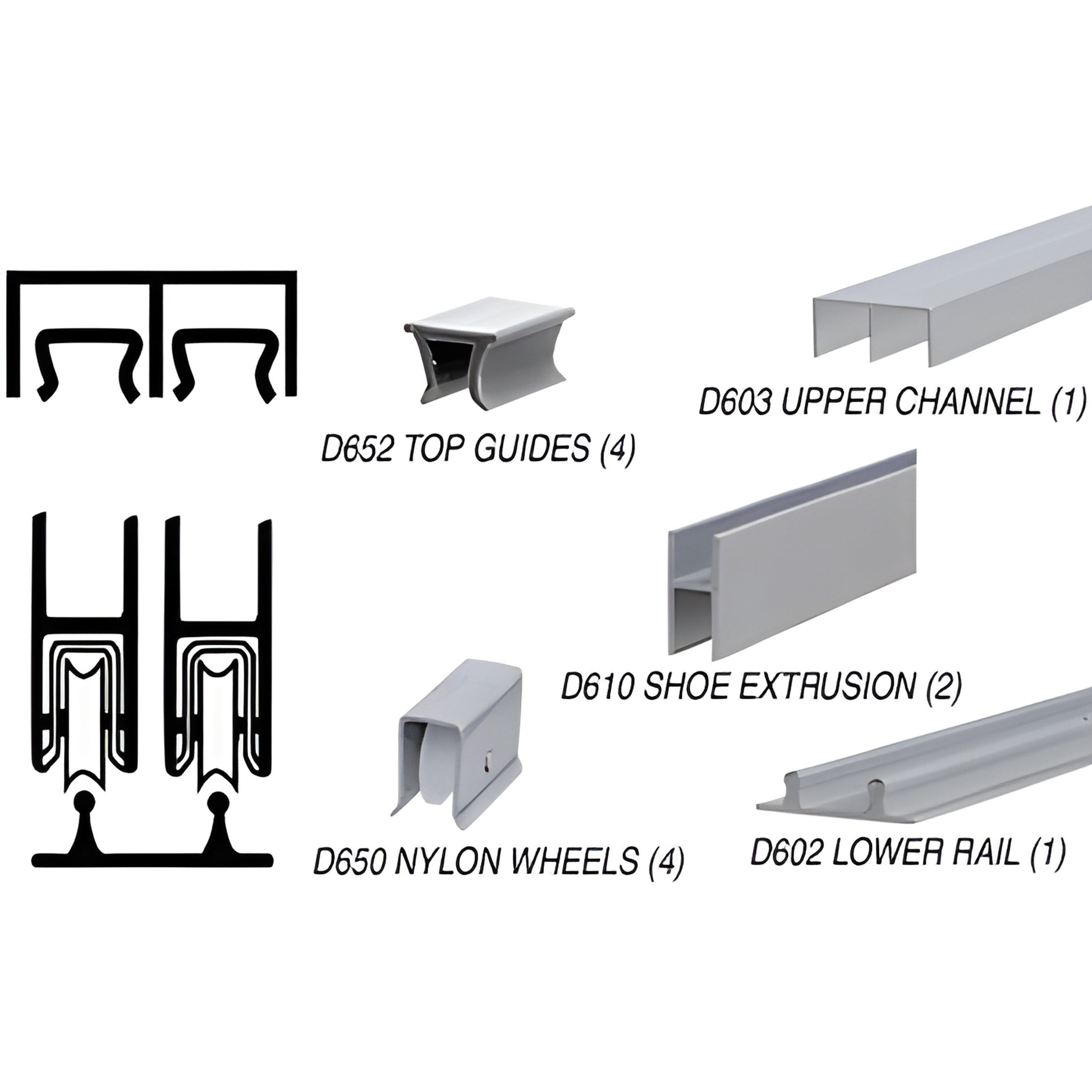

Components for D2203BN

D602 (x1)
D603 (x1)
D650 (x12)
D610 (x1)
D652 (x12)
D9650 (x1)

Product Warning:

If you require a very tight fit, verify your own final dimensions—these guidelines satisfy most installers.

D2203 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-1/8"
D2204 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-1/8"
D2300 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2301 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2303 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2305 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-3/8"
D2306 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-5/8"
D2307 Series = Rolling Track Assembly: Glass Height = Opening Minus 1-5/8"
