CRL
CRL 48-in Metallic Silver Heavy-Duty Glass Windscreen Post Kit
CRL 48-in Metallic Silver Heavy-Duty Glass Windscreen Post Kit
Regular price
$400.60 CAD
Regular price
Sale price
$400.60 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD48CKS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Depth
13/16 in. (21 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
48 in. (1219 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- SKU: HD48CKS

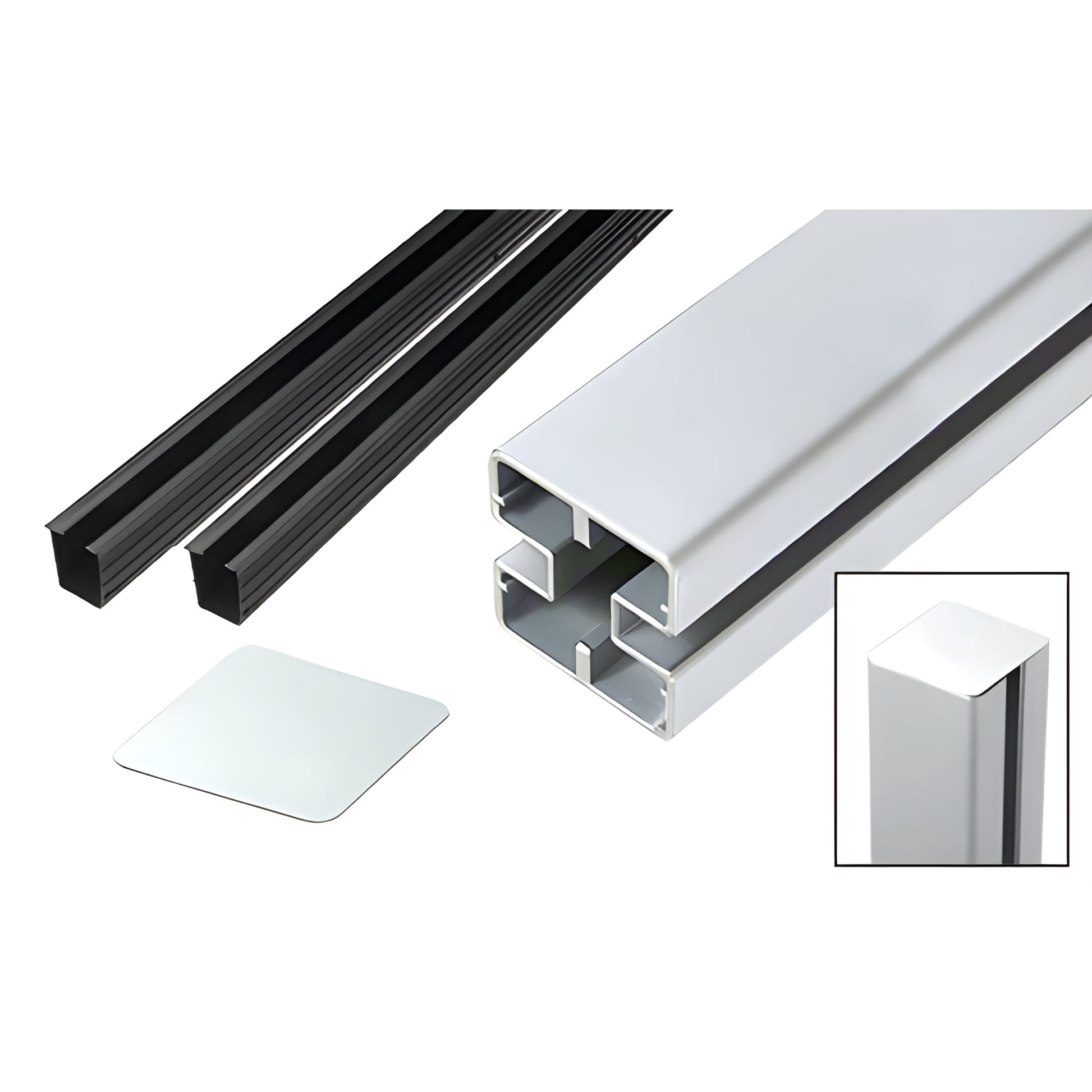

- Available as Posts Only or Kits Containing Post, Flat Top Cap, and Glazing Vinyl
- Seven Standard Colors plus Mill Aluminum; Custom Colors Available Upon Request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry-glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass when wet-glazed with structural silicone
- Kits include everything needed to assemble heavy-duty glass railing posts and glass balustrade posts
These kits fabricate heavy-duty posts for end-of-barrier applications or to join two panels at 180°. Designed for commercial and residential glass railing systems, the HD48CKS supports dry-glazed and wet-glazed tempered glass panels with clear installation options for vinyl or structural silicone glazing.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Need a quote or custom color? Contact CRL Customer Service to order HD48CKS kits or request color and shipping details.
Specifications
CAD Drawings - pdf
