CRL 48 in Metallic Silver Heavy-Duty Windscreen Replacement Post
CRL 48 in Metallic Silver Heavy-Duty Windscreen Replacement Post
Regular price
$317.45 CAD
Regular price
Sale price
$317.45 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD48S
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

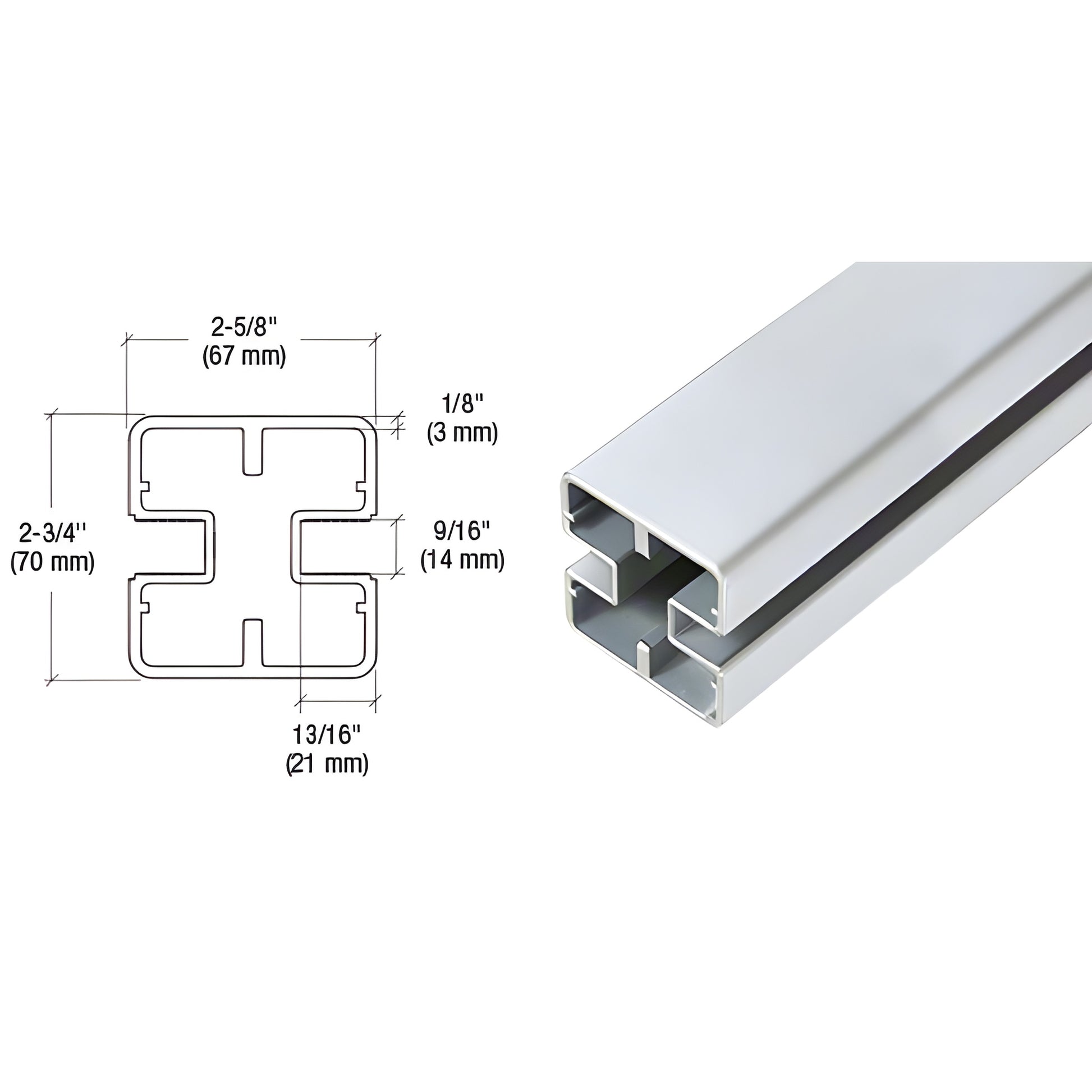

Description
Depth
13/16 in. (21 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
48 in. (1219 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as Posts Only or Kits (Post, Flat Top Cap, and Glazing Vinyl)
- Seven Standard Colors plus Mill Aluminum; Custom Colors Available on Request
- Accommodates 1/4" to 3/8" (6–10 mm) Glass Dry-Glazed with Vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) Glass Wet-Glazed with Structural Silicone
- Kits Come Complete with Post, Flat Top Cap, and Glazing Vinyl
HD Posts (SKU: HD48S) are heavy-duty glass railing posts designed for end-of-barrier applications or to join two panels at 180°. Engineered for both dry and wet glazing, these posts accept thin 1/4"–3/8" panels with glazing vinyl and thicker 1/2"–9/16" panels with structural silicone. Choose from seven standard finishes plus mill aluminum, or request a custom color to match your project.
Performance limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable or returnable.
Order HD48S heavy-duty glass posts and complete kits today to streamline installation and secure glass railing panels—contact sales for custom color quotes.
Specifications
CAD Drawings - pdf
